AE95L-CWMNKW (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

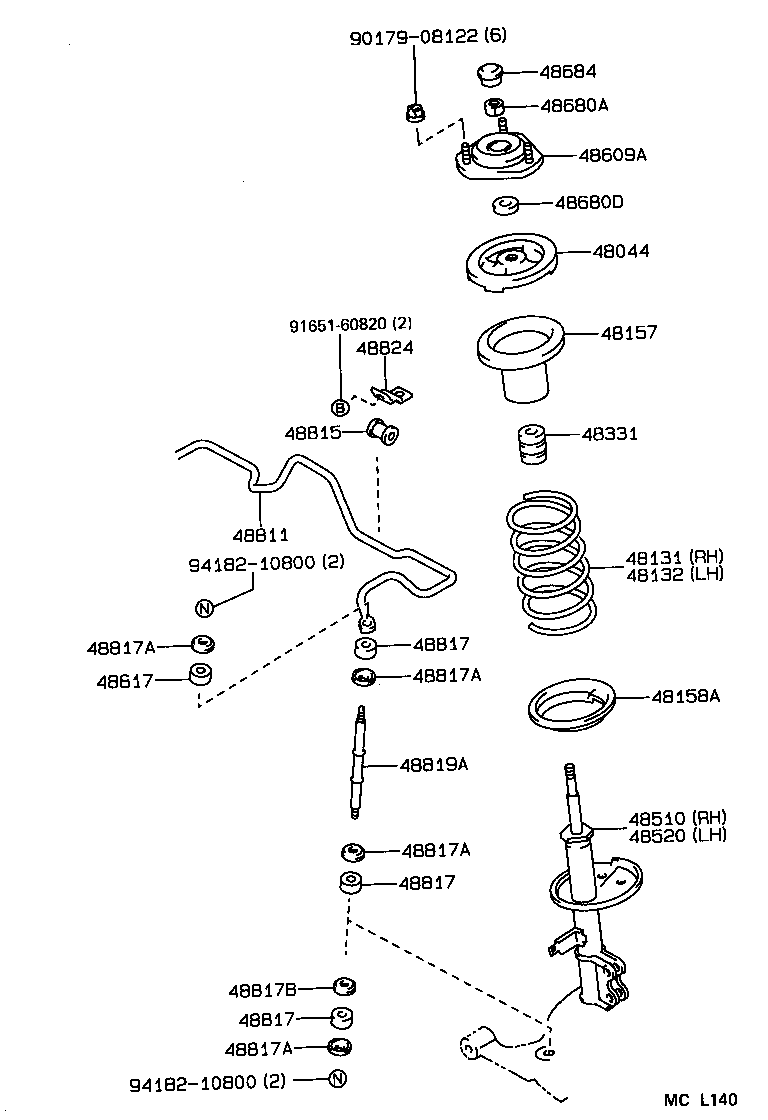

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-12090 |
AE95 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1H800 |
AE95..LHD |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1H780 |
AE95..LHD |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-12060 |
AE95 |
2 | ||
| 48158A - INSULATOR, FRONT COIL SPRING, LOWER | ||||
| 48158-12030 |
AE95 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-12130 |
AE95 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-12651 |
AE95 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-12521 |
AE95 |
1 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-12192 |
AE95 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AE95 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AE95 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-32010 |
AE95 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12690 |
AE95 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-12180 |
AE95 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
AE95 |
2 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-20030 |
AE95 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-12090 |
AE95 |
2 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 91651-60820 | ||||
| 94182-10800 | ||||
(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-12090 |
AE95 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1H800 |
AE95..LHD |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1H780 |
AE95..LHD |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-12060 |
AE95 |
2 | ||
| 48158A - INSULATOR, FRONT COIL SPRING, LOWER | ||||
| 48158-12030 |
AE95 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-12130 |
AE95 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-12651 |
AE95 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-12521 |
AE95 |
1 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-12192 |
AE95 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AE95 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AE95 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-32010 |
AE95 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12690 |
AE95 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-12180 |
AE95 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE95 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
AE95 |
2 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-20030 |
AE95 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-12090 |
AE95 |
2 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 91651-60820 | ||||
| 94182-10800 | ||||
