AE95L-CWMNKW (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

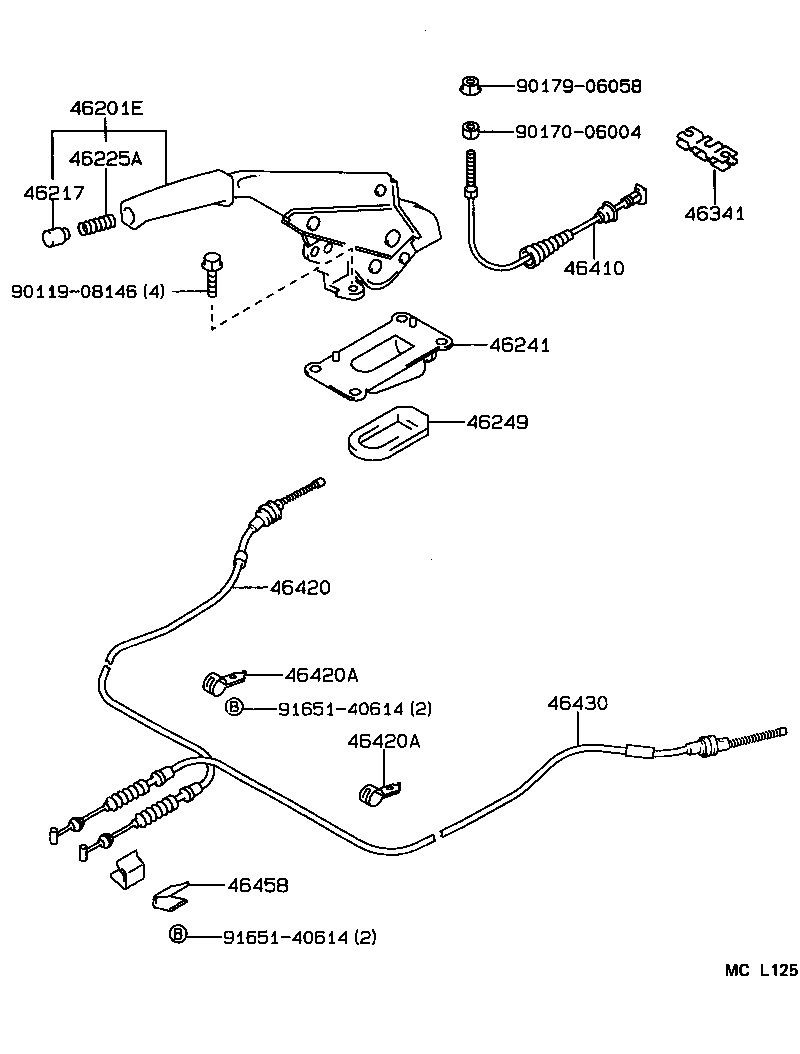

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-1211103 |
AE95..GL,GLI SHADOW GRAY,TRIM1# |
1 | ||
| 46201-12111J0 |
AE95..GL,GLI DARK BLUE,TRIM8# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020J0 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
AE95 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12080 |
AE95 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
AE95 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-32010 |
AE95 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12190 |
AE95 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12371 |
AE95 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01479 |
AE95 RH |
1 | ||
| 90461-12121 |
AE95 LH |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01479 |
AE95 RH |
1 | ||
| 90461-12121 |
AE95 LH |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12271 |
AE95 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
AE95 |
2 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91651-40614 | ||||
(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-1211103 |
AE95..GL,GLI SHADOW GRAY,TRIM1# |
1 | ||
| 46201-12111J0 |
AE95..GL,GLI DARK BLUE,TRIM8# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020J0 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
AE95 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-12080 |
AE95 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
AE95 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-32010 |
AE95 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12190 |
AE95 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12371 |
AE95 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01479 |
AE95 RH |
1 | ||
| 90461-12121 |
AE95 LH |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01479 |
AE95 RH |
1 | ||
| 90461-12121 |
AE95 LH |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12271 |
AE95 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
AE95 |
2 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91651-40614 | ||||
