AE95L-CWMNKW (1990)
Toyota Corolla Wagon

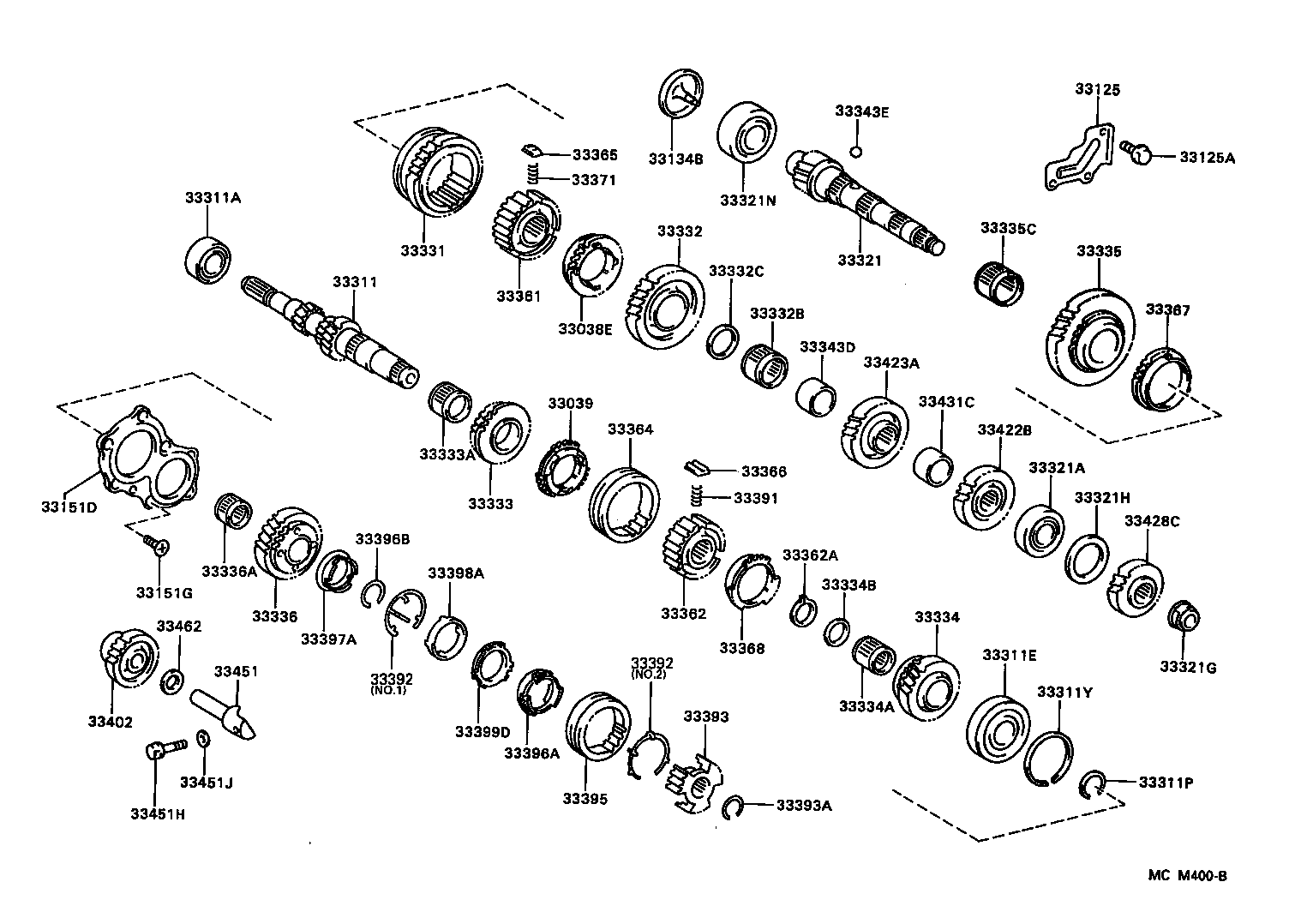

(9109- )5F
E57F5
| Part # | Description | Qty | Price |
|---|

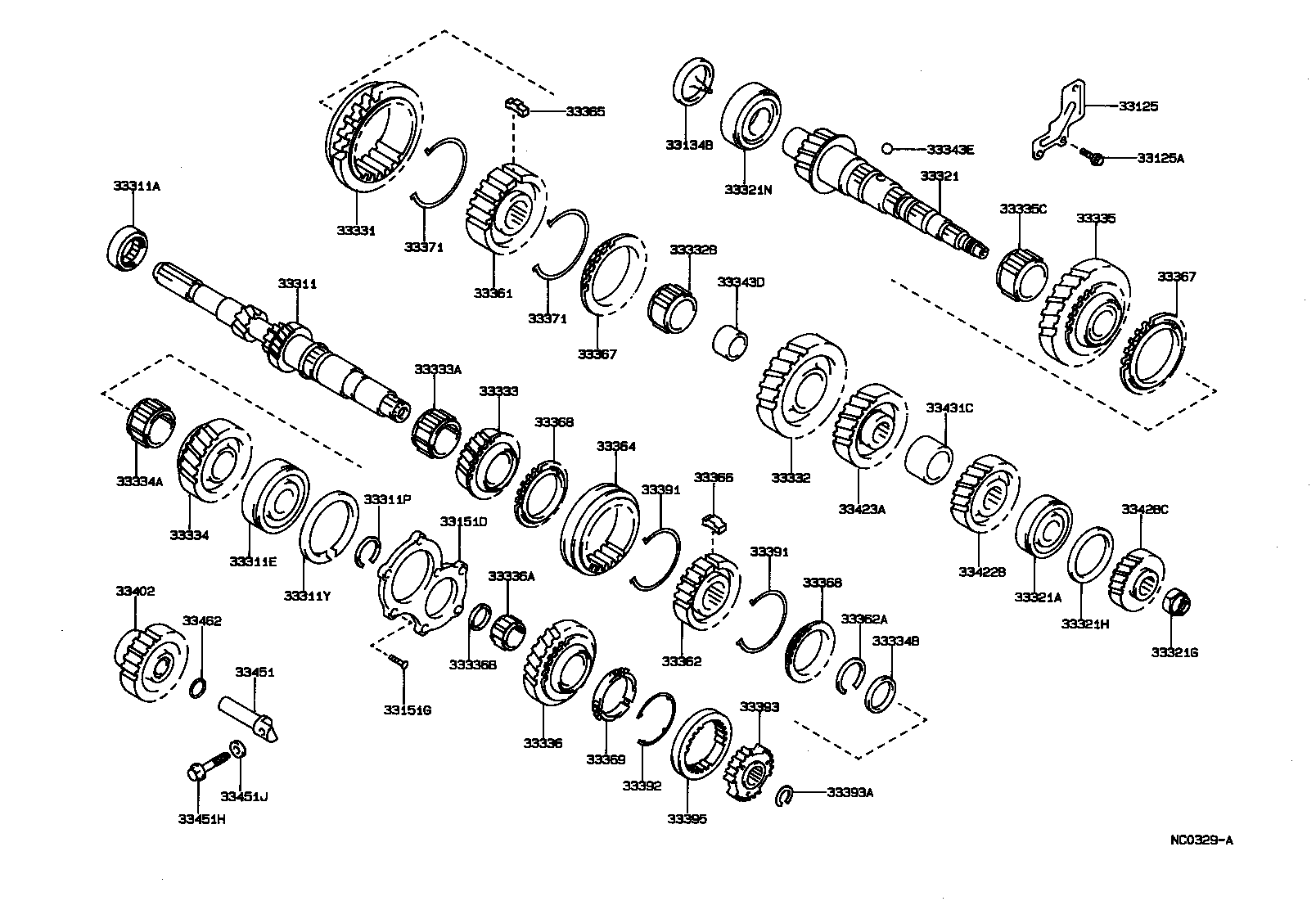

(9009-9109)5F
E57F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-20010 |
AE95 |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
AE95 |
3 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20010 |
AE95 |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12031 |
AE95 |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80029 |
AE95 |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12090 |
AE95 |
1 | ||
| 33311-13010 |
AE95 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
AE95 |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
AE95 |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-30009 |
AE95 T=2.40-2.45,MARK 2 |
1 | ||
| 90520-30022 |
AE95 T=2.70-2.74,MARK 8 |
1 | ||
| 90520-30011 |
AE95 T=2.50-2.55,MARK 4 |
1 | ||
| 90520-30012 |
AE95 T=2.55-2.60,MARK 5 |
1 | ||
| 90520-30010 |
AE95 T=2.45-2.50,MARK 3 |
1 | ||
| 90520-30013 |
AE95 T=2.60-2.65,MARK 6 |
1 | ||
| 90520-30008 |
AE95 T=2.35-2.40,MARK 1 |
1 | ||
| 90520-30021 |
AE95 T=2.65-2.69,MARK 7 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
AE95 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-13010 |
AE95 |
1 | ||
| 33302-12020 |
AE95 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28002 |
AE95 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20012 |
AE95 |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-59007 |
AE95 T=1.60,MARK 6 |
1 | ||
| 90564-59006 |
AE95 T=1.55,MARK 5 |
1 | ||
| 90564-59005 |
AE95 T=1.50,MARK 4 |
1 | ||
| 90564-59001 |
AE95 T=1.30,MARK 0 |
1 | ||
| 90564-59002 |
AE95 T=1.35,MARK 1 |
1 | ||
| 90564-59012 |
AE95 T=1.85,MARK B |
1 | ||
| 90564-59003 |
AE95 T=1.40,MARK 2 |
1 | ||
| 90564-59008 |
AE95 T=1.65,MARK 7 |
1 | ||
| 90564-59010 |
AE95 T=1.75,MARK 9 |
1 | ||
| 90564-59018 |
AE95 T=2.15,MARK H |
1 | ||
| 90564-59014 |
AE95 T=1.95,MARK D |
1 | ||
| 90564-59004 |
AE95 T=1.45,MARK 3 |
1 | ||
| 90564-59016 |
AE95 T=2.05,MARK F |
1 | ||
| 90564-59017 |
AE95 T=2.10,MARK G |
1 | ||
| 90564-59009 |
AE95 T=1.70,MARK 8 |
1 | ||
| 90564-59024 |
AE95 T=2.45,MARK P |
1 | ||
| 90564-59020 |
AE95 T=2.25,MARK K |
1 | ||
| 90564-59013 |
AE95 T=1.90,MARK C |
1 | ||
| 90564-59019 |
AE95 T=2.20,MARK J |
1 | ||
| 90564-59015 |
AE95 T=2.00,MARK E |
1 | ||
| 90564-59023 |
AE95 T=2.40,MARK N |
1 | ||
| 90564-59011 |
AE95 T=1.80,MARK A |
1 | ||
| 90564-59025 |
AE95 T=2.50,MARK Q |
1 | ||
| 90564-59021 |
AE95 T=2.30,MARK L |
1 | ||
| 90564-59022 |
AE95 T=2.35,MARK M |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32016 |
AE95 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12041 |
AE95 |
1 | ||
| 33331-12040 |
AE95 |
1 | ||
| 33331-12030 |
AE95 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-12040 |
AE95 |
1 | ||
| 33332-12071 |
AE95 |
1 | ||
| 33332-12072 |
AE95 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44001 |
AE95 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12070 |
AE95 |
1 | ||
| 33034-12061 |
AE95 |
1 | ||
| 33034-12060 |
AE95 |
1 | ||
| 33034-12071 |
AE95 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-36011 |
AE95 |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-13011 |
AE95 |
1 | ||
| 33035-12040 |
AE95 |
1 | ||
| 33035-12041 |
AE95 |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-36014 |
AE95 |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
AE95 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-12040 |
AE95 |
1 | ||
| 33335-13010 |
AE95 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45007 |
AE95 |
1 | ||
| 90364-45004 |
AE95 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12060 |
AE95 |
1 | ||
| 33036-12031 |
AE95 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-33007 |
AE95 |
1 | ||
| 90364-28013 |
AE95 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-33004 |
AE95 |
1 | ||
| 33343D - BUSH, 2ND GEAR | ||||
| 33343-12020 |
AE95 |
1 | ||
| 33343-12010 |
AE95 |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
AE95 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12051 |
AE95 |
1 | ||
| 33361-12040 |
AE95 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12030 |
AE95 |
1 | ||
| 33362-20021 |
AE95 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34006 |
AE95 T=2.45-2.50,MARK L |
1 | ||
| 90520-34004 |
AE95 T=2.35-2.40,MARK J |
1 | ||
| 90520-34003 |
AE95 T=2.30-2.35,MARK H |
1 | ||
| 90520-34008 |
AE95 T=2.55-2.60,MARK N |
1 | ||
| 90520-34005 |
AE95 T=2.40-2.45,MARK K |
1 | ||
| 90520-34007 |
AE95 T=2.50-2.55,MARK M |
1 | ||
| 90520-34009 |
AE95 T=2.60-2.65,MARK P |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12021 |
AE95 |
1 | ||
| 33364-12020 |
AE95 |
1 | ||
| 33364-20024 |
AE95 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12040 |
AE95 |
3 | ||
| 33365-12030 |
AE95 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12030 |
AE95 |
3 | ||
| 33366-20021 |
AE95 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12040 |
AE95 |
1 | ||
| 33367-20040 |
AE95 1ST GEAR SIDE |
1 | ||
| 33367-20050 |
AE95 2ND GEAR SIDE |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12040 |
AE95 |
1 | ||
| 33367-20040 |
AE95 1ST GEAR SIDE |
1 | ||
| 33367-20050 |
AE95 2ND GEAR SIDE |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
AE95 |
2 | ||
| 33368-12041 |
AE95 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
AE95 |
2 | ||
| 33368-12041 |
AE95 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20010 |
AE95 |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 90501-08112 |
AE95 |
3 | ||
| 33371-20020 |
AE95 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 90501-08112 |
AE95 |
3 | ||
| 33371-20020 |
AE95 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
AE95 |
2 | ||
| 90501-08131 |
AE95 |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
AE95 |
2 | ||
| 90501-08131 |
AE95 |
3 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12020 |
AE95 NO.2 |
1 | ||
| 33392-20010 |
AE95 |
1 | ||
| 33392-12010 |
AE95 NO.1 |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20020 |
AE95 |
1 | ||
| 33393-12021 |
AE95 |
1 | ||
| 33393-12020 |
AE95 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-27040 |
AE95 T=2.40-2.45,MARK T |
1 | ||
| 90520-27042 |
AE95 T=2.50-2.55,MARK V |
1 | ||
| 90520-27038 |
AE95 T=2.30-2.35,MARK R |
1 | ||
| 90520-27039 |
AE95 T=2.35-2.40,MARK S |
1 | ||
| 90520-27045 |
AE95 T=2.65-2.70,MARK Y |
1 | ||
| 90520-27044 |
AE95 T=2.60-2.65,MARK X |
1 | ||
| 90520-27037 |
AE95 T=2.25-2.30,MARK Q |
1 | ||
| 90520-27043 |
AE95 T=2.55-2.60,MARK W |
1 | ||
| 90520-27064 |
AE95 T=1.90-1.95,MARK D |
1 | ||
| 90520-27069 |
AE95 T=2.15-2.20,MARK J |
1 | ||
| 90520-27061 |
AE95 T=1.75-1.80,MARK A |
1 | ||
| 90520-27065 |
AE95 T=1.95-2.00,MARK E |
1 | ||
| 90520-27067 |
AE95 T=2.05-2.10,MARK G |
1 | ||
| 90520-27041 |
AE95 T=2.45-2.50,MARK U |
1 | ||
| 90520-27062 |
AE95 T=1.80-1.85,MARK B |
1 | ||
| 90520-27068 |
AE95 T=2.10-2.15,MARK H |
1 | ||
| 90520-27066 |
AE95 T=2.00-2.05,MARK F |
1 | ||
| 90520-27063 |
AE95 T=1.85-1.90,MARK C |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20020 |
AE95 |
1 | ||
| 33395-12020 |
AE95 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12031 |
AE95 |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12040 |
AE95 |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12030 |
AE95 |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12030 |
AE95 |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20080 |
AE95 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12032 |
AE95 |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
AE95 |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AE95 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20050 |
AE95 |
1 | ||

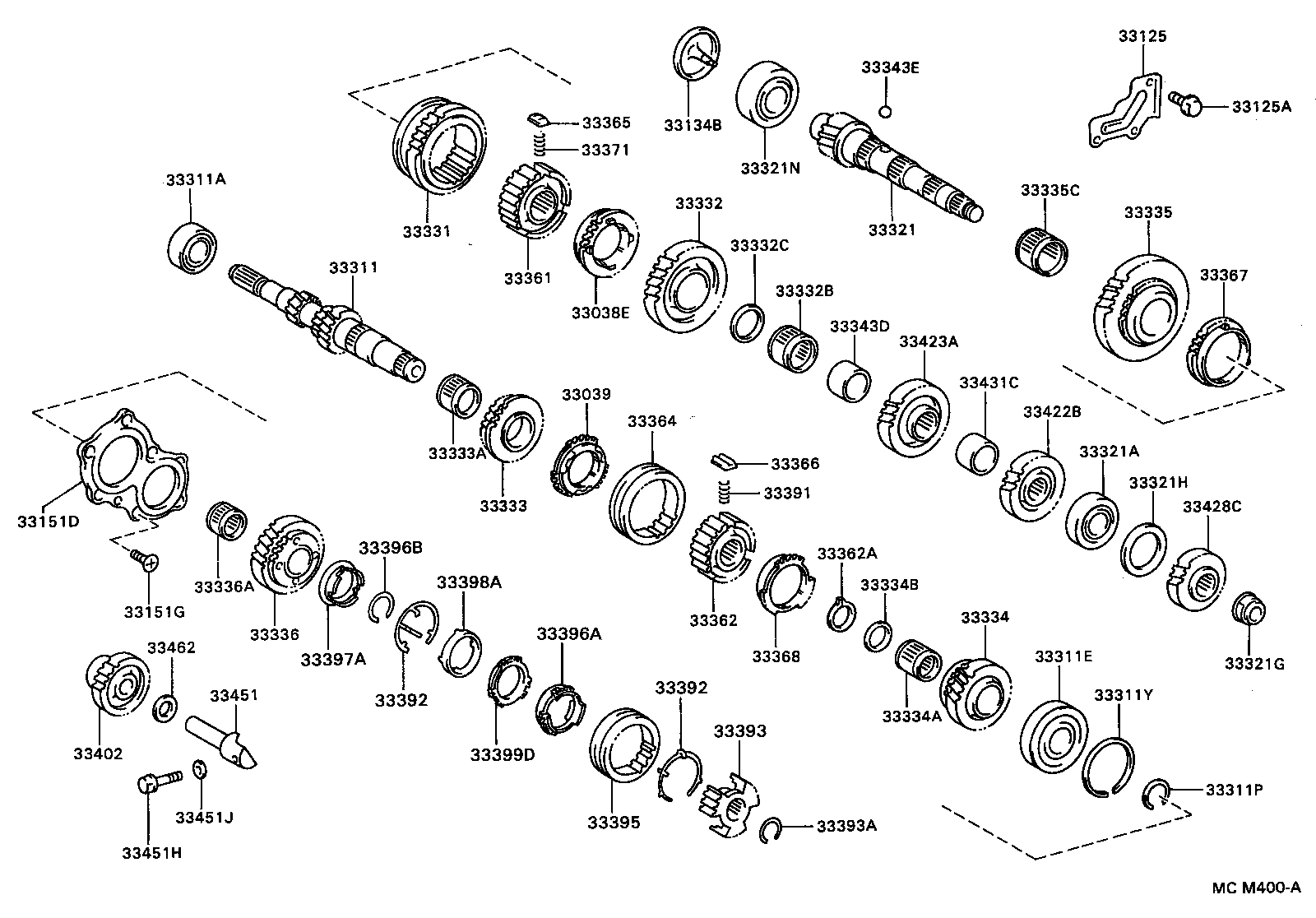

(9109- )
E57F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-12012 |
AE95 |
1 | ||
| 33038-12011 |
AE95 |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33039-12011 |
AE95 |
1 | ||
| 33039-12010 |
AE95 |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-20010 |
AE95 |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
AE95 |
3 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20010 |
AE95 |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12031 |
AE95 |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80029 |
AE95 |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12090 |
AE95 |
1 | ||
| 33311-13010 |
AE95 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
AE95 |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
AE95 |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-30009 |
AE95 T=2.40-2.45,MARK 2 |
1 | ||
| 90520-30022 |
AE95 T=2.70-2.74,MARK 8 |
1 | ||
| 90520-30011 |
AE95 T=2.50-2.55,MARK 4 |
1 | ||
| 90520-30012 |
AE95 T=2.55-2.60,MARK 5 |
1 | ||
| 90520-30010 |
AE95 T=2.45-2.50,MARK 3 |
1 | ||
| 90520-30013 |
AE95 T=2.60-2.65,MARK 6 |
1 | ||
| 90520-30008 |
AE95 T=2.35-2.40,MARK 1 |
1 | ||
| 90520-30021 |
AE95 T=2.65-2.69,MARK 7 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
AE95 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-13010 |
AE95 |
1 | ||
| 33302-12020 |
AE95 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28002 |
AE95 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20012 |
AE95 |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-59007 |
AE95 T=1.60,MARK 6 |
1 | ||
| 90564-59006 |
AE95 T=1.55,MARK 5 |
1 | ||
| 90564-59005 |
AE95 T=1.50,MARK 4 |
1 | ||
| 90564-59001 |
AE95 T=1.30,MARK 0 |
1 | ||
| 90564-59002 |
AE95 T=1.35,MARK 1 |
1 | ||
| 90564-59012 |
AE95 T=1.85,MARK B |
1 | ||
| 90564-59003 |
AE95 T=1.40,MARK 2 |
1 | ||
| 90564-59008 |
AE95 T=1.65,MARK 7 |
1 | ||
| 90564-59010 |
AE95 T=1.75,MARK 9 |
1 | ||
| 90564-59018 |
AE95 T=2.15,MARK H |
1 | ||
| 90564-59014 |
AE95 T=1.95,MARK D |
1 | ||
| 90564-59004 |
AE95 T=1.45,MARK 3 |
1 | ||
| 90564-59016 |
AE95 T=2.05,MARK F |
1 | ||
| 90564-59017 |
AE95 T=2.10,MARK G |
1 | ||
| 90564-59009 |
AE95 T=1.70,MARK 8 |
1 | ||
| 90564-59024 |
AE95 T=2.45,MARK P |
1 | ||
| 90564-59020 |
AE95 T=2.25,MARK K |
1 | ||
| 90564-59013 |
AE95 T=1.90,MARK C |
1 | ||
| 90564-59019 |
AE95 T=2.20,MARK J |
1 | ||
| 90564-59015 |
AE95 T=2.00,MARK E |
1 | ||
| 90564-59023 |
AE95 T=2.40,MARK N |
1 | ||
| 90564-59011 |
AE95 T=1.80,MARK A |
1 | ||
| 90564-59025 |
AE95 T=2.50,MARK Q |
1 | ||
| 90564-59021 |
AE95 T=2.30,MARK L |
1 | ||
| 90564-59022 |
AE95 T=2.35,MARK M |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32016 |
AE95 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12041 |
AE95 |
1 | ||
| 33331-12040 |
AE95 |
1 | ||
| 33331-12030 |
AE95 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-12040 |
AE95 |
1 | ||
| 33332-12071 |
AE95 |
1 | ||
| 33332-12072 |
AE95 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44001 |
AE95 |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-44001 |
AE95 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12070 |
AE95 |
1 | ||
| 33034-12061 |
AE95 |
1 | ||
| 33034-12060 |
AE95 |
1 | ||
| 33034-12071 |
AE95 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-36011 |
AE95 |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-13011 |
AE95 |
1 | ||
| 33035-12040 |
AE95 |
1 | ||
| 33035-12041 |
AE95 |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-36014 |
AE95 |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
AE95 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-12040 |
AE95 |
1 | ||
| 33335-13010 |
AE95 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45007 |
AE95 |
1 | ||
| 90364-45004 |
AE95 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12060 |
AE95 |
1 | ||
| 33036-12031 |
AE95 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-33007 |
AE95 |
1 | ||
| 90364-28013 |
AE95 |
1 | ||
| 33343D - BUSH, 2ND GEAR | ||||
| 33343-12020 |
AE95 |
1 | ||
| 33343-12010 |
AE95 |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
AE95 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12051 |
AE95 |
1 | ||
| 33361-12040 |
AE95 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12030 |
AE95 |
1 | ||
| 33362-20021 |
AE95 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34006 |
AE95 T=2.45-2.50,MARK L |
1 | ||
| 90520-34004 |
AE95 T=2.35-2.40,MARK J |
1 | ||
| 90520-34003 |
AE95 T=2.30-2.35,MARK H |
1 | ||
| 90520-34008 |
AE95 T=2.55-2.60,MARK N |
1 | ||
| 90520-34005 |
AE95 T=2.40-2.45,MARK K |
1 | ||
| 90520-34007 |
AE95 T=2.50-2.55,MARK M |
1 | ||
| 90520-34009 |
AE95 T=2.60-2.65,MARK P |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12021 |
AE95 |
1 | ||
| 33364-12020 |
AE95 |
1 | ||
| 33364-20024 |
AE95 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12040 |
AE95 |
3 | ||
| 33365-12030 |
AE95 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12030 |
AE95 |
3 | ||
| 33366-20021 |
AE95 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12040 |
AE95 |
1 | ||
| 33367-20040 |
AE95 1ST GEAR SIDE |
1 | ||
| 33367-20050 |
AE95 2ND GEAR SIDE |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
AE95 |
2 | ||
| 33368-12041 |
AE95 |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 90501-08112 |
AE95 |
3 | ||
| 33371-20020 |
AE95 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
AE95 |
2 | ||
| 90501-08131 |
AE95 |
3 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12020 |
AE95 NO.2 |
1 | ||
| 33392-20010 |
AE95 |
1 | ||
| 33392-12010 |
AE95 NO.1 |
1 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12020 |
AE95 NO.2 |
1 | ||
| 33392-20010 |
AE95 |
1 | ||
| 33392-12010 |
AE95 NO.1 |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20020 |
AE95 |
1 | ||
| 33393-12021 |
AE95 |
1 | ||
| 33393-12020 |
AE95 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-27040 |
AE95 T=2.40-2.45,MARK T |
1 | ||
| 90520-27042 |
AE95 T=2.50-2.55,MARK V |
1 | ||
| 90520-27038 |
AE95 T=2.30-2.35,MARK R |
1 | ||
| 90520-27039 |
AE95 T=2.35-2.40,MARK S |
1 | ||
| 90520-27045 |
AE95 T=2.65-2.70,MARK Y |
1 | ||
| 90520-27044 |
AE95 T=2.60-2.65,MARK X |
1 | ||
| 90520-27037 |
AE95 T=2.25-2.30,MARK Q |
1 | ||
| 90520-27043 |
AE95 T=2.55-2.60,MARK W |
1 | ||
| 90520-27064 |
AE95 T=1.90-1.95,MARK D |
1 | ||
| 90520-27069 |
AE95 T=2.15-2.20,MARK J |
1 | ||
| 90520-27061 |
AE95 T=1.75-1.80,MARK A |
1 | ||
| 90520-27065 |
AE95 T=1.95-2.00,MARK E |
1 | ||
| 90520-27067 |
AE95 T=2.05-2.10,MARK G |
1 | ||
| 90520-27041 |
AE95 T=2.45-2.50,MARK U |
1 | ||
| 90520-27062 |
AE95 T=1.80-1.85,MARK B |
1 | ||
| 90520-27068 |
AE95 T=2.10-2.15,MARK H |
1 | ||
| 90520-27066 |
AE95 T=2.00-2.05,MARK F |
1 | ||
| 90520-27063 |
AE95 T=1.85-1.90,MARK C |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20020 |
AE95 |
1 | ||
| 33395-12020 |
AE95 |
1 | ||
| 33396A - RING, SYNCHRONIZER PULL | ||||
| 33396-12010 |
AE95 |
1 | ||
| 33396-12011 |
AE95 |
1 | ||
| 33396B - RING, SNAP (FOR SYNCHRONIZER PULL RING) | ||||
| 90520-46035 |
AE95 |
1 | ||
| 33397A - RING, SYNCHRONIZER, INNER NO.5 | ||||
| 33397-12011 |
AE95 |
1 | ||
| 33397-12010 |
AE95 |
1 | ||
| 33398A - RING, SYNCHRONIZER, MIDDLE NO.5 | ||||
| 33398-12010 |
AE95 |
1 | ||
| 33399D - RING, SYNCHRONIZER, OUTER NO.5 | ||||
| 33399-12011 |
AE95 |
1 | ||
| 33399-12010 |
AE95 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12031 |
AE95 |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12040 |
AE95 |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12030 |
AE95 |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12030 |
AE95 |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20080 |
AE95 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12032 |
AE95 |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
AE95 |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AE95 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20050 |
AE95 |
1 | ||
(9009-9109)
E57F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-20010 |
AE95 |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-60616 |
AE95 |
3 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-20010 |
AE95 |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12031 |
AE95 |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80029 |
AE95 |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12090 |
AE95 |
1 | ||
| 33311-13010 |
AE95 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
AE95 |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
AE95 |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-30009 |
AE95 T=2.40-2.45,MARK 2 |
1 | ||
| 90520-30022 |
AE95 T=2.70-2.74,MARK 8 |
1 | ||
| 90520-30011 |
AE95 T=2.50-2.55,MARK 4 |
1 | ||
| 90520-30012 |
AE95 T=2.55-2.60,MARK 5 |
1 | ||
| 90520-30010 |
AE95 T=2.45-2.50,MARK 3 |
1 | ||
| 90520-30013 |
AE95 T=2.60-2.65,MARK 6 |
1 | ||
| 90520-30008 |
AE95 T=2.35-2.40,MARK 1 |
1 | ||
| 90520-30021 |
AE95 T=2.65-2.69,MARK 7 |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
AE95 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33302-13010 |
AE95 |
1 | ||
| 33302-12020 |
AE95 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28002 |
AE95 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20012 |
AE95 |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-59007 |
AE95 T=1.60,MARK 6 |
1 | ||
| 90564-59006 |
AE95 T=1.55,MARK 5 |
1 | ||
| 90564-59005 |
AE95 T=1.50,MARK 4 |
1 | ||
| 90564-59001 |
AE95 T=1.30,MARK 0 |
1 | ||
| 90564-59002 |
AE95 T=1.35,MARK 1 |
1 | ||
| 90564-59012 |
AE95 T=1.85,MARK B |
1 | ||
| 90564-59003 |
AE95 T=1.40,MARK 2 |
1 | ||
| 90564-59008 |
AE95 T=1.65,MARK 7 |
1 | ||
| 90564-59010 |
AE95 T=1.75,MARK 9 |
1 | ||
| 90564-59018 |
AE95 T=2.15,MARK H |
1 | ||
| 90564-59014 |
AE95 T=1.95,MARK D |
1 | ||
| 90564-59004 |
AE95 T=1.45,MARK 3 |
1 | ||
| 90564-59016 |
AE95 T=2.05,MARK F |
1 | ||
| 90564-59017 |
AE95 T=2.10,MARK G |
1 | ||
| 90564-59009 |
AE95 T=1.70,MARK 8 |
1 | ||
| 90564-59024 |
AE95 T=2.45,MARK P |
1 | ||
| 90564-59020 |
AE95 T=2.25,MARK K |
1 | ||
| 90564-59013 |
AE95 T=1.90,MARK C |
1 | ||
| 90564-59019 |
AE95 T=2.20,MARK J |
1 | ||
| 90564-59015 |
AE95 T=2.00,MARK E |
1 | ||
| 90564-59023 |
AE95 T=2.40,MARK N |
1 | ||
| 90564-59011 |
AE95 T=1.80,MARK A |
1 | ||
| 90564-59025 |
AE95 T=2.50,MARK Q |
1 | ||
| 90564-59021 |
AE95 T=2.30,MARK L |
1 | ||
| 90564-59022 |
AE95 T=2.35,MARK M |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32016 |
AE95 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12041 |
AE95 |
1 | ||
| 33331-12040 |
AE95 |
1 | ||
| 33331-12030 |
AE95 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-12040 |
AE95 |
1 | ||
| 33332-12071 |
AE95 |
1 | ||
| 33332-12072 |
AE95 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44001 |
AE95 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12070 |
AE95 |
1 | ||
| 33034-12061 |
AE95 |
1 | ||
| 33034-12060 |
AE95 |
1 | ||
| 33034-12071 |
AE95 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-36011 |
AE95 |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-13011 |
AE95 |
1 | ||
| 33035-12040 |
AE95 |
1 | ||
| 33035-12041 |
AE95 |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-36014 |
AE95 |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
AE95 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-12040 |
AE95 |
1 | ||
| 33335-13010 |
AE95 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45007 |
AE95 |
1 | ||
| 90364-45004 |
AE95 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12060 |
AE95 |
1 | ||
| 33036-12031 |
AE95 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-33007 |
AE95 |
1 | ||
| 90364-28013 |
AE95 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-33004 |
AE95 |
1 | ||
| 33343D - BUSH, 2ND GEAR | ||||
| 33343-12020 |
AE95 |
1 | ||
| 33343-12010 |
AE95 |
1 | ||
| 33343E - BALL (FOR 2ND GEAR BUSH) | ||||
| 90360-05012 |
AE95 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12051 |
AE95 |
1 | ||
| 33361-12040 |
AE95 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12030 |
AE95 |
1 | ||
| 33362-20021 |
AE95 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34006 |
AE95 T=2.45-2.50,MARK L |
1 | ||
| 90520-34004 |
AE95 T=2.35-2.40,MARK J |
1 | ||
| 90520-34003 |
AE95 T=2.30-2.35,MARK H |
1 | ||
| 90520-34008 |
AE95 T=2.55-2.60,MARK N |
1 | ||
| 90520-34005 |
AE95 T=2.40-2.45,MARK K |
1 | ||
| 90520-34007 |
AE95 T=2.50-2.55,MARK M |
1 | ||
| 90520-34009 |
AE95 T=2.60-2.65,MARK P |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12021 |
AE95 |
1 | ||
| 33364-12020 |
AE95 |
1 | ||
| 33364-20024 |
AE95 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12040 |
AE95 |
3 | ||
| 33365-12030 |
AE95 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12030 |
AE95 |
3 | ||
| 33366-20021 |
AE95 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12040 |
AE95 |
1 | ||
| 33367-20040 |
AE95 1ST GEAR SIDE |
1 | ||
| 33367-20050 |
AE95 2ND GEAR SIDE |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12040 |
AE95 |
1 | ||
| 33367-20040 |
AE95 1ST GEAR SIDE |
1 | ||
| 33367-20050 |
AE95 2ND GEAR SIDE |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
AE95 |
2 | ||
| 33368-12041 |
AE95 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
AE95 |
2 | ||
| 33368-12041 |
AE95 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20010 |
AE95 |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 90501-08112 |
AE95 |
3 | ||
| 33371-20020 |
AE95 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 90501-08112 |
AE95 |
3 | ||
| 33371-20020 |
AE95 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
AE95 |
2 | ||
| 90501-08131 |
AE95 |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
AE95 |
2 | ||
| 90501-08131 |
AE95 |
3 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-12020 |
AE95 NO.2 |
1 | ||
| 33392-20010 |
AE95 |
1 | ||
| 33392-12010 |
AE95 NO.1 |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20020 |
AE95 |
1 | ||
| 33393-12021 |
AE95 |
1 | ||
| 33393-12020 |
AE95 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-27040 |
AE95 T=2.40-2.45,MARK T |
1 | ||
| 90520-27042 |
AE95 T=2.50-2.55,MARK V |
1 | ||
| 90520-27038 |
AE95 T=2.30-2.35,MARK R |
1 | ||
| 90520-27039 |
AE95 T=2.35-2.40,MARK S |
1 | ||
| 90520-27045 |
AE95 T=2.65-2.70,MARK Y |
1 | ||
| 90520-27044 |
AE95 T=2.60-2.65,MARK X |
1 | ||
| 90520-27037 |
AE95 T=2.25-2.30,MARK Q |
1 | ||
| 90520-27043 |
AE95 T=2.55-2.60,MARK W |
1 | ||
| 90520-27064 |
AE95 T=1.90-1.95,MARK D |
1 | ||
| 90520-27069 |
AE95 T=2.15-2.20,MARK J |
1 | ||
| 90520-27061 |
AE95 T=1.75-1.80,MARK A |
1 | ||
| 90520-27065 |
AE95 T=1.95-2.00,MARK E |
1 | ||
| 90520-27067 |
AE95 T=2.05-2.10,MARK G |
1 | ||
| 90520-27041 |
AE95 T=2.45-2.50,MARK U |
1 | ||
| 90520-27062 |
AE95 T=1.80-1.85,MARK B |
1 | ||
| 90520-27068 |
AE95 T=2.10-2.15,MARK H |
1 | ||
| 90520-27066 |
AE95 T=2.00-2.05,MARK F |
1 | ||
| 90520-27063 |
AE95 T=1.85-1.90,MARK C |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20020 |
AE95 |
1 | ||
| 33395-12020 |
AE95 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12031 |
AE95 |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12040 |
AE95 |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12030 |
AE95 |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12030 |
AE95 |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-20080 |
AE95 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12032 |
AE95 |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
AE95 |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AE95 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-20050 |
AE95 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
