AE95L-CWMNKW (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

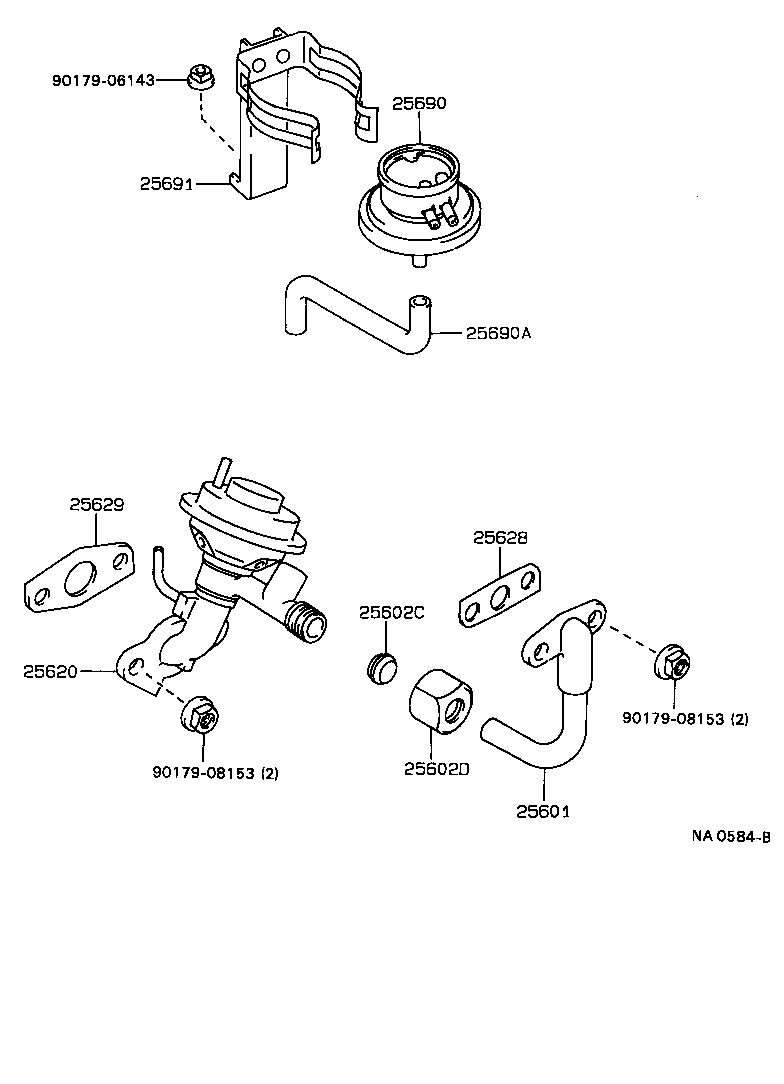

Click highlighted areas on diagram

diagram 25620 25629 25690 25690A 9017908153
Part # Description Qty Price
Common parts
90179-08153

(9009- )4AFE

Click highlighted areas on diagram

diagram 25601 25602C 25602D 25620 25628 25629 25690 25690A 25691 9017906143 9017908153 9017908153
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-16040

4AFE..AE95

 1
25602C - SLEEVE, BALL(FOR EGR PIPE, NO.2)
90410-12042

4AFE..AE95

 1
25602D - NUT, UNION(FOR EGR PIPE, NO.2)
90402-20073

4AFE..AE95

 1
25620 - VALVE ASSY, EGR
25620-16100

4AFE..AE95

 1
25628 - GASKET, EGR INLET
25628-16010

4AFE..AE95

 1
25629 - GASKET, EGR VALVE ADAPTER
25627-16031

4AFE..AE95

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-16110

4AFE..AE95

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-16030

4AFE..AE95

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-16150

4AFE..AE95

 1
Common parts
90179-06143
90179-08153
