AE95L-CWMNKW (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

Click highlighted areas on diagram

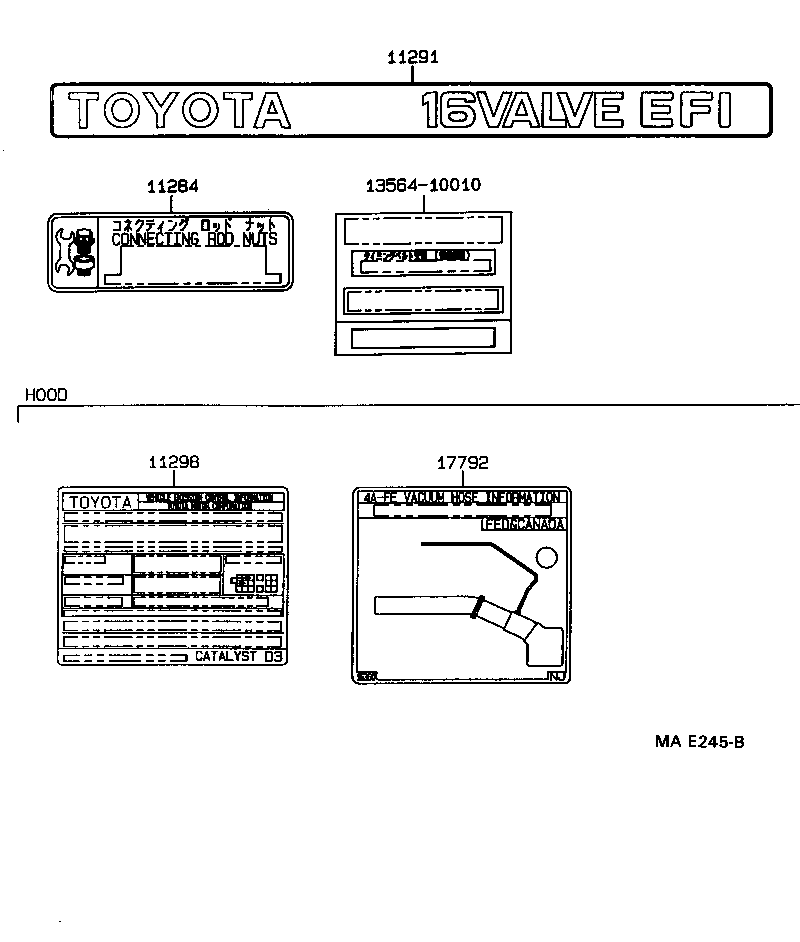

diagram 11284 11291 11298 1356410010 17792
Part # Description Qty Price
Common parts
13564-10010

(9009- )

Click highlighted areas on diagram

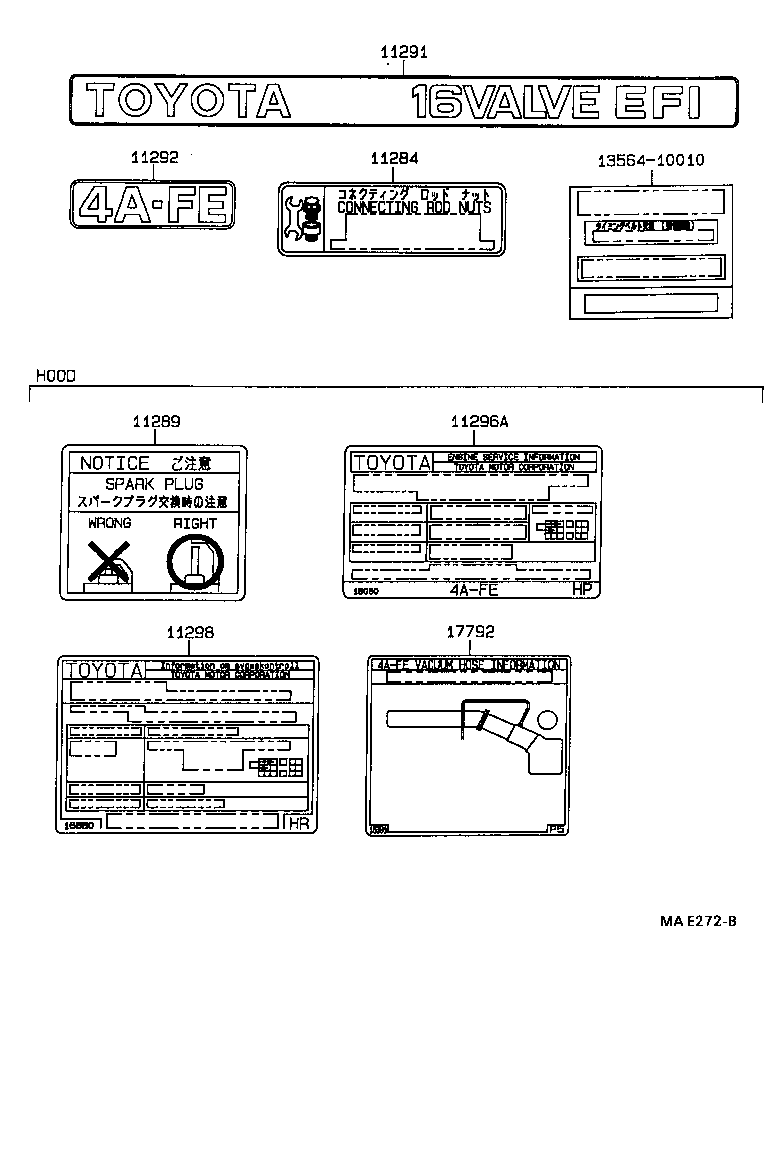

diagram 11284 11289 11291 11292 11296A 11298 1356410010 17792
Part # Description Qty Price
11284 - PLATE, ENGINE BOLT INFORMATION
11284-15010

4AFE..AE95

 1
11284-15010

4AF#..AE95

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-13050

4AF..AE95

 1
11291 - PLATE, ENGINE NAME
11291-15140

4AFE..AE95

 1
11291-15120

4AF..AE95

 1
11292 - PLATE, ENGINE NAME, NO.2
11292-16010

4AF..AE95

 1
11292-16020

4AFE..AE95

 1
11296A - LABEL, ENGINE SERVICE INFORMATION
11296-16060

4AFE..AE95

 1
11296-16040

4AF..AE95

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-16880

4AFE..AE95

SWEDEN SPEC OR NORWAY SPEC OR FINLAND & DENMARK SPEC

 1
11298-16880

4AFE..AE95

SWEDEN SPEC OR NORWAY SPEC OR FINLAND & DENMARK SPEC

 1
11298-1A330

4AFE..AE95

SWEDEN SPEC OR NORWAY SPEC OR FINLAND & DENMARK SPEC

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-16391

4AFE..AE95

 1
Common parts
13564-10010
