AE95L-CWMNKW (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

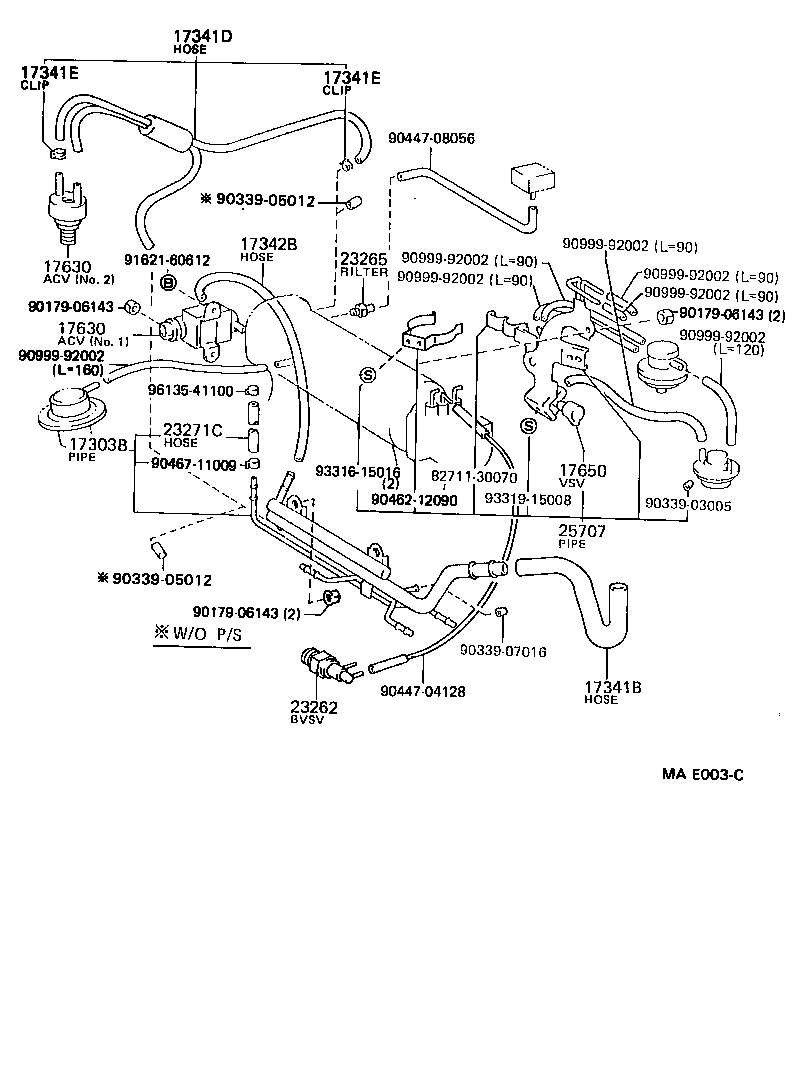

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30070 | ||||
| 90179-06143 | ||||
| 90339-03005 | ||||
| 90339-05012 | ||||
| 90339-07016 | ||||
| 90447-04128 | ||||
| 90447-08056 | ||||
| 90462-12090 | ||||
| 90467-11009 | ||||
| 90999-92002 | ||||
| 91621-60612 | ||||
| 93316-15016 | ||||
| 93319-15008 | ||||
| 96135-41100 | ||||
(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

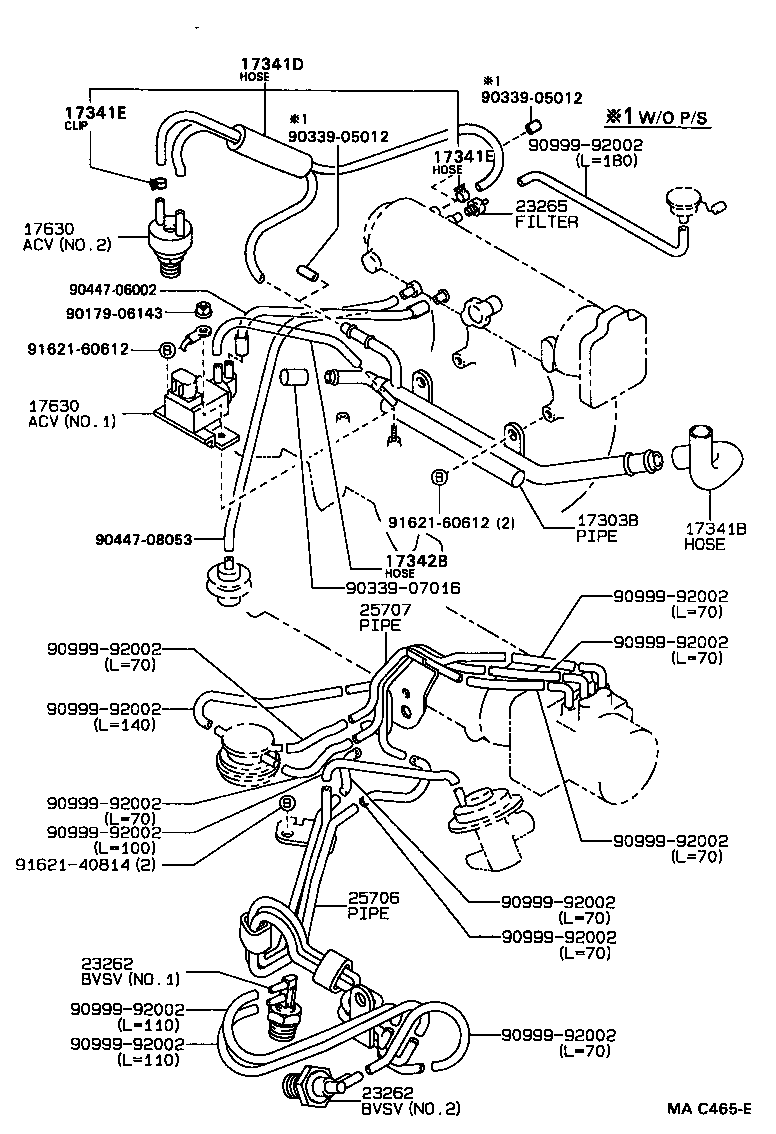

(9009- )4AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-15050 |
4AFE..AE95 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-15130 |
4AFE..AE95 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17302-16020 |
4AFE..AE95 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AFE..AE95 |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AFE..AE95 |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-15070 |
4AFE..AE95 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15060 |
4AFE..AE95 W(POWER STEERING),NO.2 |
1 | ||
| 17630-15060 |
4AFE..AE95 NO.2 |
1 | ||
| 17630-15040 |
4AFE..AE95 NO.1 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15060 |
4AFE..AE95 W(POWER STEERING),NO.2 |
1 | ||
| 17630-15060 |
4AFE..AE95 NO.2 |
1 | ||
| 17630-15040 |
4AFE..AE95 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05075 |
4AFE..AE95 NO.1 |
1 | ||
| 90925-05068 |
4AFE..AE95 NO.2 |
1 | ||
| 90925-05085 |
4AF..AE95 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05075 |
4AFE..AE95 NO.1 |
1 | ||
| 90925-05068 |
4AFE..AE95 NO.2 |
1 | ||
| 90925-05085 |
4AF..AE95 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE95 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16300 |
4AFE..AE95 |
1 | ||
| 25706-16210 |
4AF..AE95 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16131 |
4AFE..AE95 |
1 | ||
| 25707-16140 |
4AF..AE95 |
1 | ||
| Common parts | ||||
| 90179-06143 | ||||
| 90339-05012 | ||||
| 90339-07016 | ||||
| 90447-06002 | ||||
| 90447-08053 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
| 91621-60612 | ||||

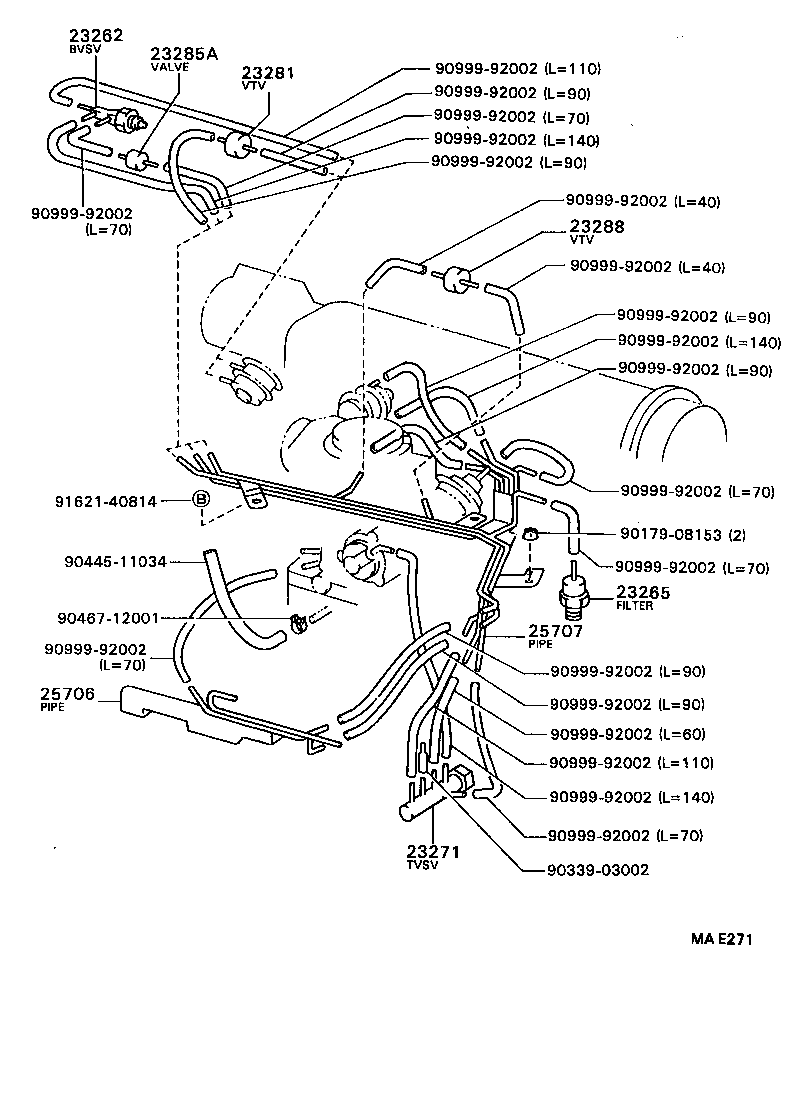

(9009-9205)4AF
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05075 |
4AFE..AE95 NO.1 |
1 | ||
| 90925-05068 |
4AFE..AE95 NO.2 |
1 | ||
| 90925-05085 |
4AF..AE95 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE95 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AF..AE95 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01095 |
4AF..AE95 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AF..AE95 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-01091 |
4AF..AE95 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16300 |
4AFE..AE95 |
1 | ||
| 25706-16210 |
4AF..AE95 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16131 |
4AFE..AE95 |
1 | ||
| 25707-16140 |
4AF..AE95 |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90445-11034 | ||||
| 90467-12001 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
