AE95L-CWMDUW (1990)
Toyota Corolla Wagon
(9009- )5F
E57F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE95 *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AE95 *12-1.25PX55-30 |
2 | ||
| 90119-12128 |
AE95 *12-1.25PX96-30 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE95 *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AE95 *12-1.25PX55-30 |
2 | ||
| 90119-12128 |
AE95 *12-1.25PX96-30 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE95 *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AE95 *12-1.25PX55-30 |
2 | ||
| 90119-12128 |
AE95 *12-1.25PX96-30 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE95 *8-1.25PX45-27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE95 *8-1.25PX45-27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
AE95 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AE95 |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03111 |
AE95 |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
AE95 |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12040 |
AE95 |
1 | ||
| 33102-12030 |
AE95 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AE95 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AE95 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-12151 |
AE95 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-44003 |
AE95 |
1 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
AE95 |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AE95 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08630 |
AE95 |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12030 |
AE95 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12040 |
AE95 |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
AE95 |
1 | ||

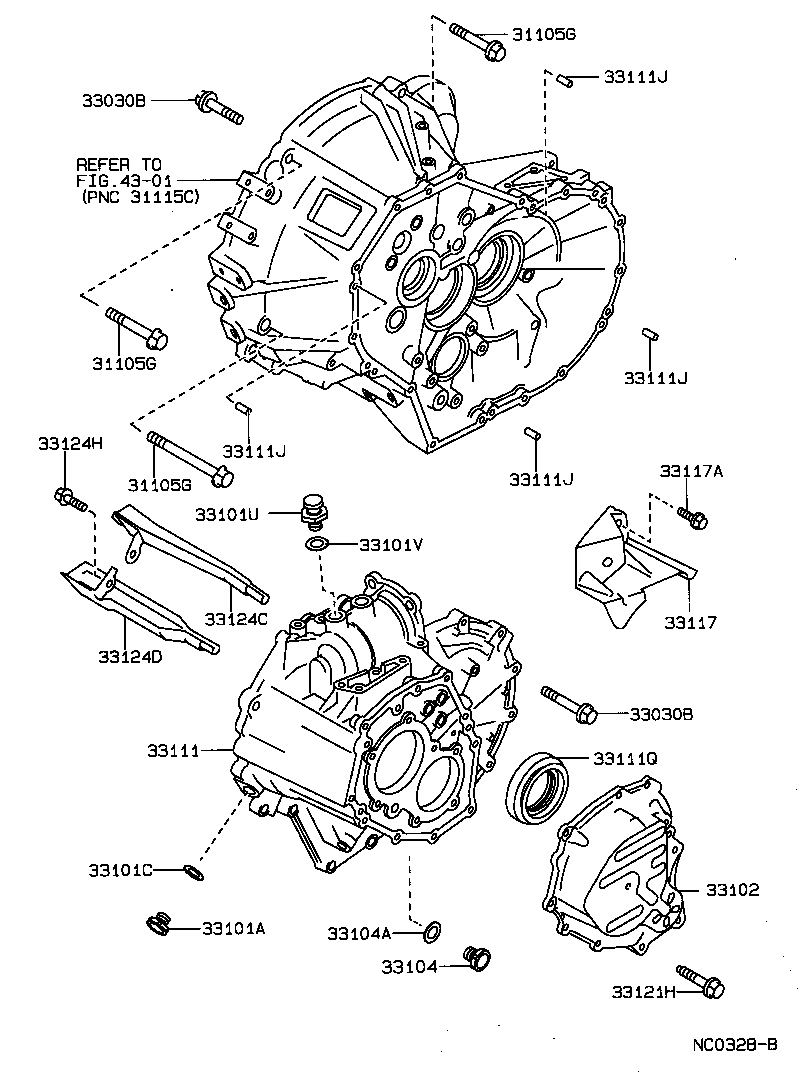

| Linked diagrams | ||||
| 4301 | ||||
(9009- )
E57F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE95 *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AE95 *12-1.25PX55-30 |
2 | ||
| 90119-12128 |
AE95 *12-1.25PX96-30 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE95 *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AE95 *12-1.25PX55-30 |
2 | ||
| 90119-12128 |
AE95 *12-1.25PX96-30 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AE95 *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AE95 *12-1.25PX55-30 |
2 | ||
| 90119-12128 |
AE95 *12-1.25PX96-30 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE95 *8-1.25PX45-27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
AE95 *8-1.25PX45-27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
AE95 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AE95 |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03111 |
AE95 |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
AE95 |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12040 |
AE95 |
1 | ||
| 33102-12030 |
AE95 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AE95 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AE95 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-12151 |
AE95 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE95 L=23,OD=8 |
4 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-44003 |
AE95 |
1 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
AE95 |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AE95 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08630 |
AE95 |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12030 |
AE95 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12040 |
AE95 |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
AE95 |
1 | ||
| Linked diagrams | ||||
| 4301 | ||||
