AE95L-CWMDKW (1990)
Toyota Corolla Wagon
(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06378 | ||||
| 90119-06569 | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50048 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90179-10065 | ||||
| 90206-10009 | ||||
| 91611-60820 | ||||
| 91655-40620 | ||||
| 91655-40625 | ||||
| 93315-14012 | ||||
| 94614-10600 | ||||

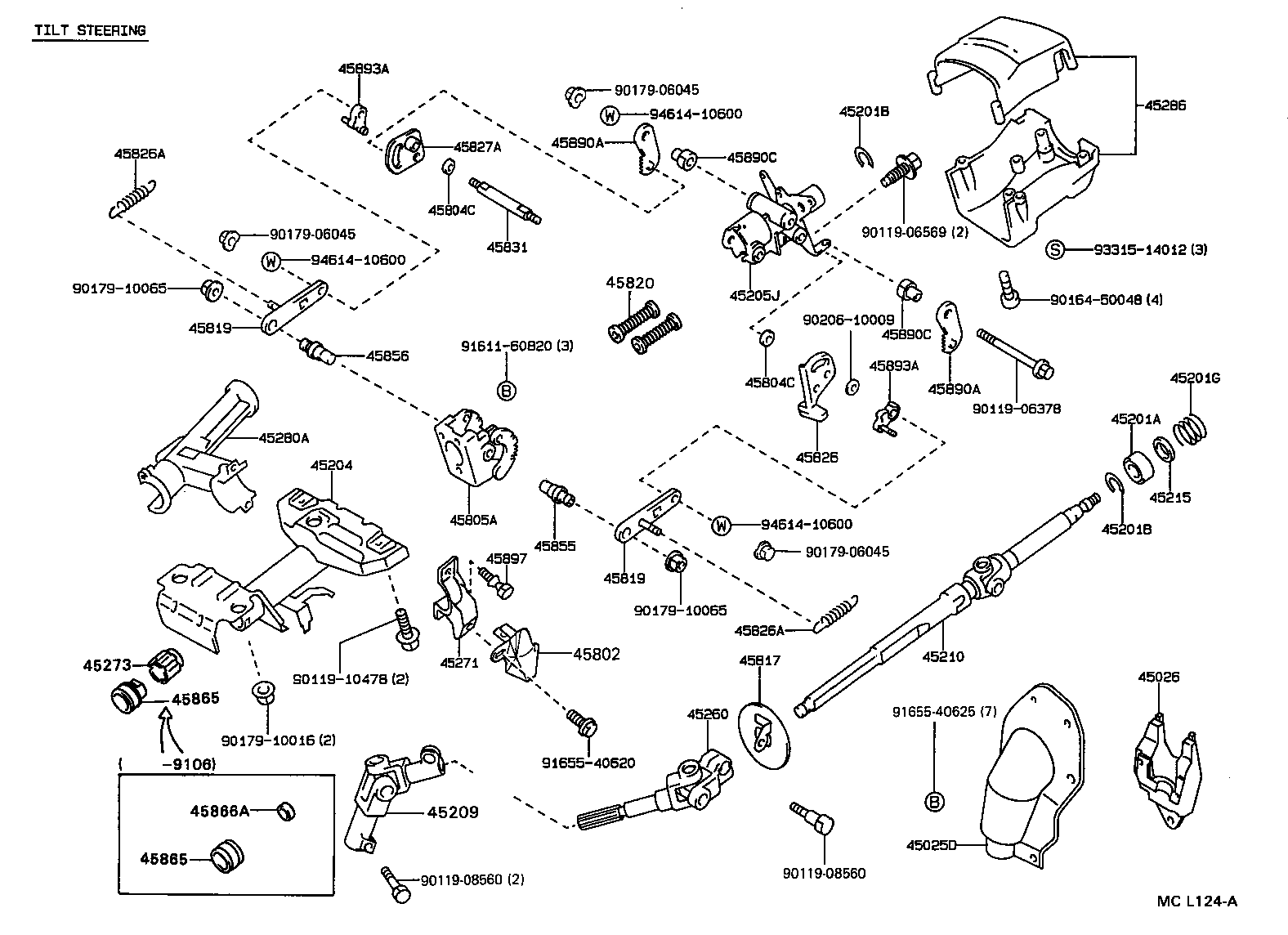

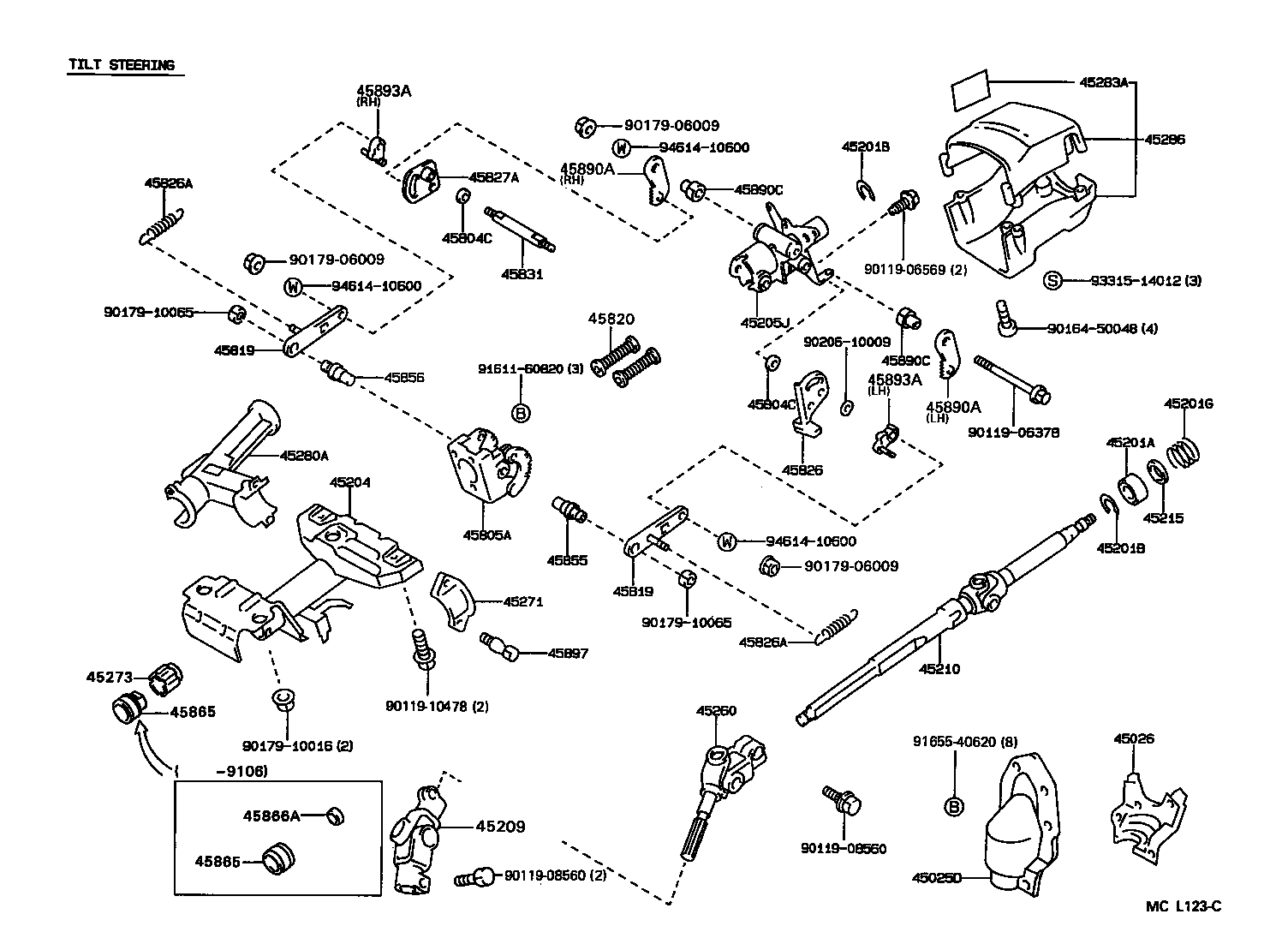

(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE95 |
1 | ||
| 45025-12200 |
AE95..LHD W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE95..LHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12030 |
AE95..LHD |
1 | ||
| 45026-12040 |
AE95..LHD W(POWER STEERING) |
1 | ||
| 45026-12040 |
AE95 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
AE95 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 90520-17196 |
AE95 T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE95 T=1.20,T=1.20,TYPE B |
1 | ||
| 90520-17042 |
AE95 T=1.20,W(TILT STEERING) |
2 | ||
| 90520-17269 |
AE95 T=1.20,TYPE A |
1 | ||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 90520-17196 |
AE95 T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE95 T=1.20,T=1.20,TYPE B |
1 | ||
| 90520-17042 |
AE95 T=1.20,W(TILT STEERING) |
2 | ||
| 90520-17269 |
AE95 T=1.20,TYPE A |
1 | ||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
AE95 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-12093 |
AE95 |
1 | ||
| 45204-12092 |
AE95 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-12261 |
AE95..LHD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE95 |
1 | ||
| 45209-12050 |
AE95 W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-12050 |
AE95 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
AE95 |
1 | ||
| 45210-12350 |
AE95..LHD |
1 | ||
| 45210-12400 |
AE95 W(TILT STEERING) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
AE95 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12200 |
AE95..LHD |
1 | ||
| 45260-12220 |
AE95..LHD W(POWER STEERING) |
1 | ||
| 45260-12220 |
AE95 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12050 |
AE95 |
1 | ||
| 45271-12060 |
AE95 W(TILT STEERING) |
1 | ||
| 45271-12060 |
AE95 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
AE95 |
1 | ||
| 45273-20040 |
AE95 |
1 | ||
| 45273-22020 |
AE95 W(TILT STEERING) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12130 |
AE95 |
1 | ||
| 45280-12130 |
AE95 W(TILT STEERING) |
1 | ||
| 45280-12110 |
AE95 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1294301 |
AE95..LHD W(TILT STEERING),BLACK,TRIM1#,8# |
1 | ||
| 45286-1294301 |
AE95 BLACK,TRIM1#,8# |
1 | ||
| 45286-1294101 |
AE95..LHD BLACK,TRIM1#,8# |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
AE95 |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
AE95 |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-12010 |
AE95 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12020 |
AE95 |
2 | ||
| 45819-12010 |
AE95 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12020 |
AE95 |
2 | ||
| 45819-12010 |
AE95 |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-12020 |
AE95 |
1 | ||
| 45820-12010 |
AE95 |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-12021 |
AE95 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
AE95 |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
AE95 |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12020 |
AE95 |
1 | ||
| 45827-12011 |
AE95 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12010 |
AE95 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-12030 |
AE95 OD=9.989-9.998 |
1 | ||
| 45855-12010 |
AE95 OD=9.989-9.998 |
1 | ||
| 45855-12040 |
AE95 OD=9.998-10.007 |
1 | ||
| 45855-12020 |
AE95 OD=9.998-10.007 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-12040 |
AE95 OD=9.998-10.007 |
1 | ||
| 45856-12010 |
AE95 OD=9.989-9.998 |
1 | ||
| 45856-12030 |
AE95 OD=9.989-9.998 |
1 | ||
| 45856-12020 |
AE95 OD=9.998-10.007 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
AE95 |
1 | ||
| 45865-12060 |
AE95 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
AE95 |
1 | ||
| 45865-12060 |
AE95 |
1 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-12010 |
AE95 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12021 |
AE95 LH |
1 | ||
| 45890-12031 |
AE95 RH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12021 |
AE95 LH |
1 | ||
| 45890-12031 |
AE95 RH |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07005 |
AE95 MARK 2 |
1 | ||
| 90389-07011 |
AE95 MARK 8 |
1 | ||
| 90389-07007 |
AE95 MARK 4 |
1 | ||
| 90389-07006 |
AE95 MARK 3 |
1 | ||
| 90389-07010 |
AE95 MARK 7 |
1 | ||
| 90389-07009 |
AE95 MARK 6 |
1 | ||
| 90389-07004 |
AE95 MARK 0 |
1 | ||
| 90389-07008 |
AE95 MARK A |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07005 |
AE95 MARK 2 |
1 | ||
| 90389-07011 |
AE95 MARK 8 |
1 | ||
| 90389-07007 |
AE95 MARK 4 |
1 | ||
| 90389-07006 |
AE95 MARK 3 |
1 | ||
| 90389-07010 |
AE95 MARK 7 |
1 | ||
| 90389-07009 |
AE95 MARK 6 |
1 | ||
| 90389-07004 |
AE95 MARK 0 |
1 | ||
| 90389-07008 |
AE95 MARK A |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12021 |
AE95 MARK A,LH |
1 | ||
| 45893-12120 |
AE95 MARK B,LH |
1 | ||
| 45893-12140 |
AE95 MARK D,LH |
1 | ||
| 45893-12071 |
AE95 MARK F OR 11,RH |
1 | ||
| 45893-12180 |
AE95 MARK I OR 14,RH |
1 | ||
| 45893-12170 |
AE95 MARK H OR 13,RH |
1 | ||
| 45893-12130 |
AE95 MARK C,LH |
1 | ||
| 45893-12160 |
AE95 MARK G OR 12,RH |
1 | ||
| 45893-12190 |
AE95 MARK J OR 15,RH |
1 | ||
| 45893-12150 |
AE95 MARK E,LH |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12021 |
AE95 MARK A,LH |
1 | ||
| 45893-12120 |
AE95 MARK B,LH |
1 | ||
| 45893-12140 |
AE95 MARK D,LH |
1 | ||
| 45893-12071 |
AE95 MARK F OR 11,RH |
1 | ||
| 45893-12180 |
AE95 MARK I OR 14,RH |
1 | ||
| 45893-12170 |
AE95 MARK H OR 13,RH |
1 | ||
| 45893-12130 |
AE95 MARK C,LH |
1 | ||
| 45893-12160 |
AE95 MARK G OR 12,RH |
1 | ||
| 45893-12190 |
AE95 MARK J OR 15,RH |
1 | ||
| 45893-12150 |
AE95 MARK E,LH |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE95 |
2 | ||
| Common parts | ||||
| 90119-06378 | ||||
| 90119-06569 | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50048 | ||||
| 90179-06009 | ||||
| 90179-10016 | ||||
| 90179-10065 | ||||
| 90206-10009 | ||||
| 91611-60820 | ||||
| 91655-40620 | ||||
| 93315-14012 | ||||
| 94614-10600 | ||||

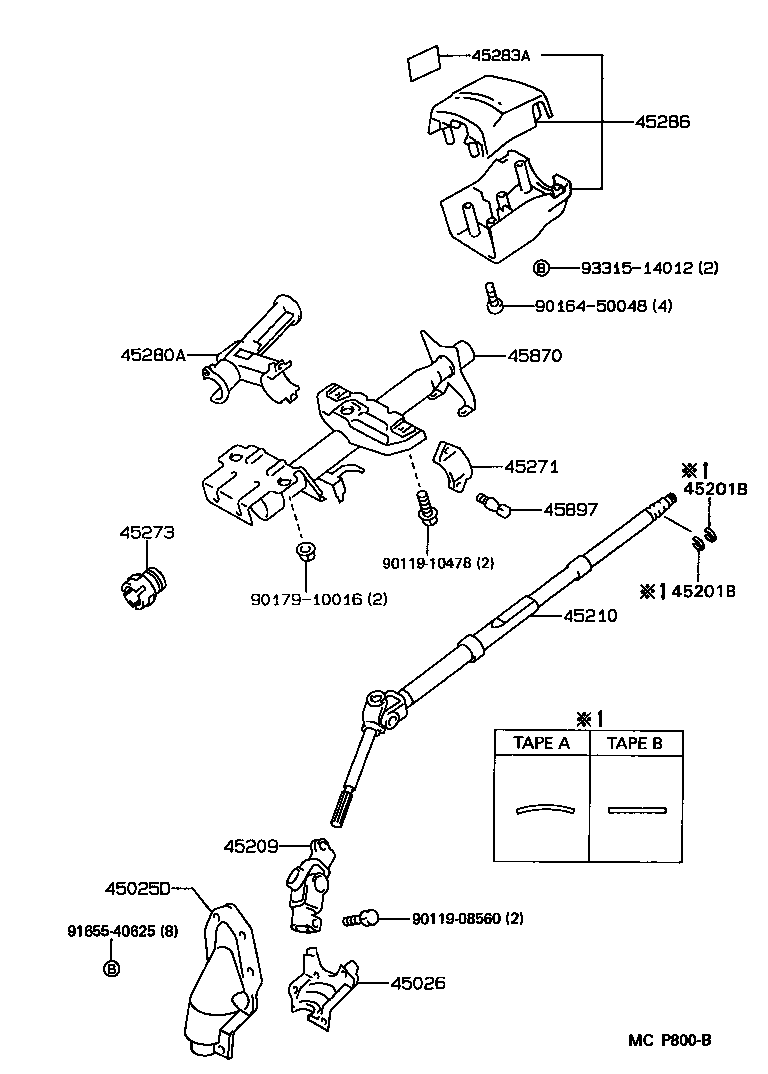

(9009-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12200 |
AE95 |
1 | ||
| 45025-12200 |
AE95..LHD W(POWER STEERING) |
1 | ||
| 45025-12190 |
AE95..LHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12030 |
AE95..LHD |
1 | ||
| 45026-12040 |
AE95..LHD W(POWER STEERING) |
1 | ||
| 45026-12040 |
AE95 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 90520-17196 |
AE95 T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE95 T=1.20,T=1.20,TYPE B |
1 | ||
| 90520-17042 |
AE95 T=1.20,W(TILT STEERING) |
2 | ||
| 90520-17269 |
AE95 T=1.20,TYPE A |
1 | ||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 90520-17196 |
AE95 T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE95 T=1.20,T=1.20,TYPE B |
1 | ||
| 90520-17042 |
AE95 T=1.20,W(TILT STEERING) |
2 | ||
| 90520-17269 |
AE95 T=1.20,TYPE A |
1 | ||
| 90520-17042 |
AE95 T=1.20 |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE95 |
1 | ||
| 45209-12050 |
AE95 W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-12050 |
AE95 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
AE95 |
1 | ||
| 45210-12350 |
AE95..LHD |
1 | ||
| 45210-12400 |
AE95 W(TILT STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12050 |
AE95 |
1 | ||
| 45271-12060 |
AE95 W(TILT STEERING) |
1 | ||
| 45271-12060 |
AE95 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
AE95 |
1 | ||
| 45273-20040 |
AE95 |
1 | ||
| 45273-22020 |
AE95 W(TILT STEERING) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12130 |
AE95 |
1 | ||
| 45280-12130 |
AE95 W(TILT STEERING) |
1 | ||
| 45280-12110 |
AE95 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1294301 |
AE95..LHD W(TILT STEERING),BLACK,TRIM1#,8# |
1 | ||
| 45286-1294301 |
AE95 BLACK,TRIM1#,8# |
1 | ||
| 45286-1294101 |
AE95..LHD BLACK,TRIM1#,8# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-12252 |
AE95..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE95 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50048 | ||||
| 90179-10016 | ||||
| 91655-40625 | ||||
| 93315-14012 | ||||
