AE95L-CWMDKK (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1993
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

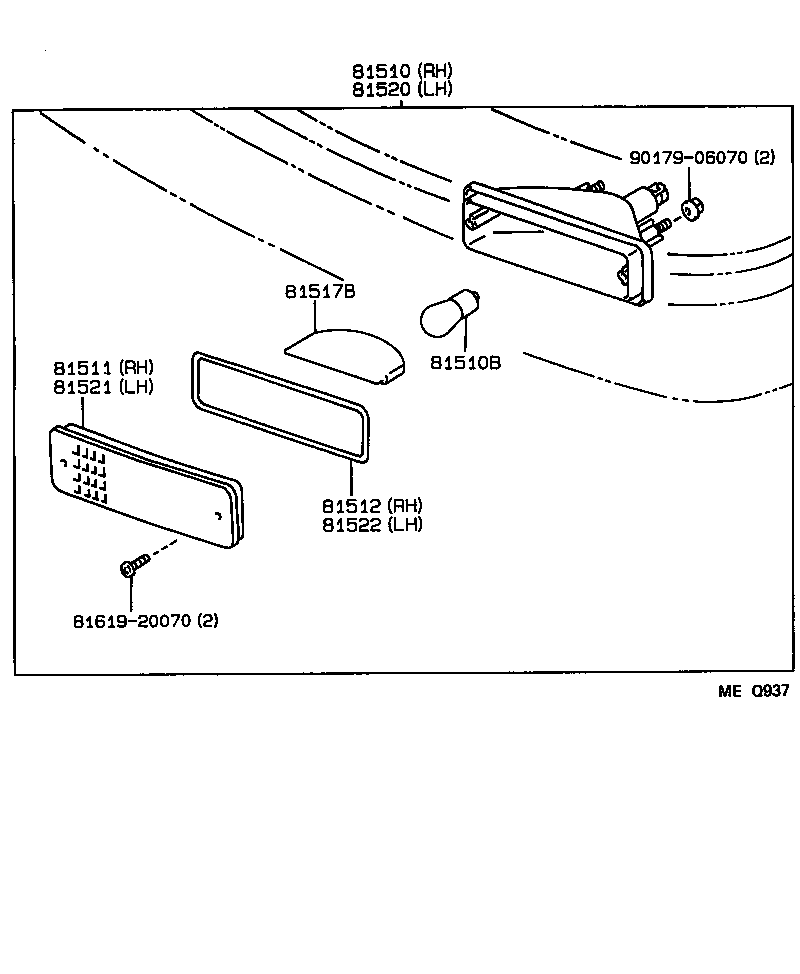

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81517B 81520 81521 81522 8161920070 9017906070
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80055

AE95

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

AE95

12V 27W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12630

AE95

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12630

AE95

 1
81517B - SHADE, FRONT TURN SIGNAL LAMP
81517-22220

AE95

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80055

AE95

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12630

AE95

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12630

AE95

 1
Common parts
81619-20070
90179-06070

(9009- )

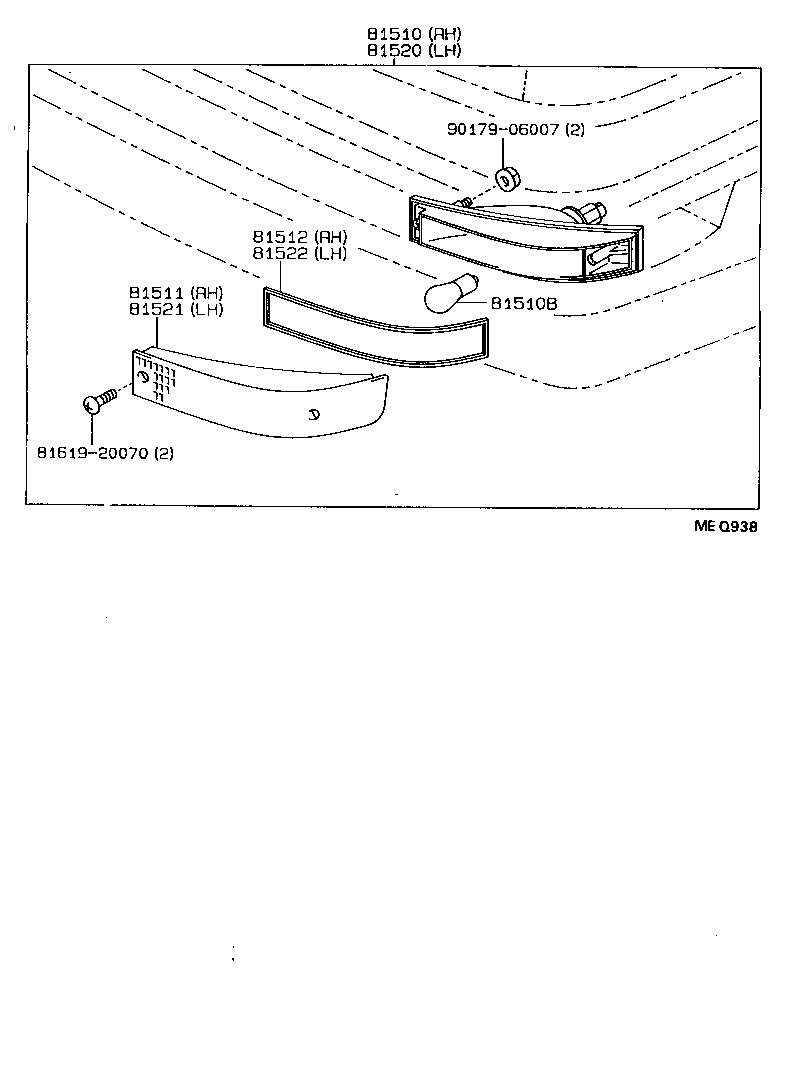

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81520 81521 81522 8161920070 9017906007
Part # Description Qty Price
Common parts
81619-20070
90179-06007
