AE95L-CWMDKK (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1993
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

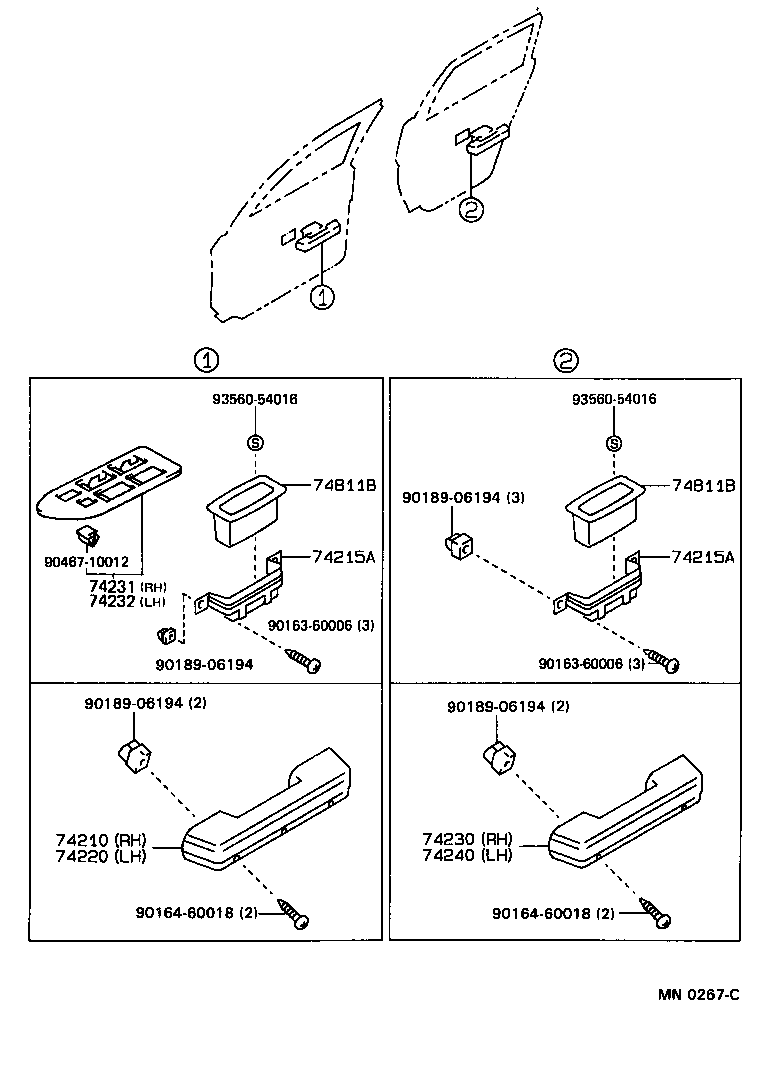

ILLUST NO. 1 OF 2(9009- )

Click highlighted areas on diagram

diagram 74210 74215A 74215A 74220 74230 74231 74232 74240 74811B 74811B 9016360006 9016360006 9016460018 9016460018 9018906194 9018906194 9018906194 9018906194 9046710012 9356054016 9356054016
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-12110J0

AE95..DX

DARK BLUE,TRIM8#

 1
74210-12110B1

AE95..DX

SHADOW GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-12110B1

AE95..DX

SHADOW GRAY,TRIM1#

 1
74210-12110J0

AE95..DX

DARK BLUE,TRIM8#

 1
74230 - ARMREST ASSY, REAR, RH
74210-12110J0

AE95..DX

DARK BLUE,TRIM8#

 1
74210-12110B1

AE95..DX

SHADOW GRAY,TRIM1#

 1
74240 - ARMREST ASSY, REAR, LH
74210-12110J0

AE95..DX

DARK BLUE,TRIM8#

 1
74210-12110B1

AE95..DX

SHADOW GRAY,TRIM1#

 1
Common parts
90163-60006
90164-60018
90189-06194
90467-10012
93560-54016

ILLUST NO. 2 OF 2(9009- )

Click highlighted areas on diagram

diagram 74310 74320 74348 74348 74603B 74610A 74610A 74610A 74617A 74631B 9015960367 9353045020 9353045020 9353045020 9353045020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-1A07004

AE95..CND

LIGHT BLUE,TRIM8#

 1
74310-1A07003

AE95..CND

LIGHT GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-1275003

AE95..CND

LIGHT GRAY,TRIM1#

 1
74320-1275004

AE95..CND

LIGHT BLUE,TRIM8#

 1
74348 - HOLDER, VISOR
74348-1202004

AE95

LIGHT BLUE,TRIM8#

 2
74348-1202003

AE95

LIGHT GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-1202004

AE95

LIGHT BLUE,TRIM8#

 2
74348-1202003

AE95

LIGHT GRAY,TRIM1#

 2
74603B - CLIP (FOR ASSIST GRIP)
90467-06048J0

AE95

LIGHT BLUE,TRIM8#

 2
90467-06048B1

AE95

LIGHT GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-1601003

AE95

LIGHT GRAY,TRIM1#

 3
74610-1601004

AE95

LIGHT BLUE,TRIM8#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1601003

AE95

LIGHT GRAY,TRIM1#

 3
74610-1601004

AE95

LIGHT BLUE,TRIM8#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1601003

AE95

LIGHT GRAY,TRIM1#

 3
74610-1601004

AE95

LIGHT BLUE,TRIM8#

 3
74617A - PLUG, ASSIST GRIP
74617-1601024

AE95

DEEP BLUE,TRIM8#

 6
74617-1601053

AE95

LIGHT GRAY,TRIM1#

 6
74631B - HOOK, COAT
74631-2004013

AE95

GRAY,TRIM1#

 1
74631-2004004

AE95

BLUE,TRIM8#

 1
Common parts
90159-60367
93530-45020

ILLUST NO. 2 OF 2(9009- )

Click highlighted areas on diagram

diagram 74310 74320 74348 74348 74603B 74610A 74610A 74610A 74617A 74631B 9015960367 9353045020 9353045020 9353045020 9353045020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-1A07004

AE95..CND

LIGHT BLUE,TRIM8#

 1
74310-1A07003

AE95..CND

LIGHT GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-1275003

AE95..CND

LIGHT GRAY,TRIM1#

 1
74320-1275004

AE95..CND

LIGHT BLUE,TRIM8#

 1
74348 - HOLDER, VISOR
74348-1202004

AE95

LIGHT BLUE,TRIM8#

 2
74348-1202003

AE95

LIGHT GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-1202004

AE95

LIGHT BLUE,TRIM8#

 2
74348-1202003

AE95

LIGHT GRAY,TRIM1#

 2
74603B - CLIP (FOR ASSIST GRIP)
90467-06048J0

AE95

LIGHT BLUE,TRIM8#

 2
90467-06048B1

AE95

LIGHT GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-1601003

AE95

LIGHT GRAY,TRIM1#

 3
74610-1601004

AE95

LIGHT BLUE,TRIM8#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1601003

AE95

LIGHT GRAY,TRIM1#

 3
74610-1601004

AE95

LIGHT BLUE,TRIM8#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1601003

AE95

LIGHT GRAY,TRIM1#

 3
74610-1601004

AE95

LIGHT BLUE,TRIM8#

 3
74617A - PLUG, ASSIST GRIP
74617-1601024

AE95

DEEP BLUE,TRIM8#

 6
74617-1601053

AE95

LIGHT GRAY,TRIM1#

 6
74631B - HOOK, COAT
74631-2004013

AE95

GRAY,TRIM1#

 1
74631-2004004

AE95

BLUE,TRIM8#

 1
Common parts
90159-60367
93530-45020

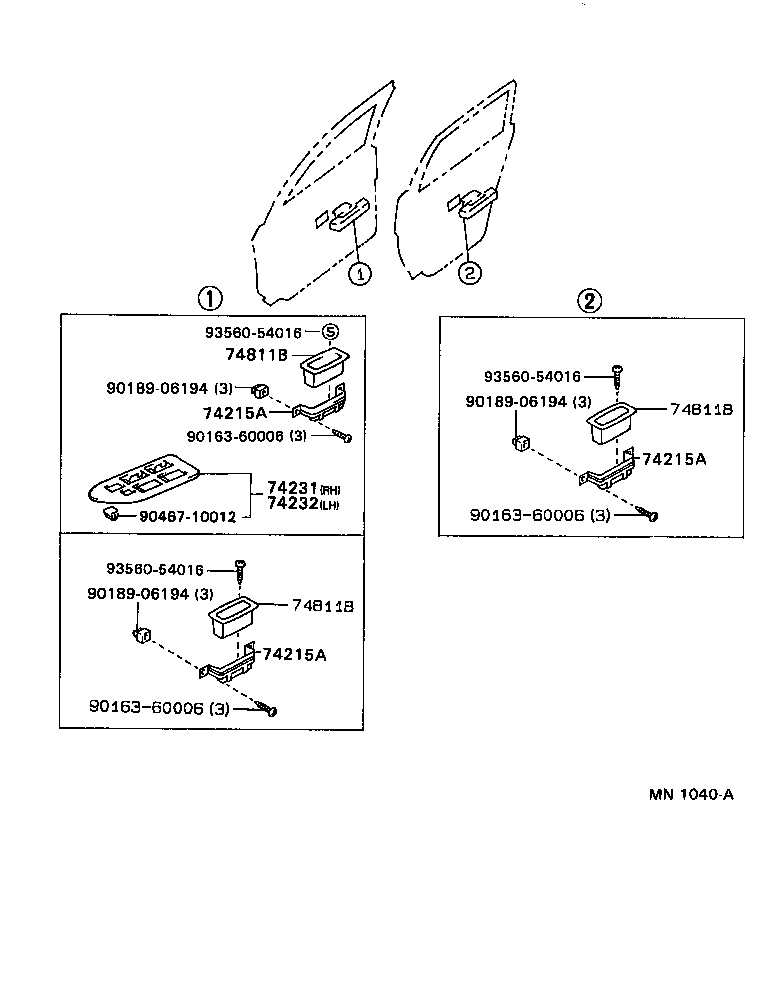

ILLUST NO. 1 OF 2(9009- )

Click highlighted areas on diagram

diagram 74215A 74215A 74215A 74231 74232 74811B 74811B 74811B 9016360006 9016360006 9016360006 9018906194 9018906194 9018906194 9046710012 9356054016 9356054016 9356054016
Part # Description Qty Price
Common parts
90163-60006
90189-06194
90467-10012
93560-54016
