AE95L-CWMDKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1993
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

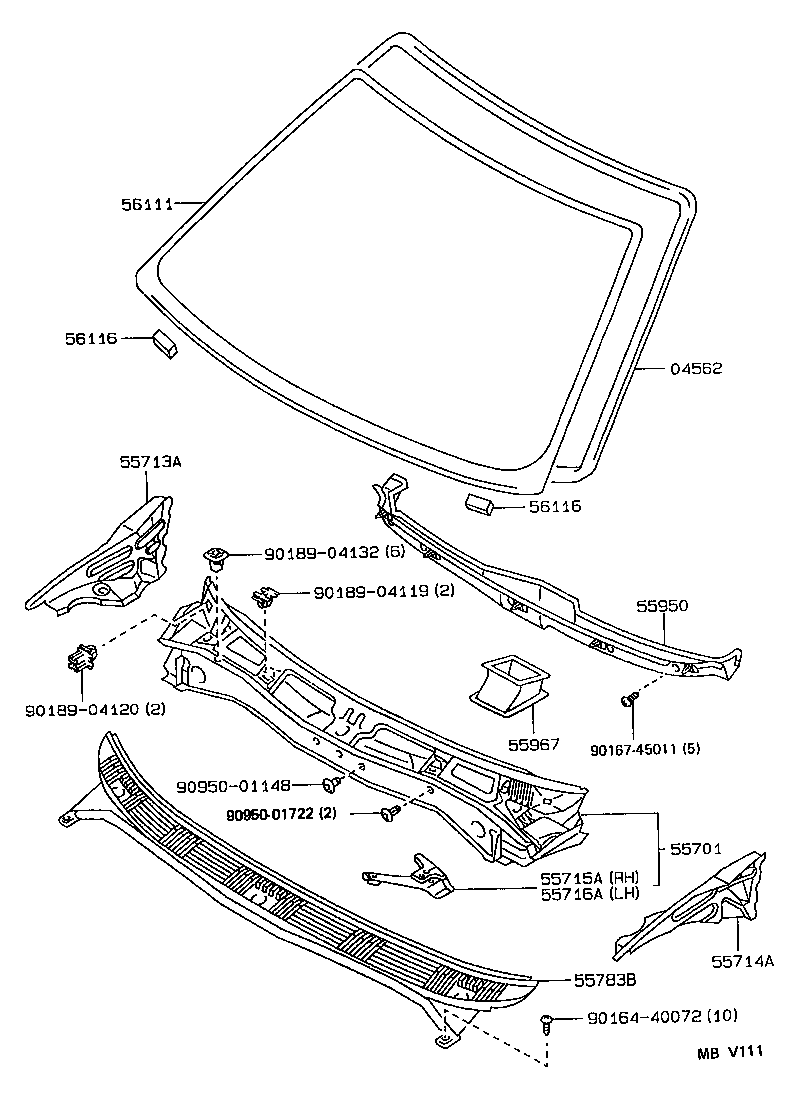

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AE95 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-12540 |
AE95 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-12070 |
AE95 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-12070 |
AE95 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-12090 |
AE95 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-12090 |
AE95 |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55708-12070 |
AE95 |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12110 |
AE95 |
1 | ||
| 55967 - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-12020 |
AE95 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-1A200 |
AE95..DX *TL,T=4.7 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
AE95 |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
AE95 |
2 | ||
| Common parts | ||||
| 90164-40072 | ||||
| 90167-45011 | ||||
| 90189-04119 | ||||
| 90189-04120 | ||||
| 90189-04132 | ||||
| 90950-01148 | ||||
| 90950-01722 | ||||
(9009- )

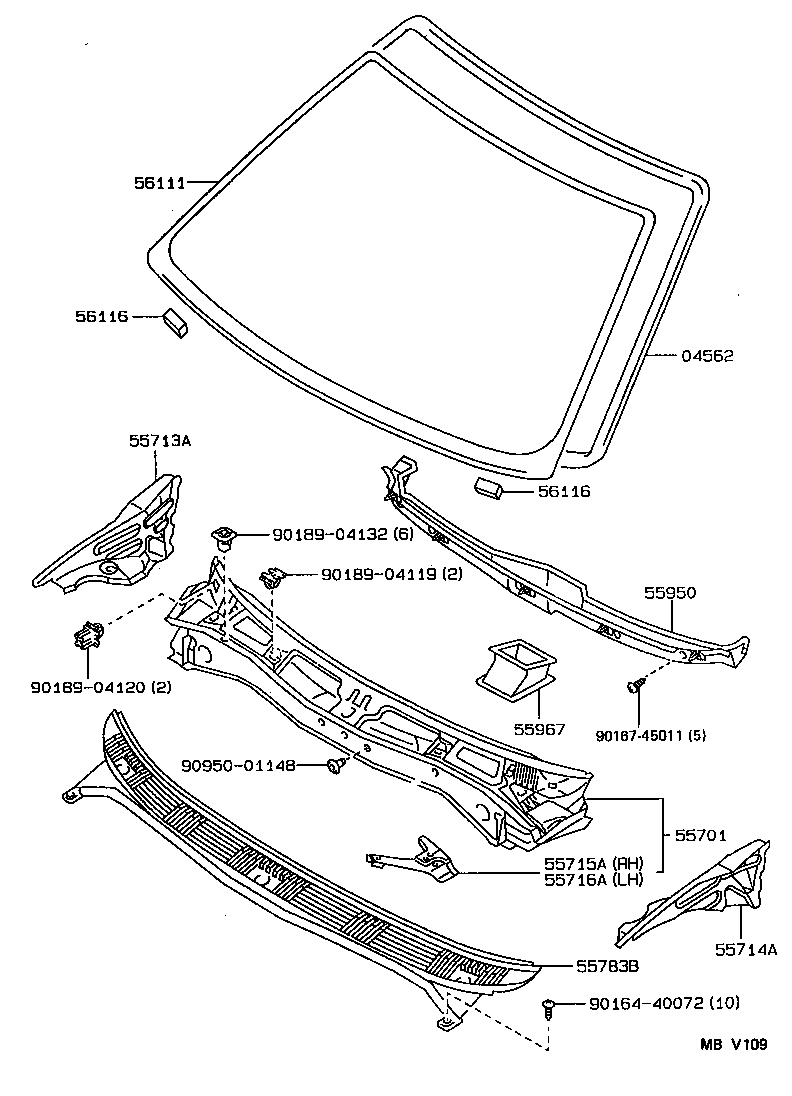

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-40072 | ||||
| 90167-45011 | ||||
| 90189-04119 | ||||
| 90189-04120 | ||||
| 90189-04132 | ||||
| 90950-01148 | ||||
