AE95L-CWMDKK (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1993
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

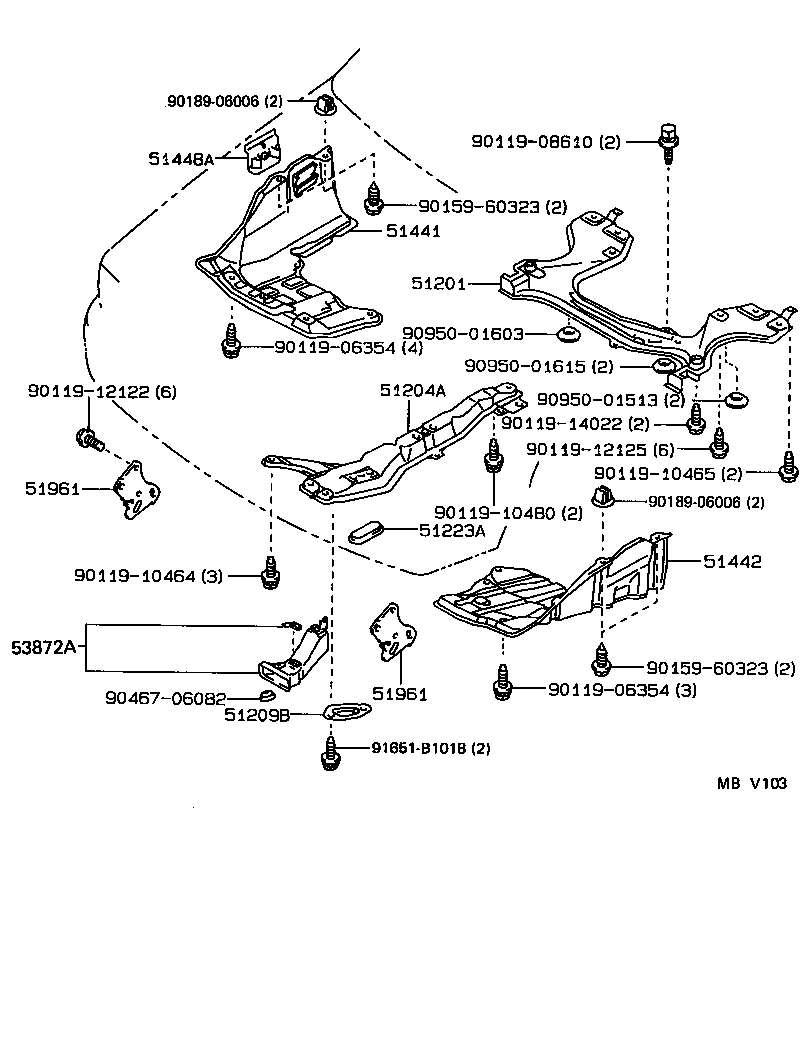

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12290 |
AE95 |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-12070 |
AE95 |
1 | ||
| 51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT | ||||
| 51209-20010 |
AE95 |
1 | ||
| 51223A - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-20020 |
AE95 |
1 | ||
| 51223-20030 |
AE95 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-12120 |
AE95 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12070 |
AE95..5F |
1 | ||
| 51448A - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-20010 |
AE95 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-12170 |
AE95 |
2 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-12170 |
AE95 |
2 | ||
| 53872A - DUCT, AIR, LOWER | ||||
| 53872-12020 |
AE95..5F |
1 | ||
| Common parts | ||||
| 90119-06354 | ||||
| 90119-08610 | ||||
| 90119-10464 | ||||
| 90119-10465 | ||||
| 90119-10480 | ||||
| 90119-12122 | ||||
| 90119-12125 | ||||
| 90119-14022 | ||||
| 90159-60323 | ||||
| 90189-06006 | ||||
| 90467-06082 | ||||
| 90950-01513 | ||||
| 90950-01603 | ||||
| 90950-01615 | ||||
| 91651-B1018 | ||||

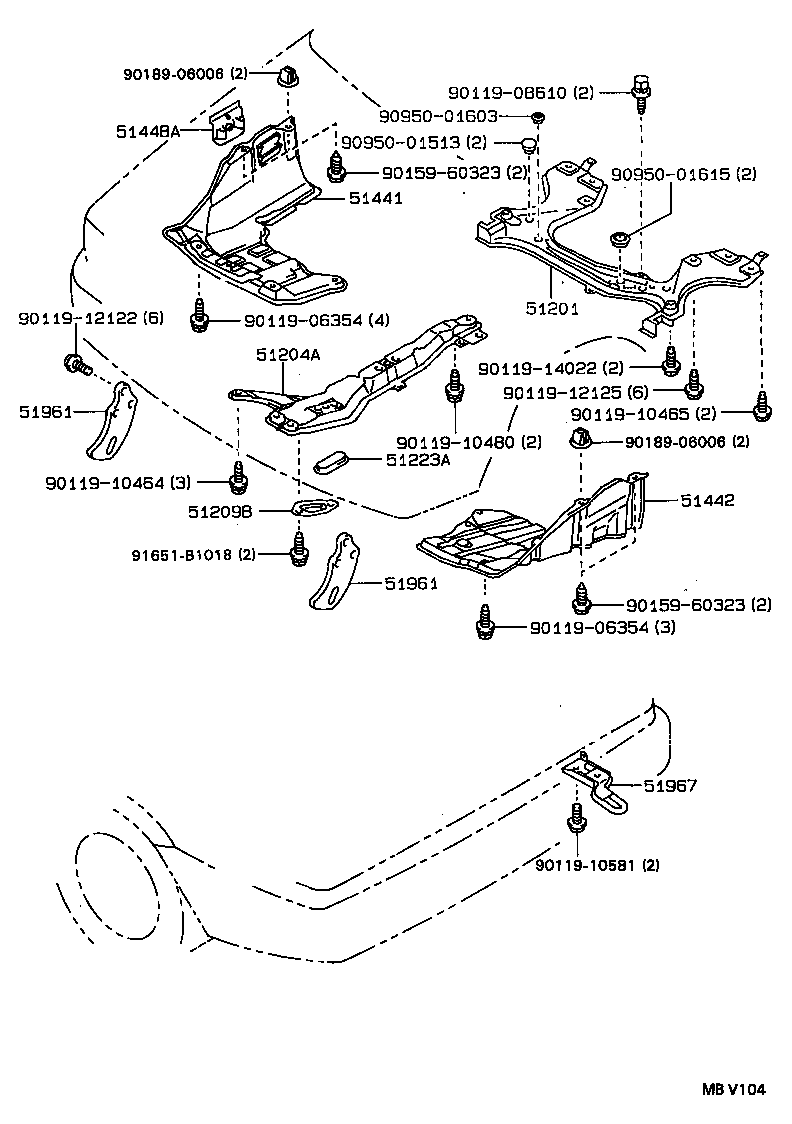

(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06354 | ||||
| 90119-08610 | ||||
| 90119-10464 | ||||
| 90119-10465 | ||||
| 90119-10480 | ||||
| 90119-10581 | ||||
| 90119-12122 | ||||
| 90119-12125 | ||||
| 90119-14022 | ||||
| 90159-60323 | ||||
| 90189-06006 | ||||
| 90950-01513 | ||||
| 90950-01603 | ||||
| 90950-01615 | ||||
| 91651-B1018 | ||||
