AE95L-CWMDKA (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1992
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

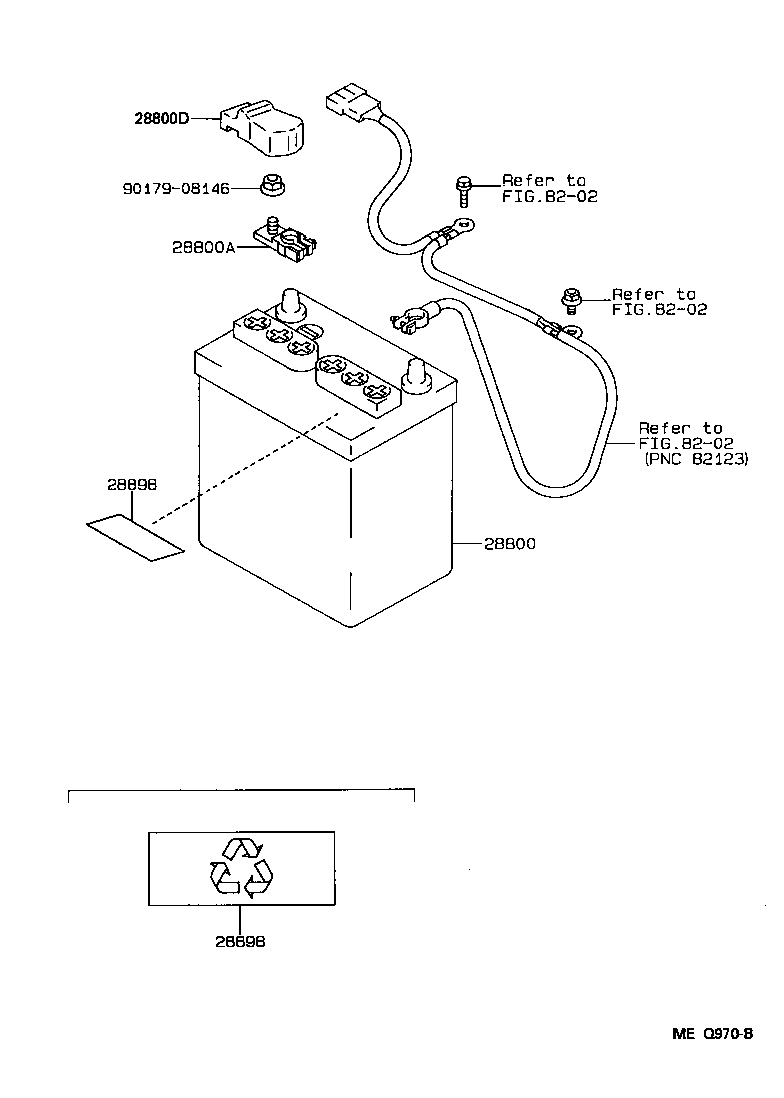

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-70060 |
4AFE..AE95..USA 50D20L |
1 | ||
| 28800-42030 |
4AFE..AE95..USA 55D23L |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05035 |
4AFE..AE95 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-12260 |
4AFE..AE95 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-26010 |
4AFE..AE95..USA |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(9009- )

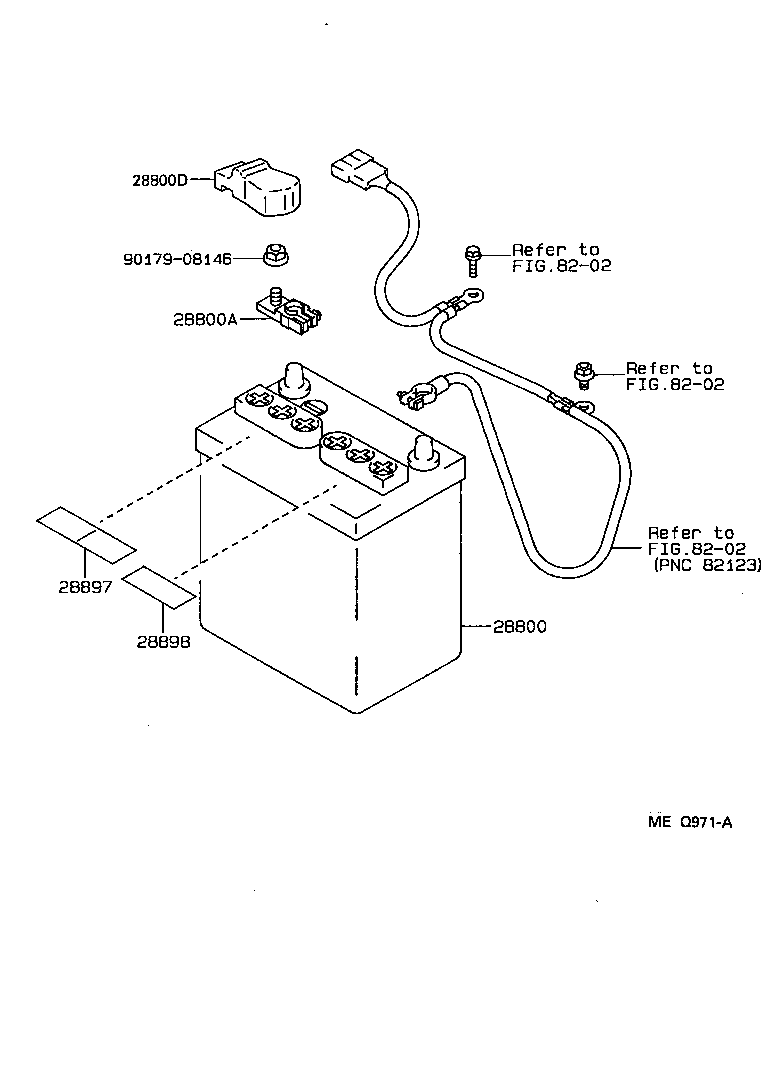

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 8202 | ||||
