ZZE122R-FWPDKW (2001)

Toyota Corolla Verso

Production Sep 2001 - Dec 2003
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

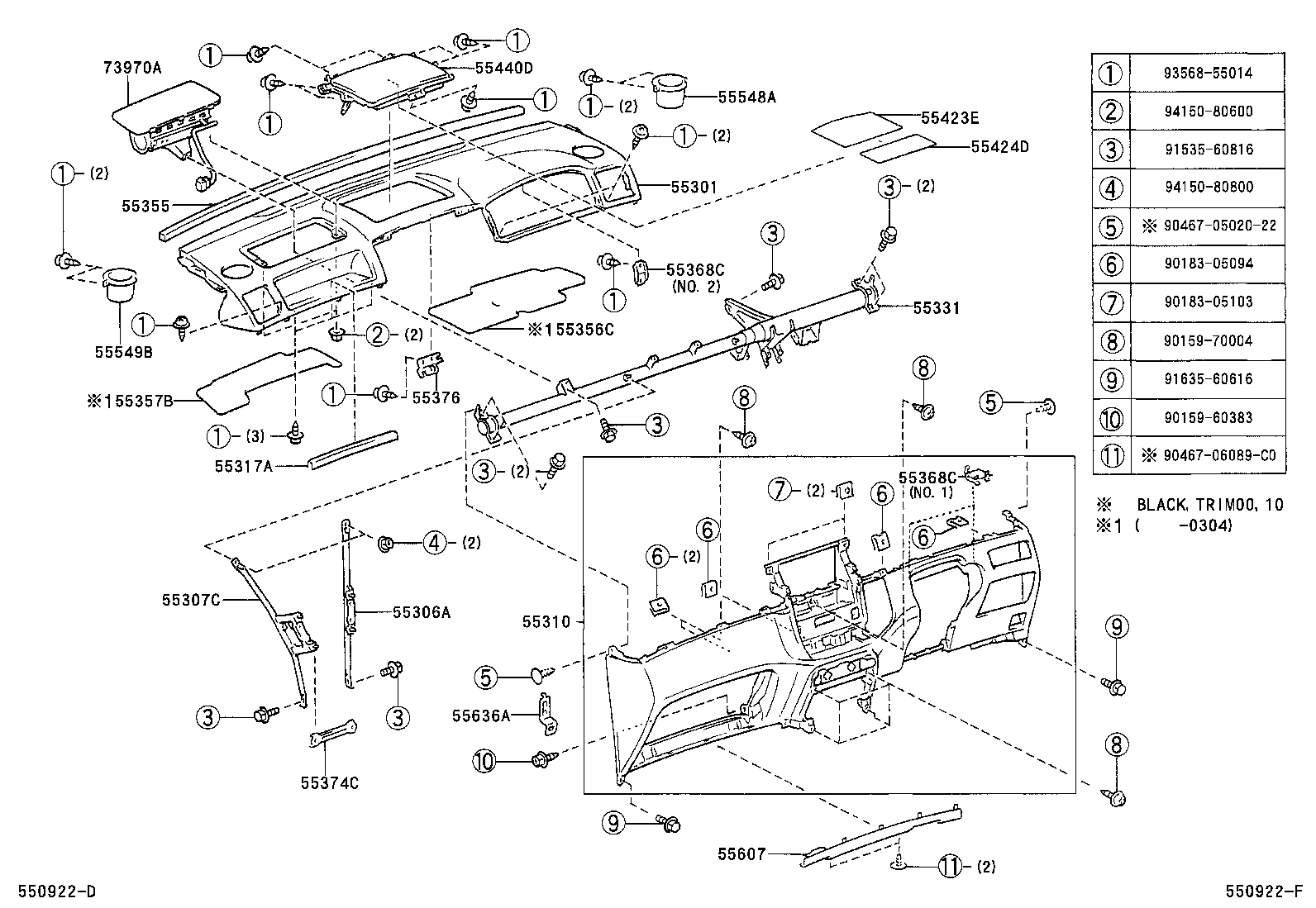

ILLUST NO. 1 OF 2(0109- )RHD

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55310 55317A 55331 55355 55356C 55357B 55368C 55368C 55374C 55376 55423E 55424D 55440D 55548A 55549B 55607 55636A 73970A 9015960383 9015970004 9018305094 9018305103 904670502022 9046706089C0 9153560816 9163560616 9356855014 9415080600 9415080800
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55300-13030B0

CDE120,ZZE12#..RHD..TERRA

DK.GRAY,TRIM1#

 1
55300-13010B0

ZZE122..TERRA

DK.GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-13040

CDE120,ZZE12#..RHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-13020

CDE120,ZZE12#..RHD

 1
55310 - PANEL ASSY, INSTRUMENT, LOWER
55310-13010B1

CDE120,ZZE12#..RHD

DK.GRAY,TRIM1#

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-13060B0

CDE120,ZZE12#..RHD..TERRA

DK.GRAY,TRIM1#

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-13020

CDE120,ZZE12#..RHD

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-52012

CDE120,ZZE12#

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-13050

CDE120,ZZE12#..RHD

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-13050

CDE120,ZZE12#..RHD

 1
55368C - BRACKET, METER MOUNTING
55368-13020

CDE120,ZZE12#

NO.2

 1
55362-12050

CDE120,ZZE12#

NO.1

 2
55368C - BRACKET, METER MOUNTING
55368-13020

CDE120,ZZE12#

NO.2

 1
55362-12050

CDE120,ZZE12#

NO.1

 2
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-13020

CDE120,ZZE12#

 1
55423E - CUSHION, CENTER CLUSTER, NO.1
55423-13010

CDE120,ZZE12#

 1
55424D - CUSHION, CENTER CLUSTER, NO.2
55424-13020

CDE120,ZZE12#

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-13010B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-13050B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55549B - COVER, INSTRUMENT PANEL HOLE, NO.2
55549-13010B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-13030B0

CDE120,ZZE12#..RHD

DK.GRAY,TRIM1#

 1
55636A - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.2
55637-13010

CDE120,ZZE12#..RHD

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-13020B0

CDE120,ZZE12#..RHD..TERRA

DK.GRAY,TRIM1#

 1
Common parts
90159-60383
90159-70004
90183-05094
90183-05103
90467-0502022
90467-06089C0
91535-60816
91635-60616
93568-55014
94150-80600
94150-80800

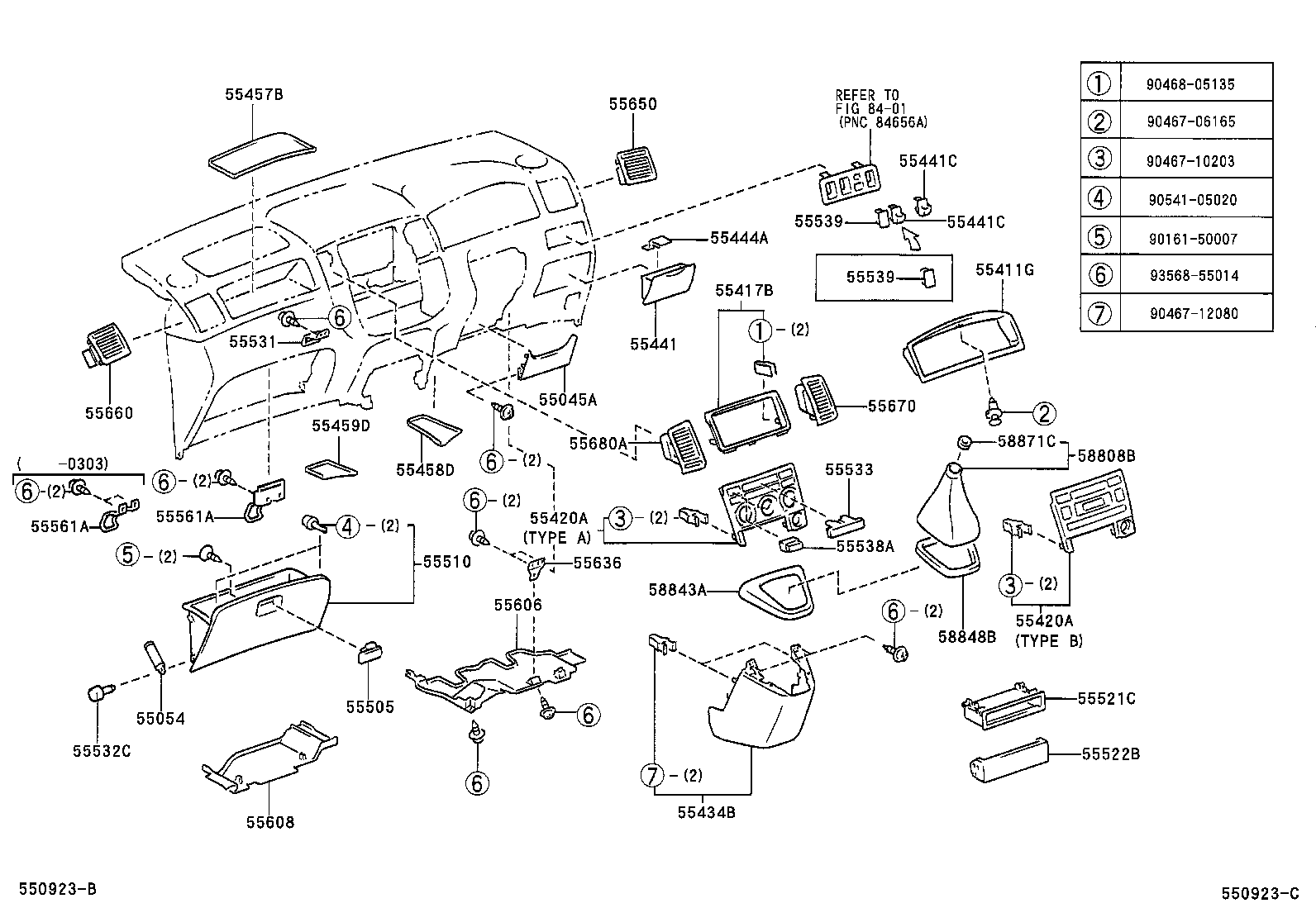

ILLUST NO. 2 OF 2(0109- )RHD

Click highlighted areas on diagram

diagram 55045A 55054 55411G 55417B 55420A 55420A 55434B 55441 55441C 55441C 55444A 55457B 55458D 55459D 55505 55510 55521C 55522B 55531 55532C 55533 55538A 55539 55539 55561A 55606 55608 55636 55650 55660 55670 55680A 58808B 58843A 58848B 58871C 8401 9016150007 9046706165 9046710203 9046712080 9046805135 9054105020 9356855014
Part # Description Qty Price
55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH
55045-13040B0

CDE120,ZZE12#..RHD

DK.GRAY,TRIM1#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-12010

CDE120,ZZE12#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-13020B0

CDE120,ZZE12#..RHD..TERRA

DK.GRAY,TRIM1#

 1
55417B - RETAINER, RADIO TUNER FINISH
55417-13010B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-13010B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-13010B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55441 - BOX, INSTRUMENT PANEL
55441-12150B1

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-20140B7

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-20140B7

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
55444A - SPRING, INSTRUMENT PANEL BOX
55444-12080

CDE120,ZZE12#

 1
55457B - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-13010

CDE120,ZZE12#..RHD

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-13010

CDE120,ZZE12#..RHD

 1
55459D - COVER, INSTRUMENT, LOWER LH
55459-13010

CDE120,ZZE12#..RHD

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55506-33030B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-13020B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-16030

ZZE122..RHD..ATM

 1
55522B - COVER, RADIO TUNER OPENING
55522-12180

ZZE122..RHD..ATM

 1
55531 - PANEL, GLOVE COMPARTMENT
55531-13010

CDE120,ZZE12#..RHD

 1
55532C - STOPPER, GLOVE DOOR
55532-13010

CDE120,ZZE12#

 1
55533 - COVER, AUTO CLOCK HOLE
55533-13010

CDE120,ZZE12#

 1
55538A - COVER, COOLER SWITCH HOLE
55538-12100

CDE120,ZZE12#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-32010P3

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-32010P3

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-13030

CDE120,ZZE12#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-13010

CDE120,ZZE12#..RHD

 1
55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3
55608-13010

CDE120,ZZE12#..RHD

 1
55636 - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1
55636-13010

CDE120,ZZE12#..RHD

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-13040B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-13040B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-13040B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-13030B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
58843A - BEZEL, SHIFTING HOLE
58843-13010B0

CDE120,ZZE12#..RHD

DK.GRAY,TRIM1#

 1
Common parts
90161-50007
90467-06165
90467-10203
90467-12080
90468-05135
90541-05020
93568-55014
Linked diagrams
8401
