ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

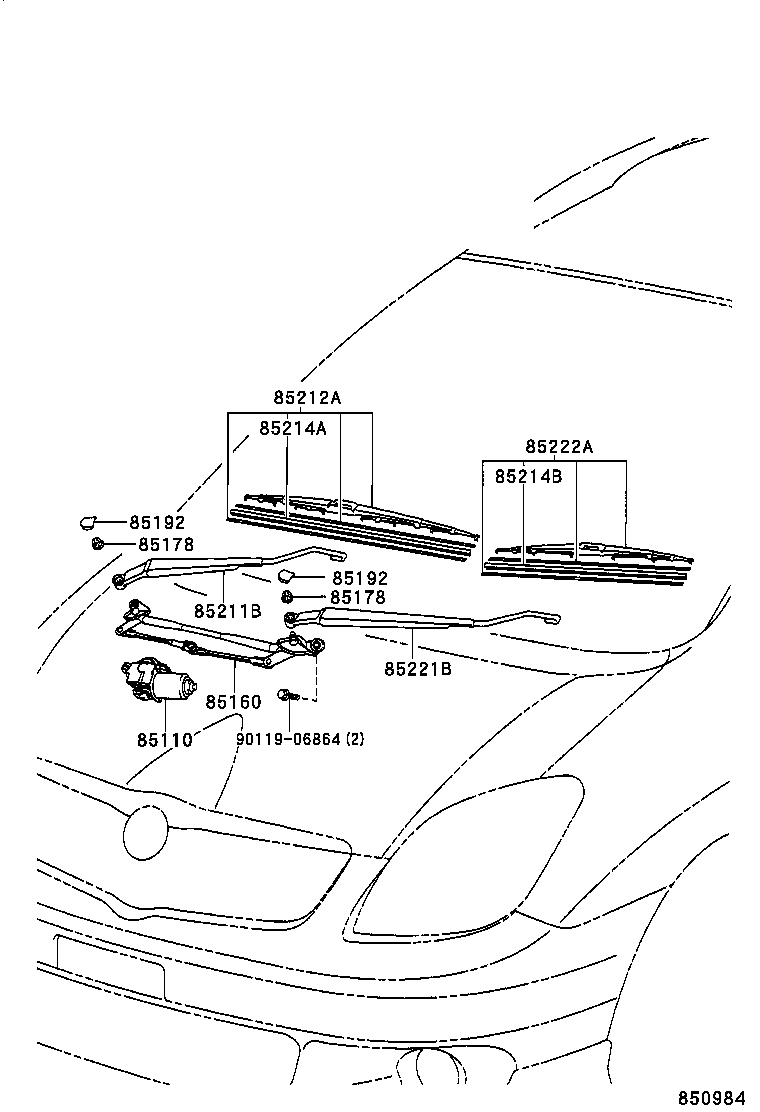

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 9011906864
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-13100

CDE120,ZZE12#..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-13080

CDE120,ZZE12#..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

CDE120,ZZE12#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

CDE120,ZZE12#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

CDE120,ZZE12#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

CDE120,ZZE12#

 2
85211B - ARM, FRONT WIPER, RH
85211-13050

CDE120,ZZE12#..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-13030

CDE120,ZZE12#..LHD

 1
85214A - RUBBER, WIPER, RH
85214-50060

CDE120,ZZE12#..LHD

 1
85214B - RUBBER, WIPER, LH
85214-44140

CDE120,ZZE12#..LHD

 1
85221B - ARM, FRONT WIPER, LH
85221-13060

CDE120,ZZE12#..LHD

 1
85222A - BLADE, FR WIPER, LH
85222-44070

CDE120,ZZE12#..LHD

 1
Common parts
90119-06864
