ZZE122L-FWPDKW (2001)
Toyota Corolla Verso
Production
Oct 2001
-
Jan 2004
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0109- )LHD

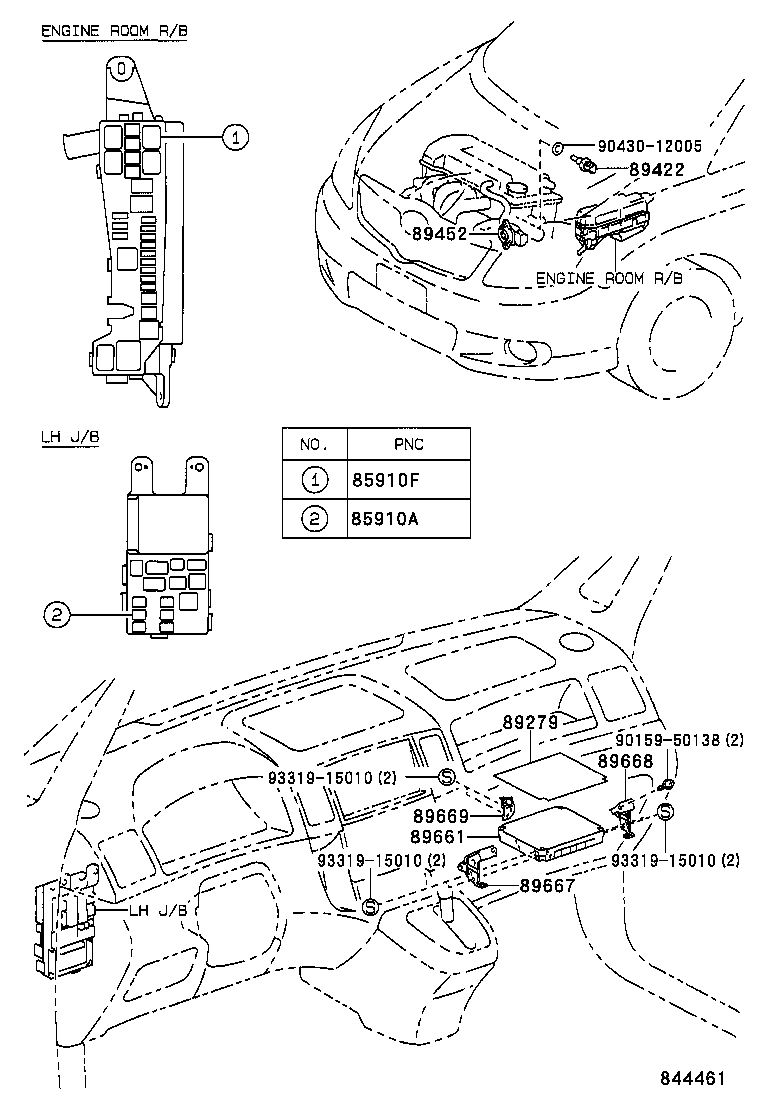

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02020 |
ZZE12# |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02020 |
ZZE12# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12150 |
ZZE12#;CDE120..LHD |
1 | ||
| 89279-12150 |
ZZE12# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
ZZE12# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20130 |
ZZE12# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-13160 |
ZZE122..LHD..ATM PART NUMBER LABEL=89661-13160 |
1 | ||
| 89661-13090 |
ZZE122..LHD..ATM PART NUMBER LABEL=89661-13090 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12190 |
ZZE12#..LHD |
1 | ||
| 89667-12190 |
CDE120,ZZE12#..LHD |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-12100 |
CDE120,ZZE12#..LHD |
1 | ||
| 89668-12100 |
ZZE12#..LHD |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-12030 |
ZZE12# |
1 | ||
| 89669-12030 |
ZZE12#;CDE120..LHD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
