ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

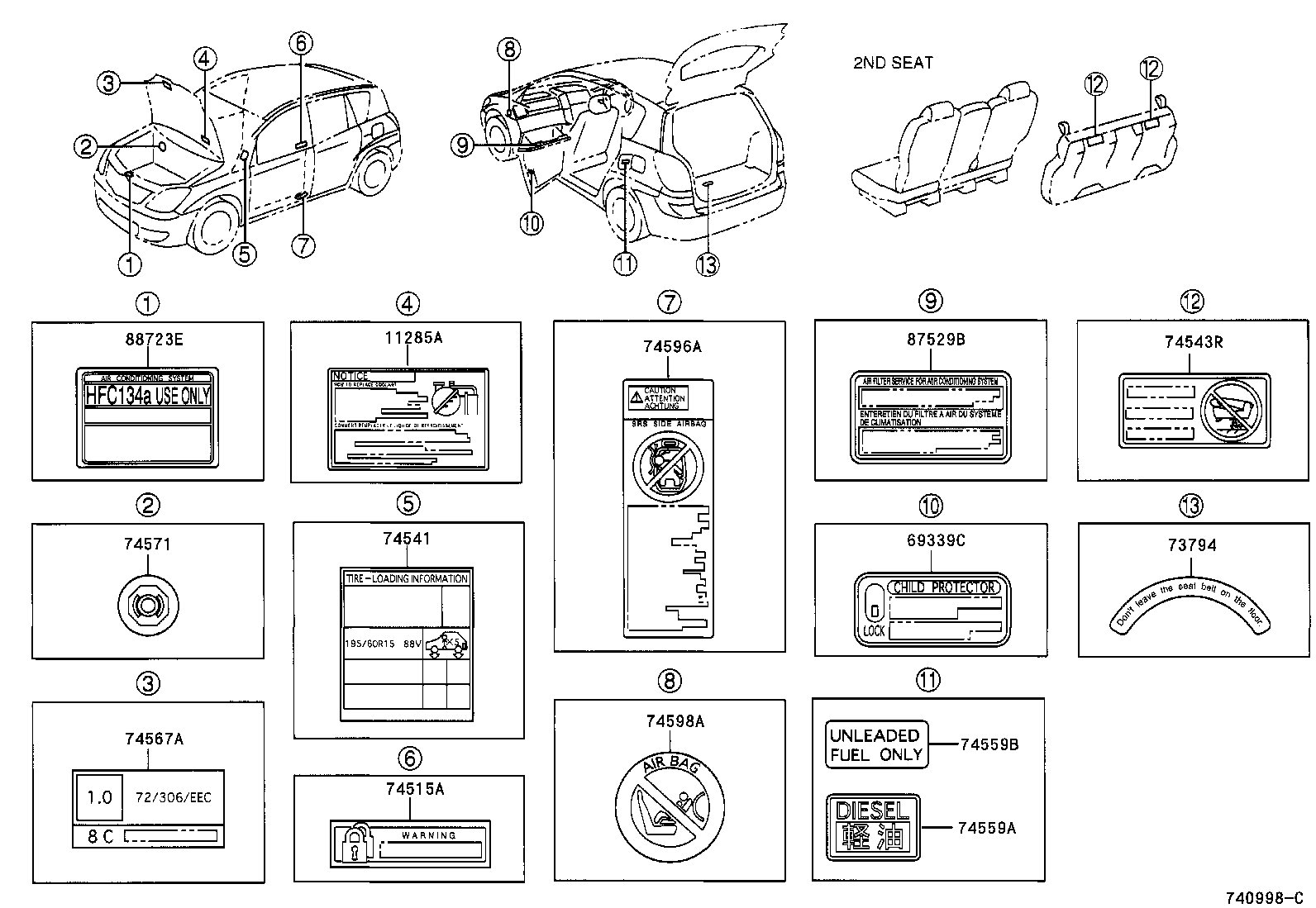

Click highlighted areas on diagram

diagram 11285A 69339C 73794 74515A 74541 74543R 74559A 74559B 74567A 74571 74596A 74598A 87529B 88723E
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

CDE120,ZZE12#

 2
73794 - LABEL, REAR SEAT BELT NOTICE
73794-13030

CDE120,ZZE12#

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-13180

CDE120,ZZE12#

 1
74543R - LABEL, REAR SEAT CAUTION
74543-13240

CDE120,ZZE12#

 2
74559B - LABEL, FUEL INFORMATION
74559-14050

ZZE12#

 1
74571 - PLATE, BRAKE FLUID CAUTION
47287-12010

CDE120,ZZE12#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12020

CDE120,ZZE12#

 2
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-30040

CDE120,ZZE12#

 1
74598-20010

CDE120,ZZE12#

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

CDE120,ZZE12#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

CDE120,ZZE12#

 1
