ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

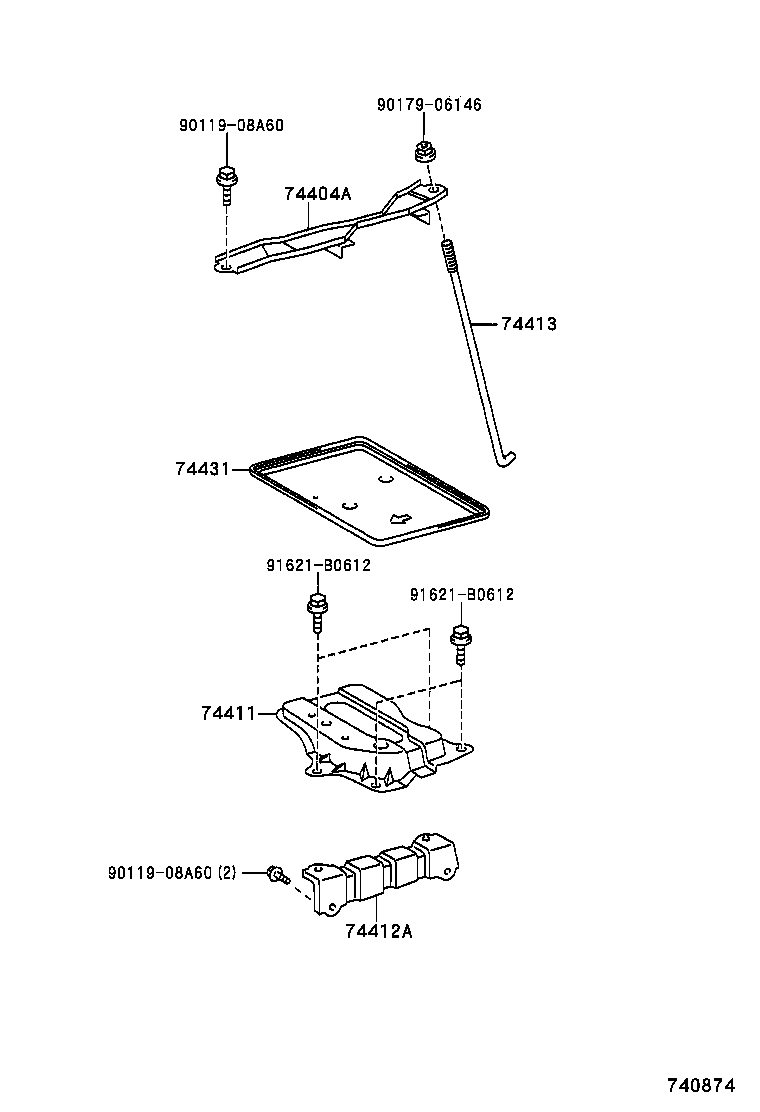

Click highlighted areas on diagram

diagram 74404A 74411 74412A 74413 74431 9011908A60 9011908A60 9017906146 91621B0612 91621B0612
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-12410

ZZE12#

BATTERY=46B24L OR 32B24L

 1
74404-13030

ZZE12#

BATTERY=50D20L

 1
74411 - CARRIER, BATTERY
74411-12140

CDE120,ZZE12#

 1
74412A - CARRIER, BATTERY, NO.2
74412-12020

CDE120,ZZE12#

 1
74413 - BOLT, BATTERY CLAMP
74451-12130

CDE120,ZZE12#

 1
74431 - TRAY, BATTERY
74431-12090

ZZE12#

BATTERY=50D20L

 1
74431-12060

ZZE12#

BATTERY=46B24L OR 32B24L

 1
Common parts
90119-08A60
90179-06146
91621-B0612
