ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

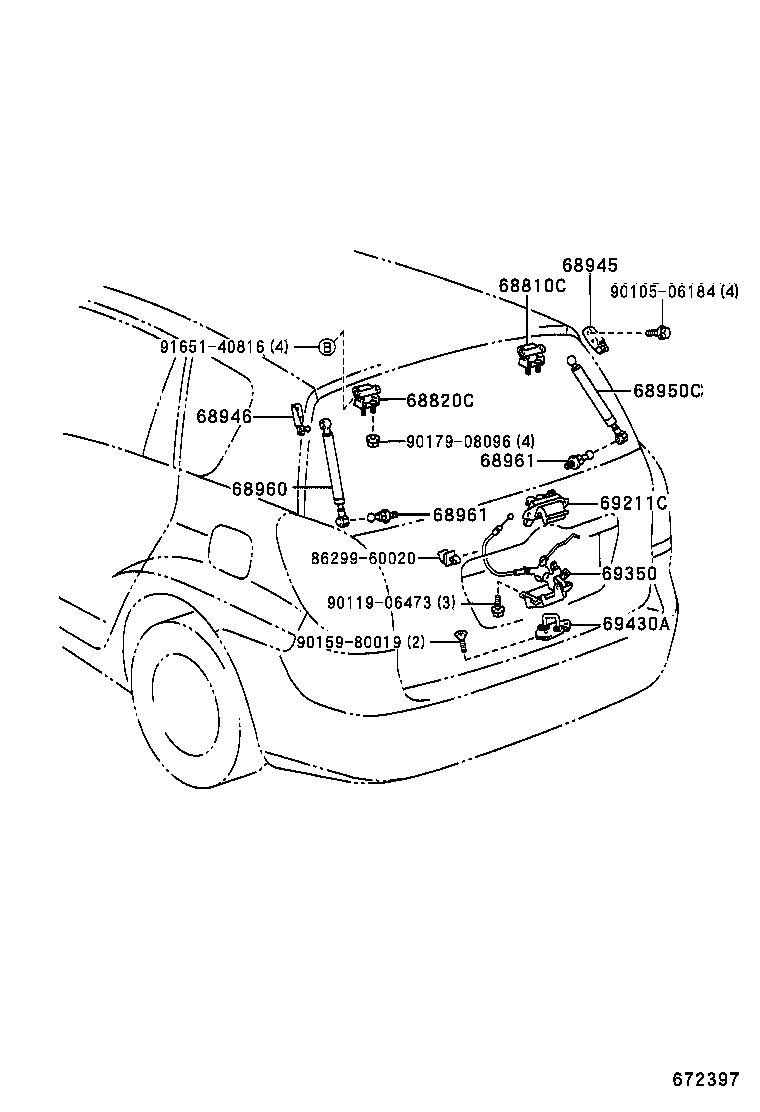

Click highlighted areas on diagram

diagram 68810C 68820C 68945 68946 68950C 68960 68961 68961 69211C 69350 69430A 8629960020 9010506184 9011906473 9015980019 9017908096 9165140816
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-21050

CDE120,ZZE12#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-21050

CDE120,ZZE12#

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-13040

CDE120,ZZE12#

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-13040

CDE120,ZZE12#

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0W101

CDE120,ZZE12#

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-0W091

CDE120,ZZE12#

 1
68961 - BOLT, BACK DOOR STAY
68961-87003

CDE120,ZZE12#

 2
68961 - BOLT, BACK DOOR STAY
68961-87003

CDE120,ZZE12#

 2
69211C - HANDLE, BACK DOOR OUTSIDE
69023-13020

CDE120,ZZE12#

 1
69350 - LOCK ASSY, BACK DOOR
69350-13260

CDE120,ZZE12#

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-52020

CDE120,ZZE12#

 1
Common parts
86299-60020
90105-06184
90119-06473
90159-80019
90179-08096
91651-40816
