ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

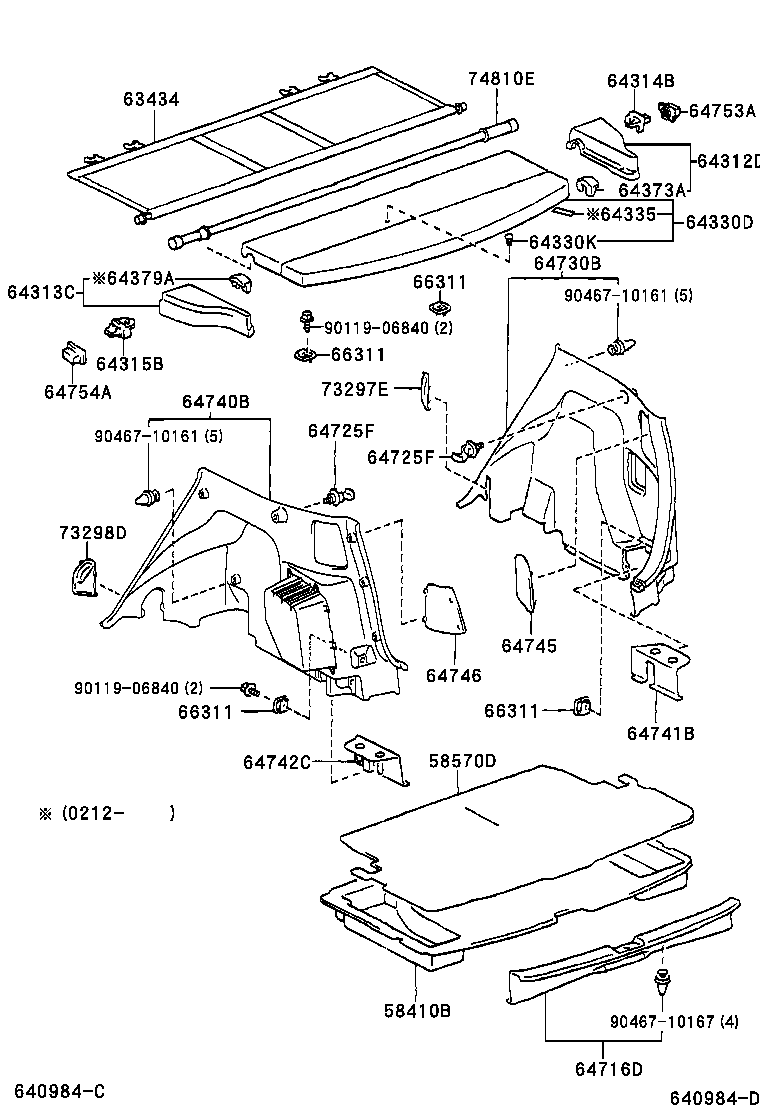

Click highlighted areas on diagram

diagram 58410B 58570D 63434 64312D 64313C 64314B 64315B 64330D 64330K 64335 64373A 64379A 64716D 64725F 64725F 64730B 64740B 64741B 64742C 64745 64746 64753A 64754A 66311 66311 66311 66311 73297E 73298D 74810E 9011906840 9011906840 9046710161 9046710161 9046710167
Part # Description Qty Price
58410B - BOARD ASSY, DECK
58410-13140

CDE120,ZZE12#

 1
58570D - CARPET ASSY, REAR FLOOR
58570-13270B0

CDE120,ZZE12#

GRAY,TRIM1#

 1
63434 - NET, ROOM RACK
63434-13050B1

CDE120,ZZE12#

DARK GRAY,TRIM1#

 1
64312D - BRACKET, PACKAGE TRAY, RH
64312-13010B0

CDE120,ZZE12#

DARK GRAY,TRIM1#

 1
64312-13011B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64313C - BRACKET, PACKAGE TRAY, LH
64313-13011B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64313-13010B0

CDE120,ZZE12#

DARK GRAY,TRIM1#

 1
64314B - REINFORCEMENT, PACKAGE TRAY BRACKET, RH
64314-13011

CDE120,ZZE12#

 1
64314-13010

CDE120,ZZE12#

 1
64315B - REINFORCEMENT, PACKAGE TRAY BRACKET, LH
64315-13010

CDE120,ZZE12#

 1
64315-13011

CDE120,ZZE12#

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-13030B2

CDE120,ZZE12#

DARK GRAY,TRIM1#

 1
64330-13031B2

CDE120,ZZE12#

DARK GRAY,TRIM1#

 1
64330K - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-07083B1

CDE120,ZZE12#

DK.GRAY,TRIM1#

 28
64335 - PAD, PACKAGE TRAY TRIM SILENCER, REAR
64335-13010B0

CDE120,ZZE12#

DARK.GRAY,TRIM1#

 2
64373A - STOPPER, PACKAGE TRAY TRIM
64373-13010B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64379A - STOPPER, PACKAGE TRAY TRIM, LH
64379-13010B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64716D - COVER, DECK TRIM, REAR
64716-13150B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-13010B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-13010B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-13230B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-13160B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64741B - BOX, DECK SIDE TRIM, RH
64741-13030B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64742C - BOX, DECK SIDE TRIM, LH
64742-13030B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-13020B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-13030B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
64753A - GARNISH, DECK SIDE, REAR, RH
64753-13010

CDE120,ZZE12#

 1
64754A - GARNISH, DECK SIDE, REAR, LH
64754-13010

CDE120,ZZE12#

 1
66311 - HOOK, ROPE
66310-13010

CDE120,ZZE12#

 4
66311 - HOOK, ROPE
66310-13010

CDE120,ZZE12#

 4
66311 - HOOK, ROPE
66310-13010

CDE120,ZZE12#

 4
66311 - HOOK, ROPE
66310-13010

CDE120,ZZE12#

 4
73297E - COVER, DECK TRIM SIDE BELT HOLE, RH
73297-13040B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
73298D - COVER,DECK TRIM SIDE BELT HOLE, LH
73298-13040B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 1
74810E - BAR ASSY, SEPARATOR
74810-13020

CDE120,ZZE12#

 1
Common parts
90119-06840
90467-10161
90467-10167
