ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

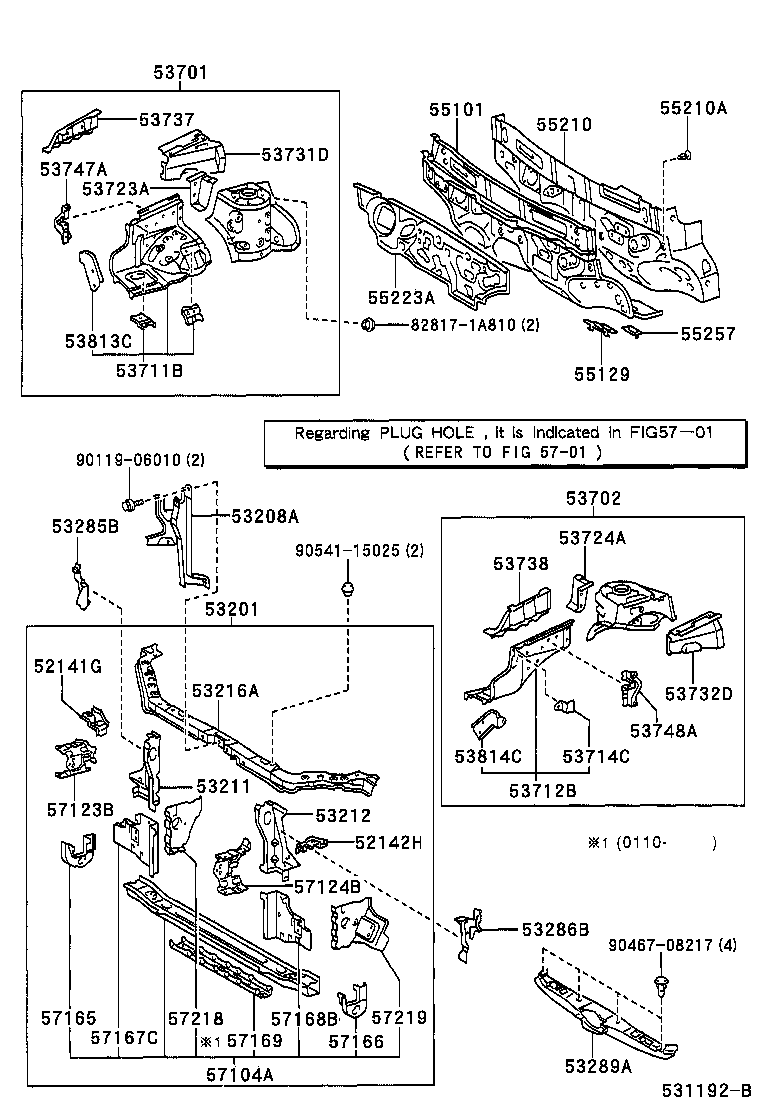

Click highlighted areas on diagram

diagram 52141G 52142H 53201 53208A 53211 53212 53216A 53285B 53286B 53289A 53701 53702 53711B 53712B 53714C 53723A 53724A 53731D 53732D 53737 53738 53747A 53748A 53813C 53814C 55101 55129 55210 55210A 55223A 55257 5701 57104A 57123B 57124B 57165 57166 57167C 57168B 57169 57218 57219 828171A810 9011906010 9046708217 9054115025
Part # Description Qty Price
52141G - STAY, FRONT BUMPER, RH
52141-13040

CDE120,ZZE12#

 1
52142H - STAY, FRONT BUMPER, LH
52142-13040

CDE120,ZZE12#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-13050

CDE120,ZZE12#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-13050

CDE120,ZZE12#

 1
53211 - SUPPORT, RADIATOR, RH
53211-12410

CDE120,ZZE12#

 1
53212 - SUPPORT, RADIATOR, LH
53212-12350

CDE120,ZZE12#

 1
53216A - SUPPORT, RADIATOR, UPPER
53216-13900

CDE120,ZZE12#

 1
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-13010

CDE120,ZZE12#

 1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-13010

CDE120,ZZE12#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-13010

CDE120,ZZE12#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-13050

CDE120,ZZE12#..LHD

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-13030

CDE120,ZZE12#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-13902

CDE120,ZZE12#

 1
53711-13900

CDE120,ZZE12#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-13902

CDE120,ZZE12#

 1
53712-13900

CDE120,ZZE12#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-13020

CDE120,ZZE12#

 1
53714-12150

CDE120,ZZE12#

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-12080

CDE120,ZZE12#

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53724-12070

CDE120,ZZE12#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12160

CDE120,ZZE12#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12140

CDE120,ZZE12#

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-13020

CDE120,ZZE12#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-13020

CDE120,ZZE12#

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-13010

CDE120,ZZE12#

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-13010

CDE120,ZZE12#

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-13010

CDE120,ZZE12#

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-13010

CDE120,ZZE12#

 1
55101 - PANEL SUB-ASSY, DASH
55101-13200

ZZE122..LHD..ATM

 1
55129 - COVER, DASH PANEL HOLE
55139-32010

CDE120,ZZE12#

LH

 1
55129-32030

CDE120,ZZE12#

RH

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-13030

CDE120,ZZE12#..LHD

 1
55210A - CLIP
90467-10005B0

CDE120,ZZE12#..TERRA

MD.CHARCOAL,TRIM1#

 2
90467-10005C0

CDE120,ZZE12#..TERRA

BLACK,TRIM1#

 2
55223A - INSULATOR, DASH PANEL, OUTER
55223-13010

CDE120,ZZE12#..LHD

 1
55257 - COVER, DASH PANEL OPENING
55257-32010

CDE120,ZZE12#

 2
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-12110

ZZE122

 1
57104-12250

CDE120,ZZE12#

 1
57104-12170

CDE120,ZZE12#

 1
57123B - SUPPORT, FRONT SIDE MEMBER, RH
57123-13010

CDE120,ZZE12#

 1
57124B - SUPPORT, FRONT SIDE MEMBER, LH
57124-13010

CDE120,ZZE12#

 1
57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57165-12070

CDE120,ZZE12#

 1
57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57166-12020

CDE120,ZZE12#

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-12110

CDE120,ZZE12#

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-12110

CDE120,ZZE12#

 1
57169 - MEMBER, FRONT FLOOR, FRONT RH
57169-12020

CDE120,ZZE12#

 1
57218 - GUSSET, FRONT SIDE MEMBER, NO.1
57218-12030

CDE120,ZZE12#

 1
57218-12010

ZZE122

 1
57218-12020

CDE120,ZZE12#

 1
57219 - GUSSET, FRONT SIDE MEMBER, NO.2
57219-12010

CDE120,ZZE12#

 1
57219-12030

CDE120,ZZE12#

 1
Common parts
82817-1A810
90119-06010
90467-08217
90541-15025
Linked diagrams
5701
