ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

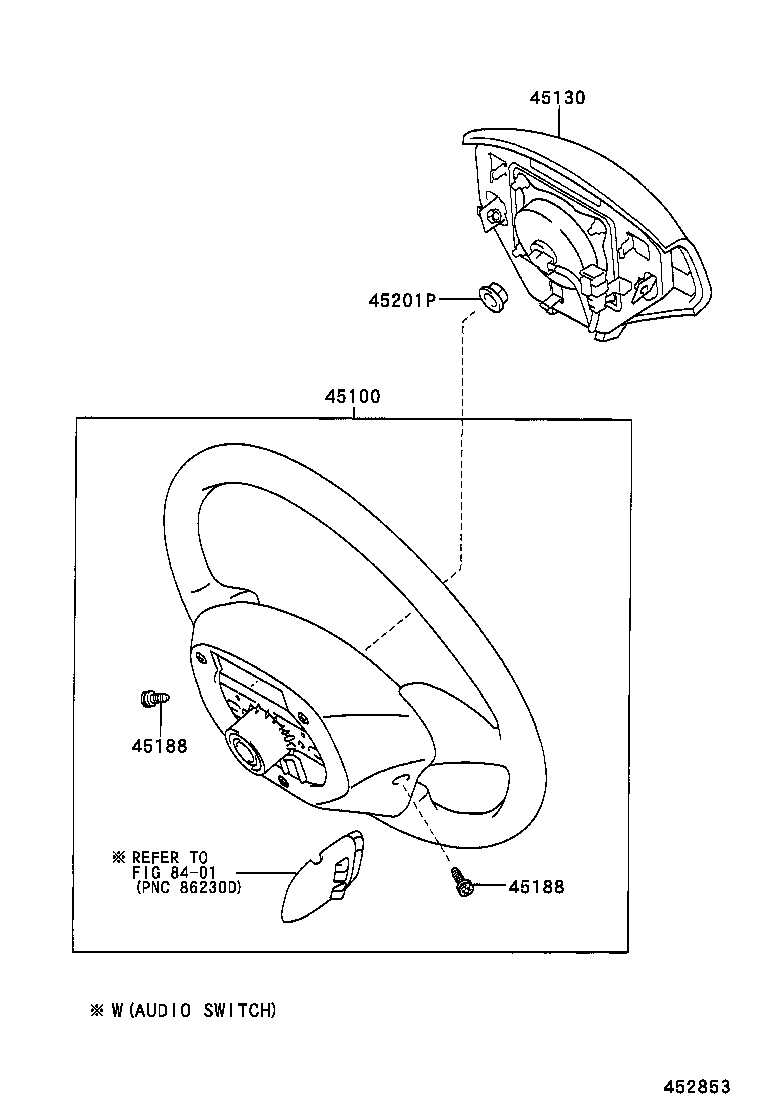

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45188 45188 45201P 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-13030B0

CDE120,ZZE12#..TERRA

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-13040B0

CDE120,ZZE12#..TERRA

3-SPOKE,URETHANE,W(AUDIO SWITCH),DK.GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-13040B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

CDE120,ZZE12#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

CDE120,ZZE12#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

CDE120,ZZE12#

 1
Linked diagrams
8401
