ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

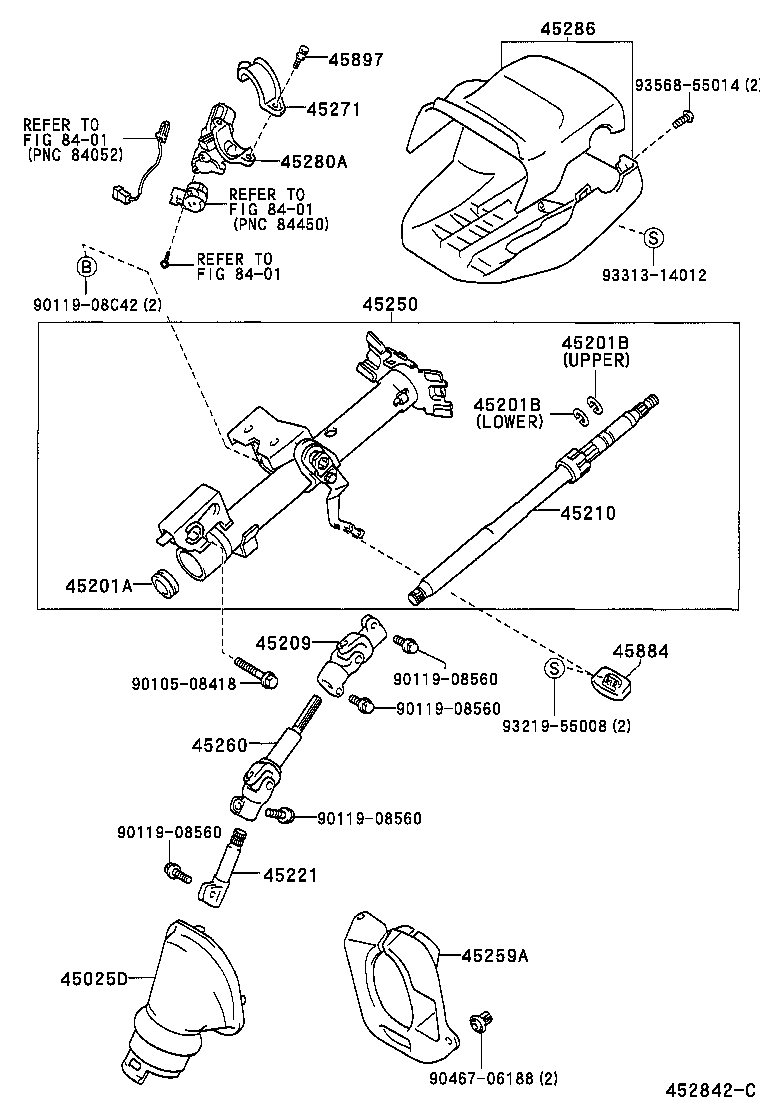

Click highlighted areas on diagram

diagram 45025D 45201A 45201B 45201B 45209 45210 45221 45250 45259A 45260 45271 45280A 45286 45884 45897 8401 8401 8401 9010508418 9011908560 9011908560 9011908560 9011908560 9011908C42 9046706188 9321955008 9331314012 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-13040

CDE120,ZZE12#..LHD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-42010

CDE120,ZZE12#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

CDE120,ZZE12#

T=1.20,UPPER

 1
90520-17042

CDE120,ZZE12#

T=1.20,LOWER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

CDE120,ZZE12#

T=1.20,UPPER

 1
90520-17042

CDE120,ZZE12#

T=1.20,LOWER

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12180

CDE120,ZZE12#..LHD

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-13010

CDE120,ZZE12#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12290

CDE120,ZZE12#

 1
45250 - COLUMN ASSY, STEERING
45250-13070

CDE120,ZZE12#

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12030

CDE120,ZZE12#..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-13040

CDE120,ZZE12#..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

CDE120,ZZE12#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-13020

ZZE122..ATM

 1
45286 - COVER, STEERING COLUMN
45286-13902B1

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
45884 - BRACKET, TILT LEVER
45884-13010

CDE120,ZZE12#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

CDE120,ZZE12#

 2
Common parts
90105-08418
90119-08560
90119-08C42
90467-06188
93219-55008
93313-14012
93568-55014
