Toyota Corolla verso ZZE122 FRONT DRIVE SHAFT

ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0109- )ZZE12#

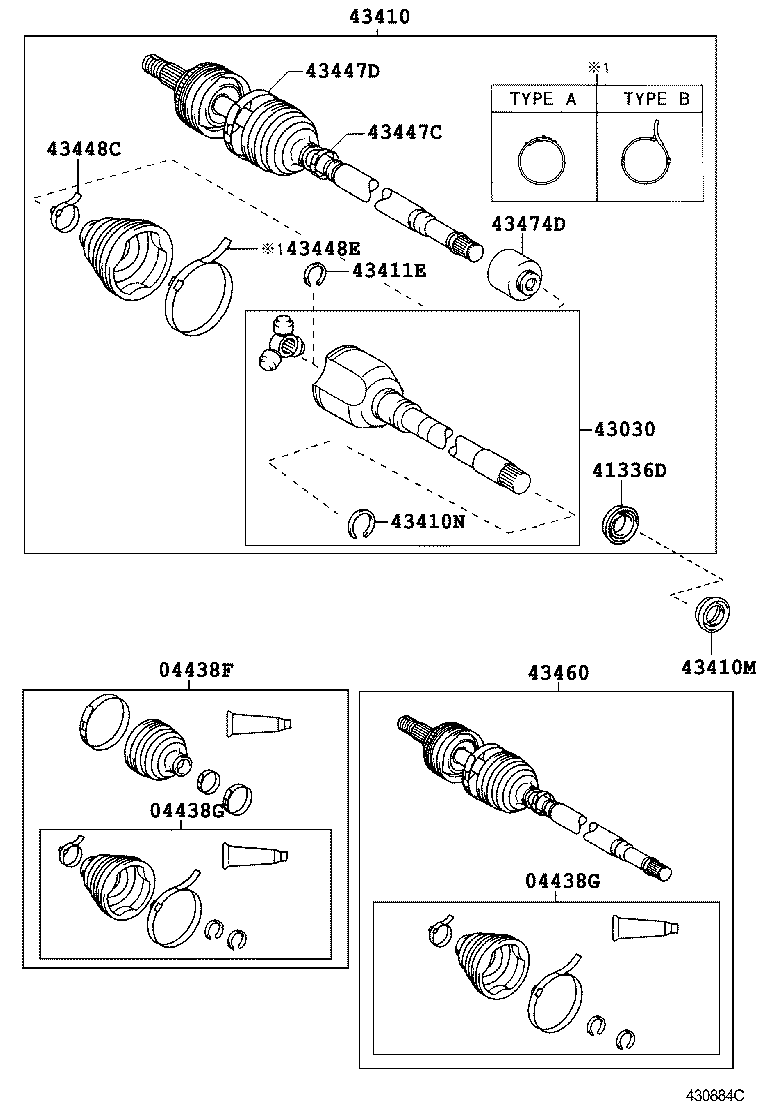

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-12481	ZZE122	09/2001 - 01/2004	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-12470	ZZE122	09/2001 - 01/2004	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-12470	ZZE122	09/2001 - 01/2004	1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12060	ZZE122	09/2001 - 01/2004	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-12670	ZZE122	09/2001 - 01/2004	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35045	ZZE122..ATM	09/2001 - 01/2004	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-27005	ZZE122	09/2001 - 01/2004	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005	ZZE12#	09/2001 - 01/2004	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150	ZZE12# ID=29.6	09/2001 - 01/2004	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140	ZZE12# ID=92.0	09/2001 - 01/2004	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078	ZZE12#	09/2001 - 01/2004	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01076	ZZE12# TYPE B:REFER TO ILLUSTRATION,ORANGE MARK	09/2001 - 01/2004	1
90949-01946	ZZE12# TYPE B:REFER TO ILLUSTRATION,NO MARK	09/2001 - 01/2004	1
42345-12160	CDE120,ZZE12# TYPE A:REFER TO ILLUSTRATION	02/2002 - 01/2004	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-80004	ZZE122	09/2001 - 01/2004	1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-12120	ZZE12#	09/2001 - 01/2004	1

(0109- )

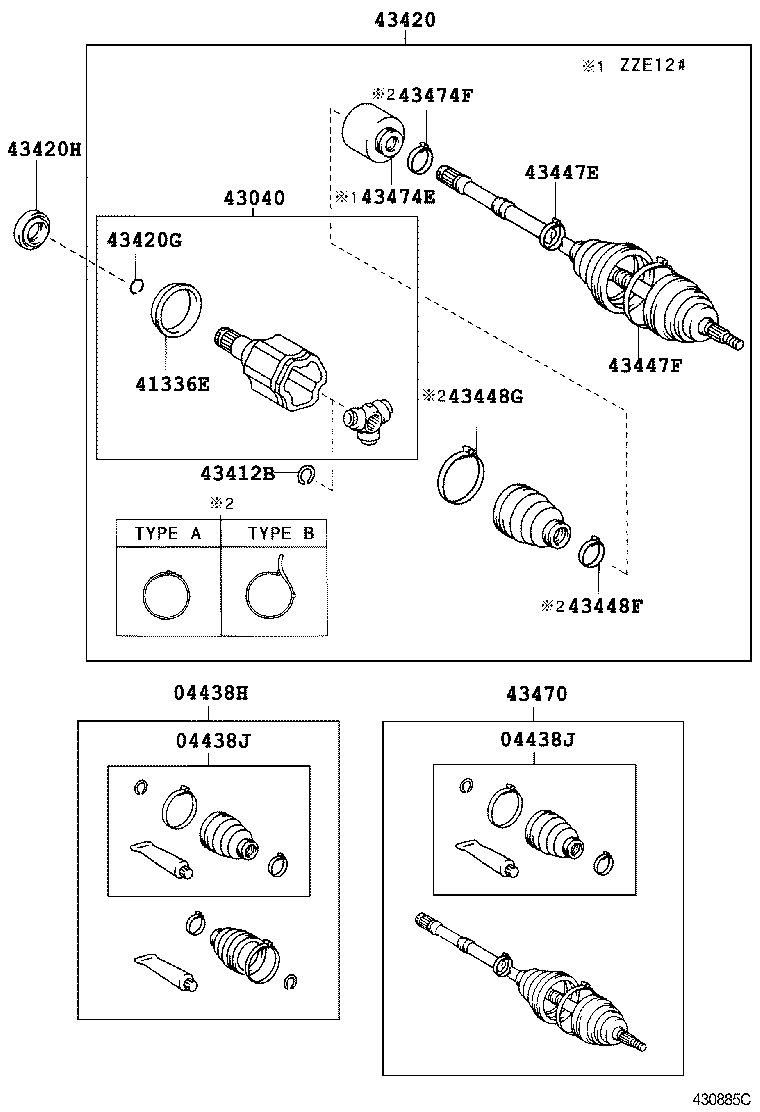

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-12640	ZZE122	09/2001 - 01/2004	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12470	ZZE122	09/2001 - 01/2004	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-12470	ZZE122	09/2001 - 01/2004	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060	ZZE122	09/2001 - 01/2004	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-32040	ZZE122	09/2001 - 10/2001	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005	ZZE12#	09/2001 - 01/2004	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-13060	ZZE122	09/2001 - 01/2004	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005	ZZE122	09/2001 - 01/2004	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35046	ZZE122..ATM	09/2001 - 01/2004	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12150	ZZE12# ID=29.6	09/2001 - 01/2004	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12140	ZZE12# ID=92.0	09/2001 - 01/2004	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078	ZZE12# TYPE B:REFER TO ILLUSTRATION	09/2001 - 01/2004	1
42345-16140	ZZE12# TYPE A:REFER TO ILLUSTRATION	09/2001 - 01/2004	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160	ZZE12# TYPE A:REFER TO ILLUSTRATION	02/2002 - 04/2002	1
42345-12160	CDE120,ZZE12# TYPE A:REFER TO ILLUSTRATION	04/2002 - 01/2004	1
90949-01076	ZZE12# TYPE B:REFER TO ILLUSTRATION,ORANGE MARK	10/2001 - 01/2004	1
90949-01946	ZZE12# TYPE B:REFER TO ILLUSTRATION,NO MARK	10/2001 - 01/2004	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80015	ZZE122	09/2001 - 01/2004	1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-13020	ZZE12#	09/2001 - 01/2004	1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
90949-01947	ZZE12# TYPE B:REFER TO ILLUSTRATION	09/2001 - 01/2004	1
42345-14010	ZZE12# TYPE A:REFER TO ILLUSTRATION	09/2001 - 01/2004	1
