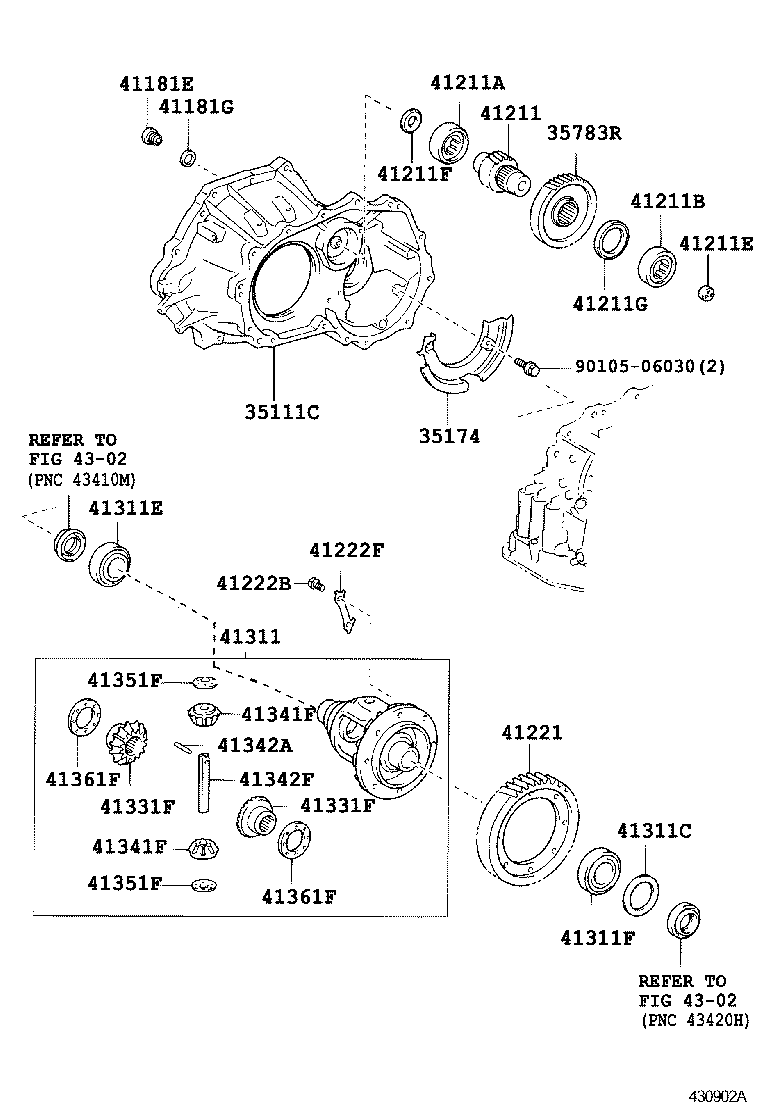

Toyota Corolla verso ZZE122 FRONT AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
35111C - HOUSING, TRANSAXLE
35105-20160	ZZE122..ATM	09/2001 - 01/2004	1
35174 - SEPARATOR, TRANSAXLE HOUSING OIL
35174-20010	ZZE122..ATM	09/2001 - 01/2004	1
35783R - GEAR, COUNTER DRIVEN
35783-52020	ZZE122..ATM	09/2001 - 01/2004	1
41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN)
90341-18021	ZZE122..ATM	09/2001 - 01/2004	1
41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
90430-18008	ZZE122..ATM	09/2001 - 01/2004	1
41211 - PINION, DIFFERENTIAL DRIVE
41211-52040	ZZE122..ATM	09/2001 - 01/2004	1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90365-35004	ZZE122..ATM	09/2001 - 01/2004	1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90365-35003	ZZE122..ATM	09/2001 - 01/2004	1
41211E - PLUG(FOR DIFFERENTIAL DRIVE PINION)
90331-17017	ZZE122..ATM	09/2001 - 01/2004	1
41211F - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH
90374-18005	ZZE122..ATM	09/2001 - 01/2004	1
41211G - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH
90374-45001	ZZE122..ATM	09/2001 - 01/2004	1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-52090	ZZE122..ATM	09/2001 - 01/2004	1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003	ZZE122..ATM	09/2001 - 01/2004	8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010	ZZE122..ATM	09/2001 - 01/2004	4
41311 - CASE, FRONT DIFFERENTIAL
41301-12210	ZZE122..ATM	01/2003 - 01/2004	1
41301-32071	ZZE122..ATM	09/2001 - 01/2003	1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-49002	ZZE122..ATM T=1.95,MARK 02	09/2001 - 01/2004	1
90564-49001	ZZE122..ATM T=1.90,MARK 01	09/2001 - 01/2004	1
90564-49005	ZZE122..ATM T=2.10,MARK 05	09/2001 - 01/2004	1
90564-49004	ZZE122..ATM T=2.05,MARK 04	09/2001 - 01/2004	1
90564-49017	ZZE122..ATM T=2.70,MARK 17	09/2001 - 01/2004	1
90564-49007	ZZE122..ATM T=2.20,MARK 07	09/2001 - 01/2004	1
90564-49006	ZZE122..ATM T=2.15,MARK 06	09/2001 - 01/2004	1
90564-49012	ZZE122..ATM T=2.45,MARK 12	09/2001 - 01/2004	1
90564-49010	ZZE122..ATM T=2.35,MARK 10	09/2001 - 01/2004	1
90564-49019	ZZE122..ATM T=2.80,MARK 19	09/2001 - 01/2004	1
90564-49009	ZZE122..ATM T=2.30,MARK 09	09/2001 - 01/2004	1
90564-49011	ZZE122..ATM T=2.40,MARK 11	09/2001 - 01/2004	1
90564-49016	ZZE122..ATM T=2.65,MARK 16	09/2001 - 01/2004	1
90564-49015	ZZE122..ATM T=2.60,MARK 15	09/2001 - 01/2004	1
90564-49014	ZZE122..ATM T=2.55,MARK 14	09/2001 - 01/2004	1
90564-49018	ZZE122..ATM T=2.75,MARK 18	09/2001 - 01/2004	1
90564-49008	ZZE122..ATM T=2.25,MARK 08	09/2001 - 01/2004	1
90564-49003	ZZE122..ATM T=2.00,MARK 03	09/2001 - 01/2004	1
90564-49013	ZZE122..ATM T=2.50,MARK 13	09/2001 - 01/2004	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016	ZZE122..ATM	09/2001 - 01/2004	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-44001	ZZE122..ATM	09/2001 - 01/2004	1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010	ZZE122	09/2001 - 01/2004	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010	ZZE122	09/2001 - 01/2004	2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011	ZZE122	09/2001 - 01/2004	2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011	ZZE122	09/2001 - 01/2004	2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058	CDE120,ZZE12#	09/2001 - 01/2004	1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020	ZZE122	09/2001 - 01/2004	1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010	ZZE122	09/2001 - 01/2004	2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010	ZZE122	09/2001 - 01/2004	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17040	ZZE122..ATM T=1.10	09/2001 - 01/2004	2
41361-17030	ZZE122..ATM T=1.05	09/2001 - 01/2004	2
41361-17010	ZZE122..ATM T=0.95	09/2001 - 01/2004	2
41361-17050	ZZE122..ATM T=1.15	09/2001 - 01/2004	2
41361-17060	ZZE122..ATM T=1.20	09/2001 - 01/2004	2
41361-17020	ZZE122..ATM T=1.00	09/2001 - 01/2004	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17040	ZZE122..ATM T=1.10	09/2001 - 01/2004	2
41361-17030	ZZE122..ATM T=1.05	09/2001 - 01/2004	2
41361-17010	ZZE122..ATM T=0.95	09/2001 - 01/2004	2
41361-17050	ZZE122..ATM T=1.15	09/2001 - 01/2004	2
41361-17060	ZZE122..ATM T=1.20	09/2001 - 01/2004	2
41361-17020	ZZE122..ATM T=1.00	09/2001 - 01/2004	2
Common parts
90105-06030
Linked diagrams
4302

ZZE122L-FWPDKW (2001)

(0109- )ATM
