ZZE122L-FWPDKW (2001)
Toyota Corolla Verso
Production
Oct 2001
-
Jan 2004
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0109-0312)ATM

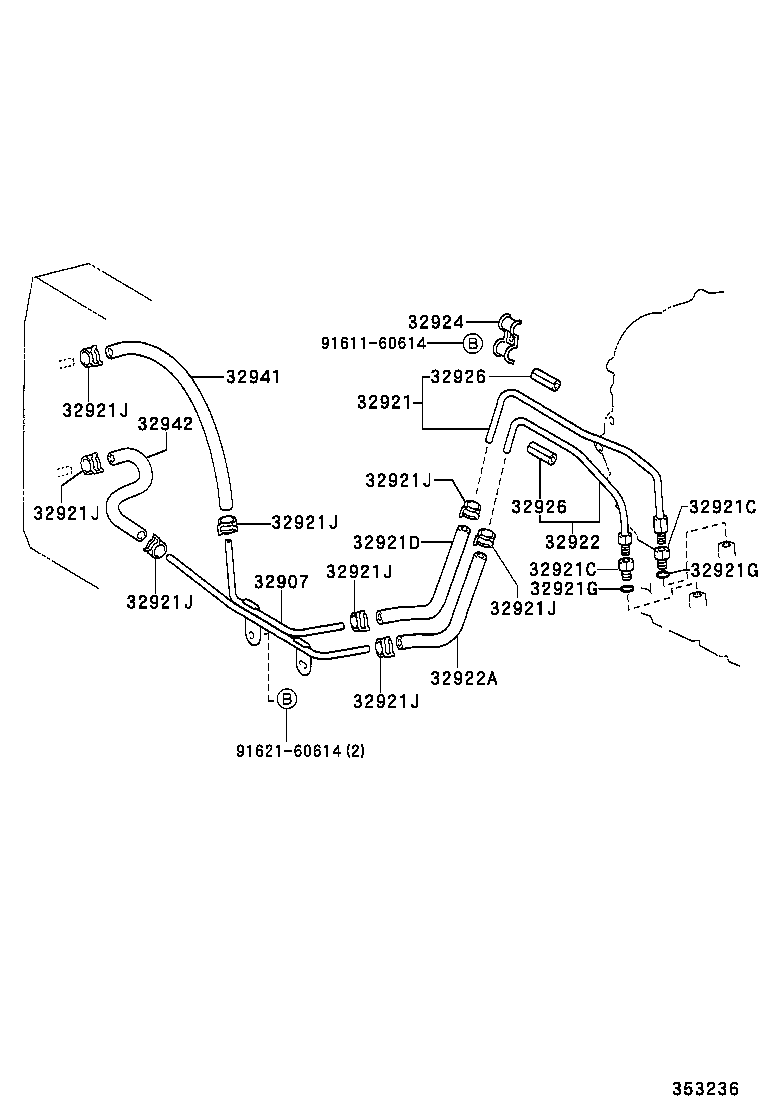

Click highlighted areas on diagram
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-13010 |
ZZE122..ATM |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-13030 |
ZZE122..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
ZZE122..ATM INLET |
1 | ||
| 90404-14007 |
ZZE122..ATM OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
ZZE122..ATM INLET |
1 | ||
| 90404-14007 |
ZZE122..ATM OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15042 |
ZZE122..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZZE122..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZZE122..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
ZZE122..ATM |
8 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-13040 |
ZZE122..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15042 |
ZZE122..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10127 |
ZZE122..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
ZZE122..ATM L=30,ID=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
ZZE122..ATM L=30,ID=8 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 90445-15058 |
ZZE122..ATM |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 90445-15050 |
ZZE122..ATM |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 91621-60614 | ||||
