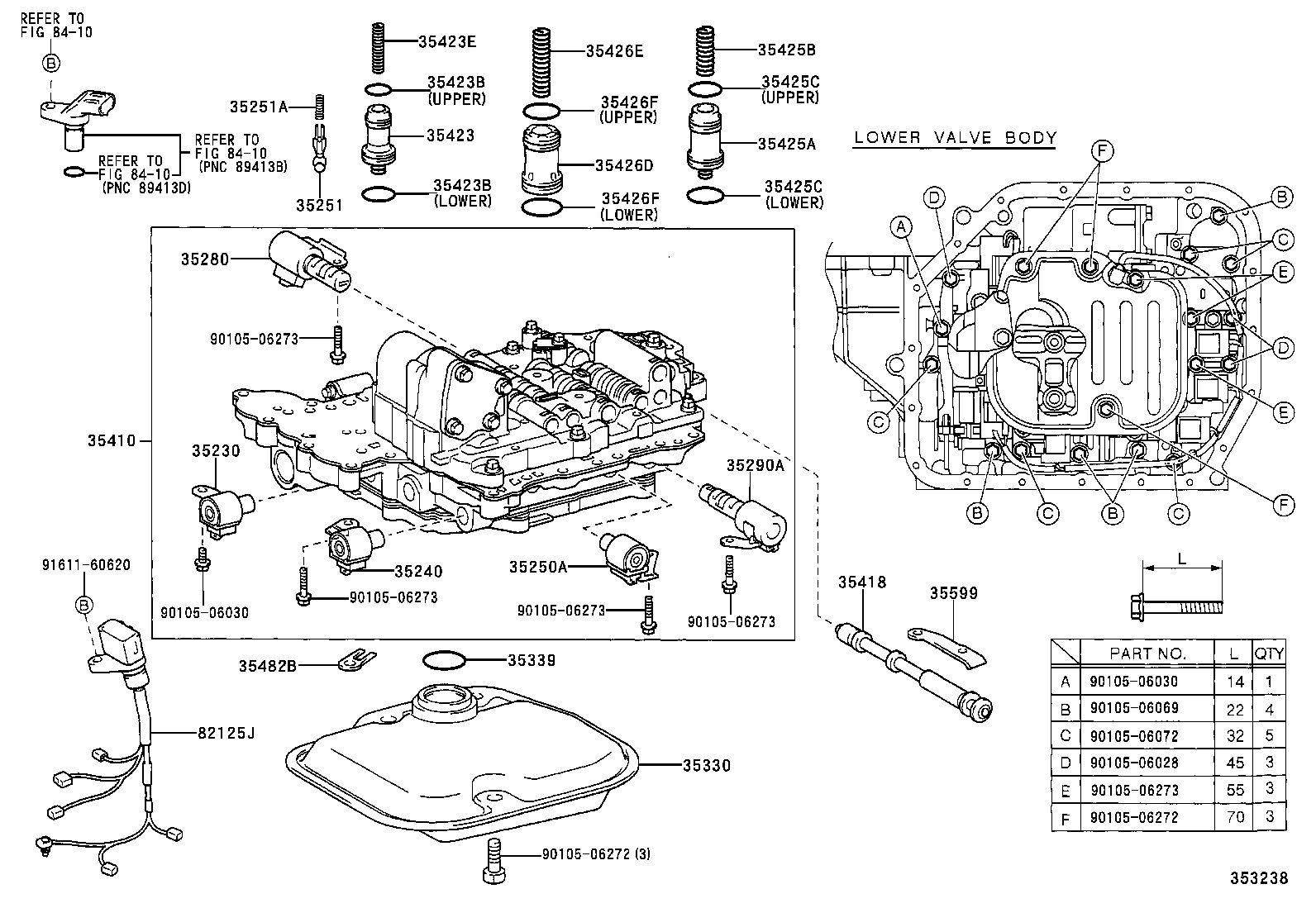

Toyota Corolla verso ZZE122 VALVE BODY & OIL STRAINER (ATM)

Part #	Description	Period	Qty
35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230-52011	ZZE122..ATM	09/2001 - 01/2004	1
35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-52011	ZZE122..ATM	09/2001 - 01/2004	1
35250A - SOLENOID ASSY, TRANSMISSION, NO.3
35250-52010	ZZE122..ATM	09/2001 - 01/2004	1
35251 - BODY, CHECK BALL
35251-30020	ZZE122..ATM	09/2001 - 01/2004	1
35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005	ZZE122..ATM	09/2001 - 01/2004	1
35280 - SOLENOID ASSY, LOCK UP CONTROL
35270-52011	ZZE122..ATM	09/2001 - 01/2004	1
35290A - SOLENOID ASSY, LINE PRESSURE CONTROL
35290-52020	ZZE122..ATM	09/2001 - 01/2004	1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-0W020	ZZE122..ATM	09/2001 - 01/2004	1
35339 - GASKET, OIL STRAINER
90301-32010	ZZE122..ATM	09/2001 - 01/2004	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-52041	ZZE122..ATM	11/2002 - 03/2003	1
35410-52042	ZZE122..ATM	03/2003 - 01/2004	1
35410-52040	ZZE122..ATM	09/2001 - 11/2002	1
35418 - VALVE, MANUAL
35418-52020	ZZE122..ATM	09/2001 - 01/2004	1
35423 - PISTON, B-2 ACCUMULATOR
35403-52010	ZZE122..ATM MARK=52OB2	09/2001 - 09/2002	1
35403-52020	ZZE122..ATM	09/2002 - 01/2004	1
35403-52020	ZZE122..ATM MARK=52AB2	09/2001 - 09/2002	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-29011	ZZE122..ATM LOWER	09/2001 - 01/2004	1
90301-20010	ZZE122..ATM UPPER	09/2001 - 01/2004	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-29011	ZZE122..ATM LOWER	09/2001 - 01/2004	1
90301-20010	ZZE122..ATM UPPER	09/2001 - 01/2004	1
35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
90501-18119	ZZE122..ATM	09/2001 - 01/2004	1
35425A - PISTON, C-2 ACCUMULATOR
35405-52010	ZZE122..ATM MARK=52OC2	09/2001 - 05/2002	1
35405-52020	ZZE122..ATM MARK=52AC2	09/2001 - 05/2002	1
35405-52020	ZZE122..ATM	05/2002 - 01/2004	1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-24036	ZZE122..ATM	09/2001 - 01/2004	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-35004	ZZE122..ATM UPPER	09/2001 - 01/2004	1
90301-22010	ZZE122..ATM LOWER	09/2001 - 01/2004	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-35004	ZZE122..ATM UPPER	09/2001 - 01/2004	1
90301-22010	ZZE122..ATM LOWER	09/2001 - 01/2004	1
35426D - PISTON, C-3 ACCUMULATOR
35426-52020	ZZE122..ATM	09/2001 - 01/2004	1
35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
90501-23149	ZZE122..ATM	09/2001 - 01/2004	1
35426F - RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-29011	ZZE122..ATM UPPER	09/2001 - 01/2004	1
90301-24016	ZZE122..ATM LOWER	09/2001 - 01/2004	1
35426F - RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-29011	ZZE122..ATM UPPER	09/2001 - 01/2004	1
90301-24016	ZZE122..ATM LOWER	09/2001 - 01/2004	1
35482B - CLAMP, TEMPERATURE SENSOR
35482-52020	ZZE122..ATM	09/2001 - 01/2004	1
35599 - COVER, MANUAL DETENT SPRING
35599-52010	ZZE122..ATM	09/2001 - 01/2004	1
82125J - WIRE, TRANSMISSION
82125-20270	ZZE122..ATM	09/2001 - 01/2004	1
Common parts
90105-06028
90105-06030
90105-06069
90105-06072
90105-06272
90105-06273
91611-60620
Linked diagrams
8410

ZZE122L-FWPDKW (2001)

(0109- )ATM
