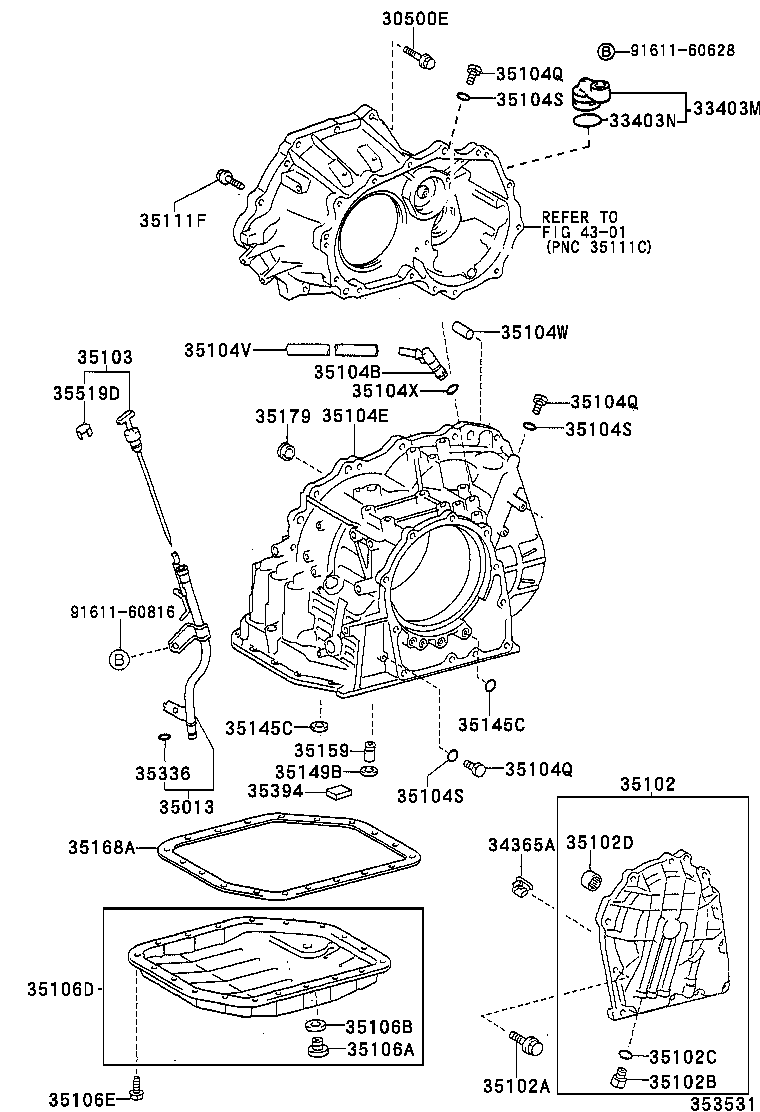

Toyota Corolla verso ZZE122 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91642-81055	ZZE122..ATM *10-1.25PX55-30	09/2001 - 01/2004	2
91619-61255	ZZE122..ATM *12-1.25PX55-30	09/2001 - 01/2004	2
33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403-20230	ZZE122..ATM	09/2001 - 01/2004	1
33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
96711-24018	ZZE122..ATM	09/2001 - 01/2004	1
34365A - RETAINER, OUTER RACE
34365-52012	ZZE122..ATM	09/2001 - 01/2004	1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-13030	ZZE122..ATM	09/2001 - 01/2004	1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-52020	ZZE122..ATM	09/2001 - 01/2004	1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08365	ZZE122..ATM *8-1.25PX28-20	09/2001 - 01/2004	11
35102B - PLUG(FOR TRANSAXLE REAR COVER)
90341-08001	ZZE122..ATM	09/2001 - 01/2004	4
35102C - RING, O(FOR TRANSAXLE REAR COVER PULG)
90301-06196	ZZE122..ATM	09/2001 - 01/2004	4
35102D - BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
90364-14007	ZZE122..ATM	09/2001 - 01/2004	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-32190	ZZE122..ATM	09/2001 - 01/2004	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03166	ZZE122..ATM	09/2001 - 01/2004	1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-20130	ZZE122..ATM	09/2001 - 01/2004	1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE122..ATM	09/2001 - 01/2004	5
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE122..ATM	09/2001 - 01/2004	5
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE122..ATM	09/2001 - 01/2004	5
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE122..ATM	09/2001 - 01/2004	5
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE122..ATM	09/2001 - 01/2004	5
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE122..ATM	09/2001 - 01/2004	5
35104V - HOSE (FOR BREATHER PLUG)
35121-32020	ZZE122..ATM	09/2001 - 01/2004	1
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10017	ZZE122..ATM	09/2001 - 01/2004	2
35104X - RING, O (FOR BREATHER PLUG)
90301-06005	ZZE122..ATM	09/2001 - 01/2004	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016	ZZE122..ATM	09/2001 - 01/2004	1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008	ZZE122..ATM	09/2001 - 01/2004	1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-52020	ZZE122..ATM	09/2001 - 01/2004	1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173	ZZE122..ATM	09/2001 - 01/2004	19
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08071	ZZE122..ATM *8-1.25PX30-25	09/2001 - 01/2004	14
35145C - GASKET, TRANSAXLE CASE
35145-21010	ZZE122..ATM	09/2001 - 01/2004	5
35145C - GASKET, TRANSAXLE CASE
35145-21010	ZZE122..ATM	09/2001 - 01/2004	5
35149B - GASKET, TRANSAXLE CASE 2ND BRAKE
35149-21010	ZZE122..ATM	09/2001 - 01/2004	1
35159 - GASKET, BRAKE DRUM
35159-21010	ZZE122..ATM	09/2001 - 01/2004	1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-52020	ZZE122..ATM	09/2001 - 01/2004	1
35179 - GASKET, OVERDRIVE BRAKE
35179-32010	ZZE122..ATM	09/2001 - 01/2004	2
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	ZZE122..ATM	09/2001 - 01/2004	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	ZZE122..ATM	09/2001 - 01/2004	2
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030	ZZE122..ATM	09/2001 - 01/2004	1
Common parts
91611-60628
91611-60816
Linked diagrams
4301

ZZE122L-FWPDKW (2001)

(0109-0312)ATM
