ZZE122L-FWPDKW (2001)
Toyota Corolla Verso
Production
Oct 2001
-
Jan 2004
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

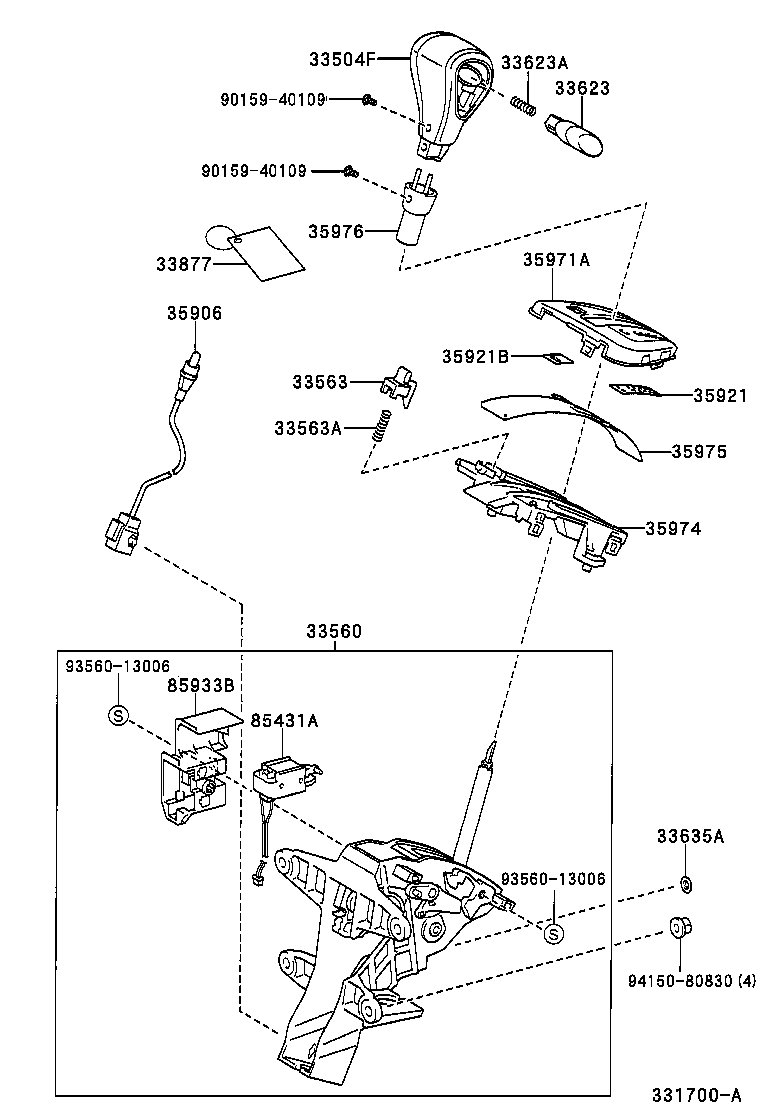

ILLUST NO. 1 OF 2(0109- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-13070B0 |
ZZE122..LHD..ATM..TERRA DK.GRAY,TRIM1# |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-13020 |
ZZE122..LHD..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-13010 |
ZZE122..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06118 |
ZZE122..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-13030 |
ZZE122..LHD..ATM |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-05063 |
ZZE122..ATM |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-13010 |
ZZE122..ATM |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
ZZE122..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-13030 |
ZZE122..LHD..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-13020 |
ZZE122..LHD..ATM |
1 | ||
| 35921B - PLATE, CONTROL POSITION INDICATOR NO,2 | ||||
| 35921-13030 |
ZZE122..LHD..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-13030 |
ZZE122..LHD..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-13011 |
ZZE122..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-13020 |
ZZE122..LHD..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-13030 |
ZZE122..ATM |
1 | ||
| 85431A - SOLENOID, SHIFT LOCK | ||||
| 85431-13010 |
ZZE122..ATM |
1 | ||
| 85933B - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-13040 |
ZZE122..ATM |
1 | ||
| Common parts | ||||
| 90159-40109 | ||||
| 93560-13006 | ||||
| 94150-80830 | ||||

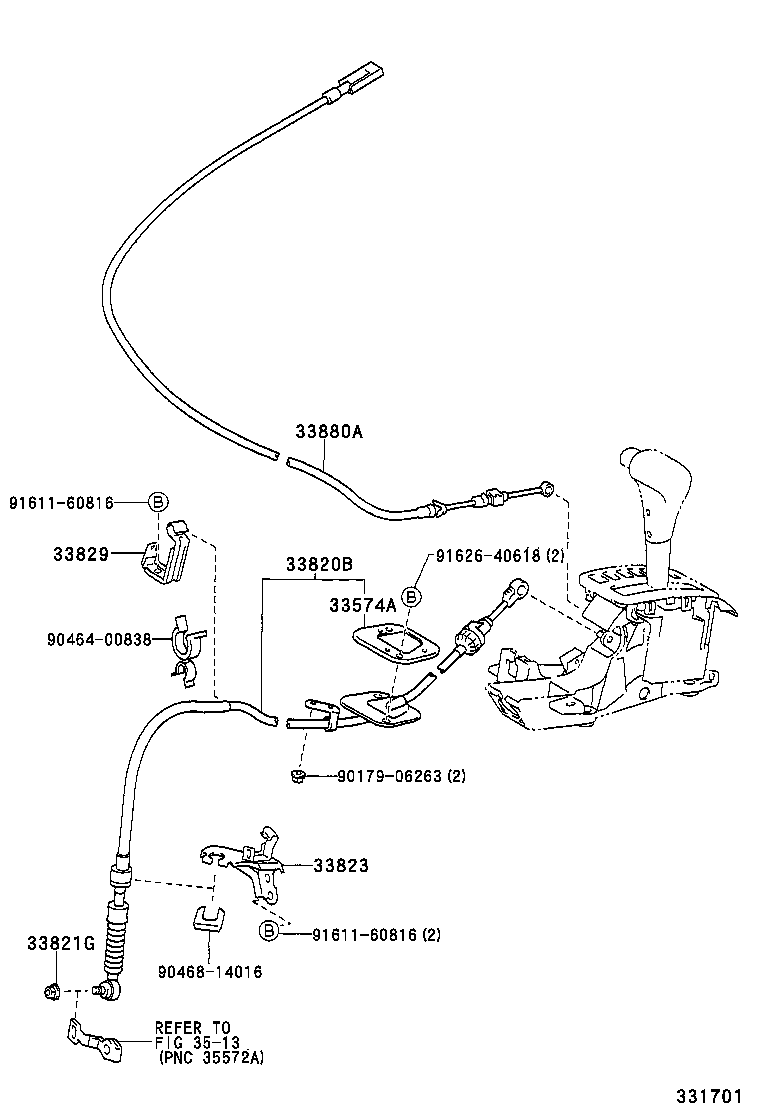

ILLUST NO. 2 OF 2(0109- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12100 |
CDE120,ZZE12# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-13010 |
ZZE122..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
ZZE122..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20230 |
ZZE122..ATM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-12070 |
ZZE122..ATM |
1 | ||
| 33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT) | ||||
| 33880-13020 |
ZZE122..LHD..ATM |
1 | ||
| Common parts | ||||
| 90179-06263 | ||||
| 90464-00838 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 3513 | ||||
