ZZE122L-FWPDKW (2001)
Toyota Corolla Verso
ILLUST NO. 1 OF 2(0109- )1ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-22130 |
1ZZFE..ZZE122 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-7A680 |
1ZZFE..ZZE122 |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-22030 |
1ZZFE..ZZE122 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-22060 |
1ZZFE..ZZE122 (J) |
1 | ||
| 22270-22060 |
1ZZFE..ZZE122 |
1 | ||
| 22270-0D040 |
1ZZFE..ZZE122 (L) |
1 | ||
| 22270-22061 |
1ZZFE..ZZE122 (J) |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-22040 |
1ZZFE..ZZE122 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-22040 |
1ZZFE..ZZE122 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1ZZFE..ZZE122 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-22020 |
1ZZFE..ZZE122 |
4 | ||
| 23291-73010 |
1ZZFE..ZZE122 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-22030 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08055 |
1ZZFE,3ZZFE..ZZE12# |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-22140 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| Common parts | ||||
| 90079-10012 | ||||
| 90079-11057 | ||||
| 90079-30005 | ||||
| 90105-08181 | ||||
| 90119-08B48 | ||||
| 90126-08015 | ||||
| 91511-80614 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 8404 | ||||

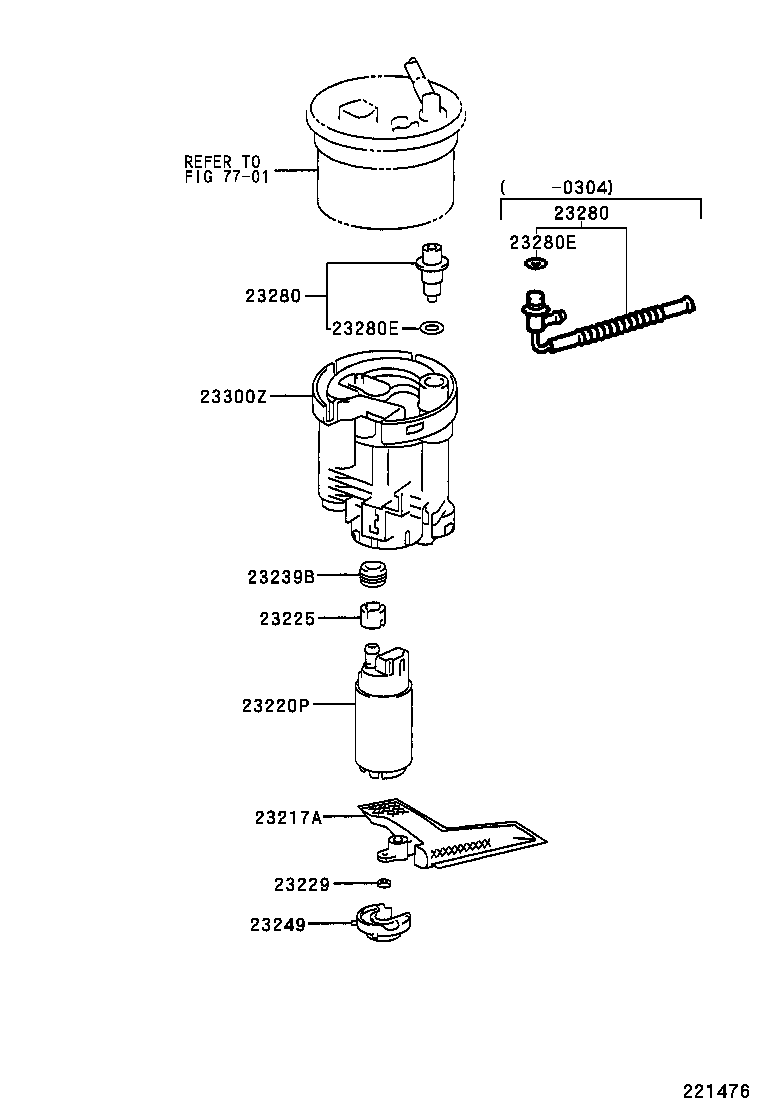

ILLUST NO. 2 OF 2(0109- )1ZZFE,3ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-23010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-28030 |
1ZZFE..ZZE122 |
1 | ||
| 23225 - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23239B - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23020-20010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280-20060 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280-22010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23020-20010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280-20060 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280-22010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-21010 |
1ZZFE,3ZZFE..ZZE12# |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
