ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )1ZZFE,3ZZFE

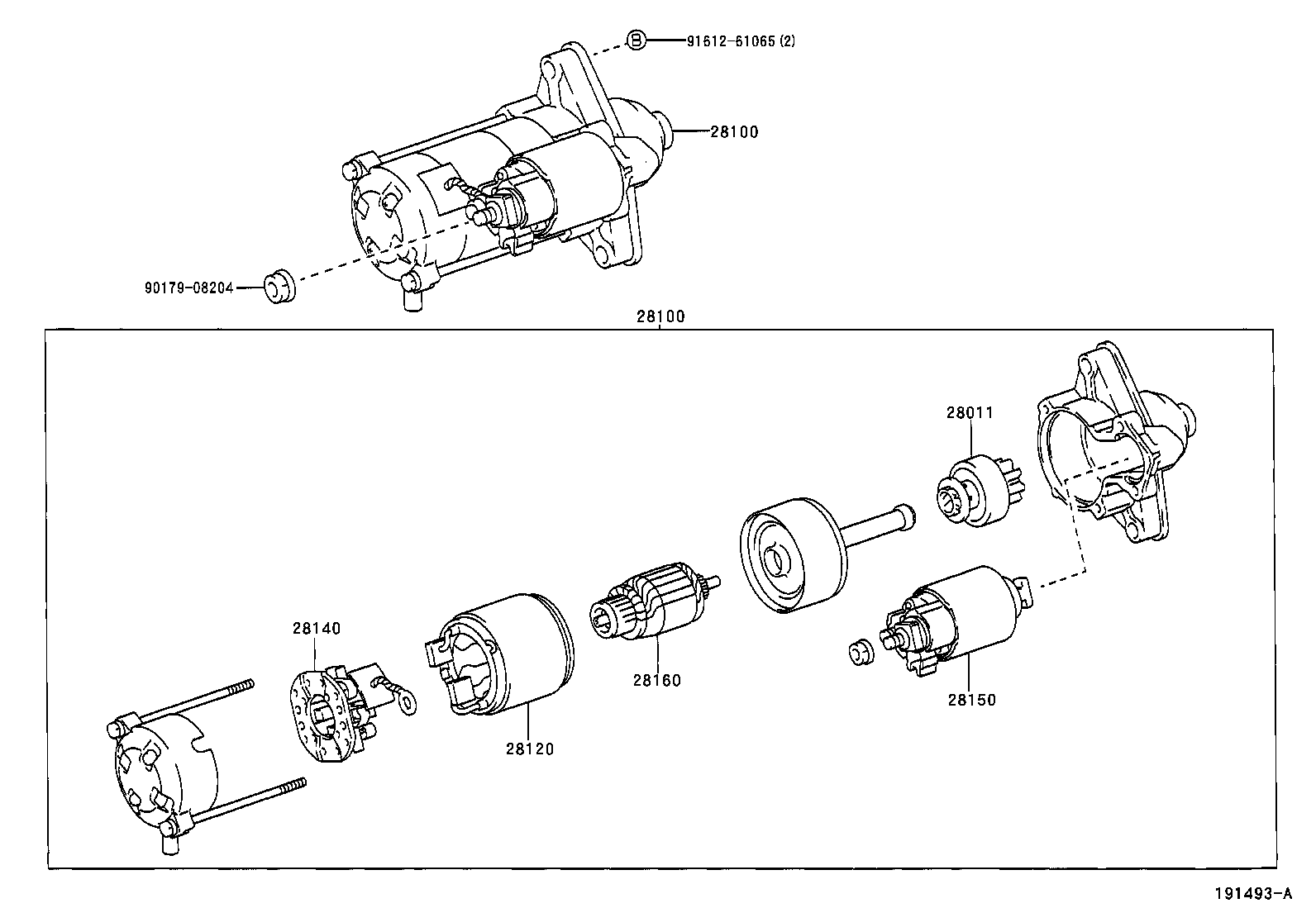

Click highlighted areas on diagram

12V 0.8,1.0KW

diagram 28011 28100 28100 28120 28140 28150 28160 9017908204 9161261065
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1ZZFE,3ZZFE..ZZE12#

 1
28100 - STARTER ASSY
28100-22040

1ZZFE,3ZZFE..ZZE12#

12V 1.0KW

 1
28100-22030

1ZZFE,3ZZFE..ZZE12#

12V 0.8KW

 1
28100 - STARTER ASSY
28100-22040

1ZZFE,3ZZFE..ZZE12#

12V 1.0KW

 1
28100-22030

1ZZFE,3ZZFE..ZZE12#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-70050

1ZZFE,3ZZFE..ZZE12#

12V 1.0KW

 1
28120-70020

1ZZFE,3ZZFE..ZZE12#

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

1ZZFE,3ZZFE..ZZE12#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-70030

1ZZFE,3ZZFE..ZZE12#

 1
28160 - ARMATURE ASSY, STARTER
28160-70050

1ZZFE,3ZZFE..ZZE12#

12V 1.0KW

 1
28160-70021

1ZZFE,3ZZFE..ZZE12#

12V 0.8KW

 1
Common parts
90179-08204
91612-61065
