ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )1ZZFE,3ZZFE

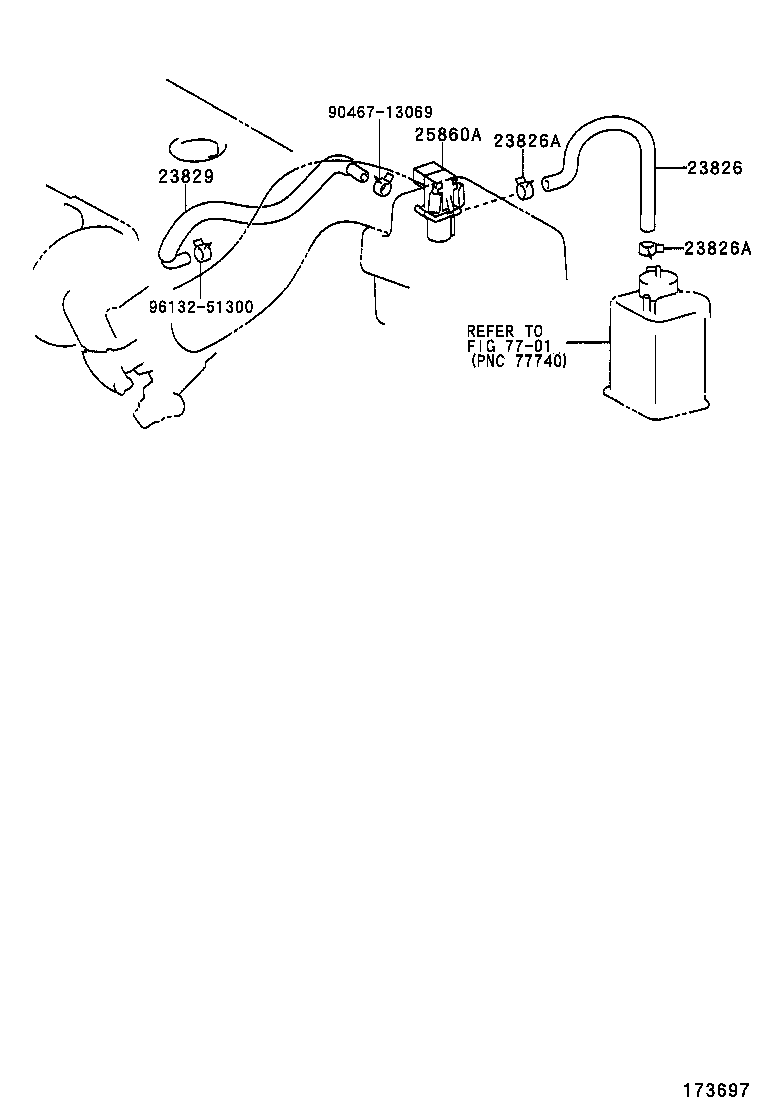

Click highlighted areas on diagram

diagram 23826 23826A 23826A 23829 25860A 7701 9046713069 9613251300
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030

1ZZFE,3ZZFE..ZZE12#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-41100

1ZZFE,3ZZFE..ZZE12#

 2
96132-51100

1ZZFE,3ZZFE..ZZE12#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-41100

1ZZFE,3ZZFE..ZZE12#

 2
96132-51100

1ZZFE,3ZZFE..ZZE12#

 2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-22050

1ZZFE,3ZZFE..ZZE12#

 1
23829-22080

1ZZFE,3ZZFE..ZZE12#

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12257

1ZZFE,3ZZFE..ZZE12#

 1
Common parts
90467-13069
96132-51300
Linked diagrams
7701
