ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )1ZZFE,3ZZFE

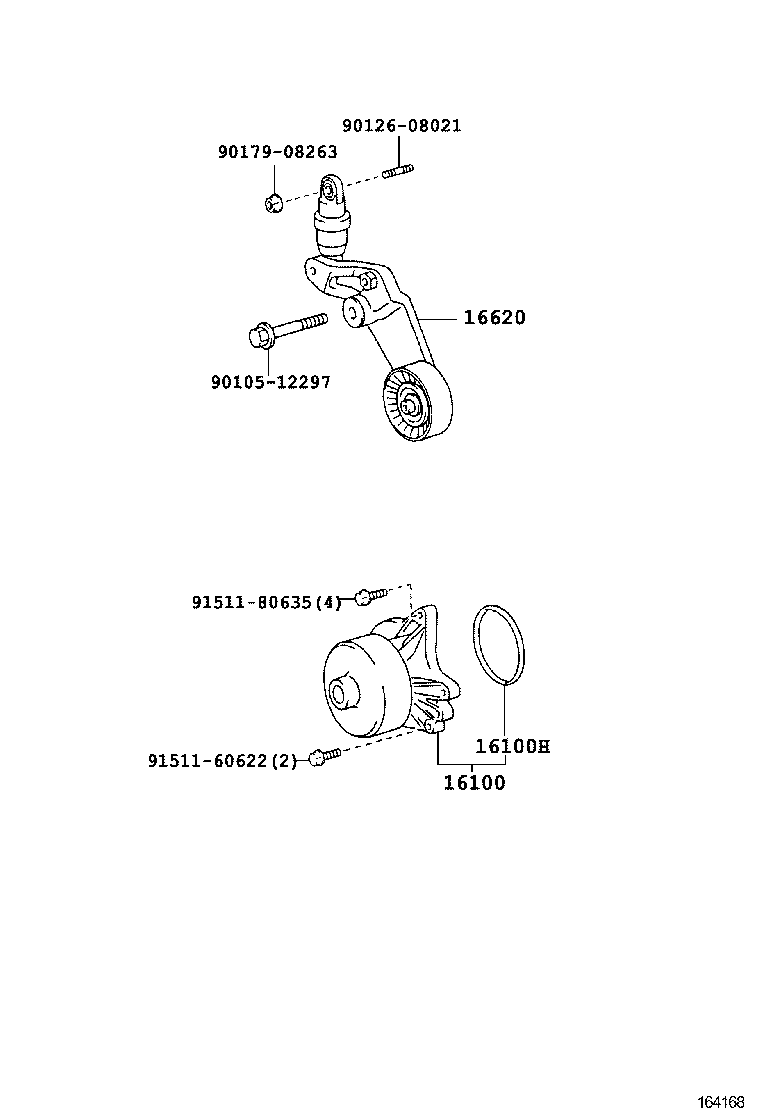

Click highlighted areas on diagram

diagram 16100 16100H 16620 9010512297 9012608021 9017908263 9151160622 9151180635
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29175

1ZZFE,3ZZFE..ZZE12#

 1
16100H - RING, O(FOR WATER PUMP)
90301-69006

1ZZFE,3ZZFE..ZZE12#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-22011

1ZZFE,3ZZFE..ZZE12#

 1
Common parts
90105-12297
90126-08021
90179-08263
91511-60622
91511-80635
