Toyota Corolla verso ZZE122 ENGINE OVERHAUL GASKET KIT - JDM Part Detective

Home Blog About Contact Search

Manufacturers Home
Toyota
EU
COROLLA VERSO
ZZE122L-FWPDKW (2001)
1103 - ENGINE OVERHAUL GASKET KIT

ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

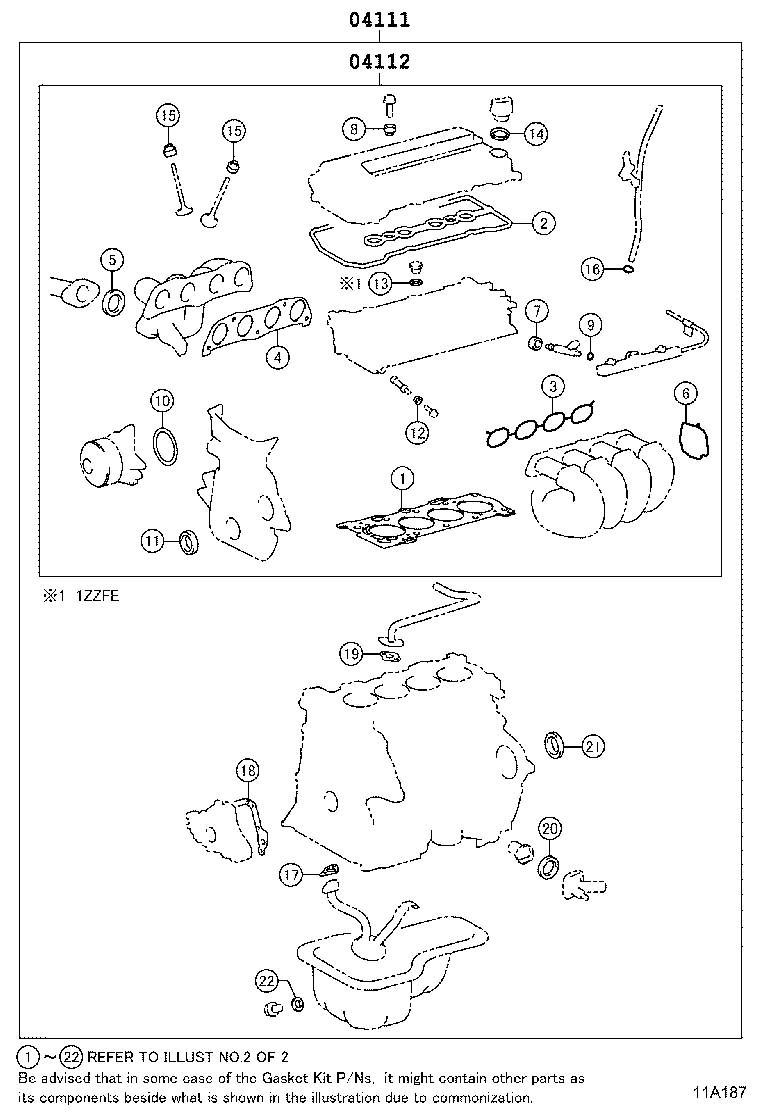

ILLUST NO. 1 OF 2(0109- )1ZZFE,3ZZFE

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-22160	1ZZFE..ZZE122	09/2001 - 05/2002	1
04111-22132	1ZZFE..ZZE122	02/2003 - 01/2004	1
04111-22131	1ZZFE..ZZE122	05/2002 - 02/2003	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-22132	1ZZFE..ZZE122	02/2003 - 01/2004	1
04112-22160	1ZZFE..ZZE122	09/2001 - 05/2002	1
04112-22131	1ZZFE..ZZE122	05/2002 - 02/2003	1

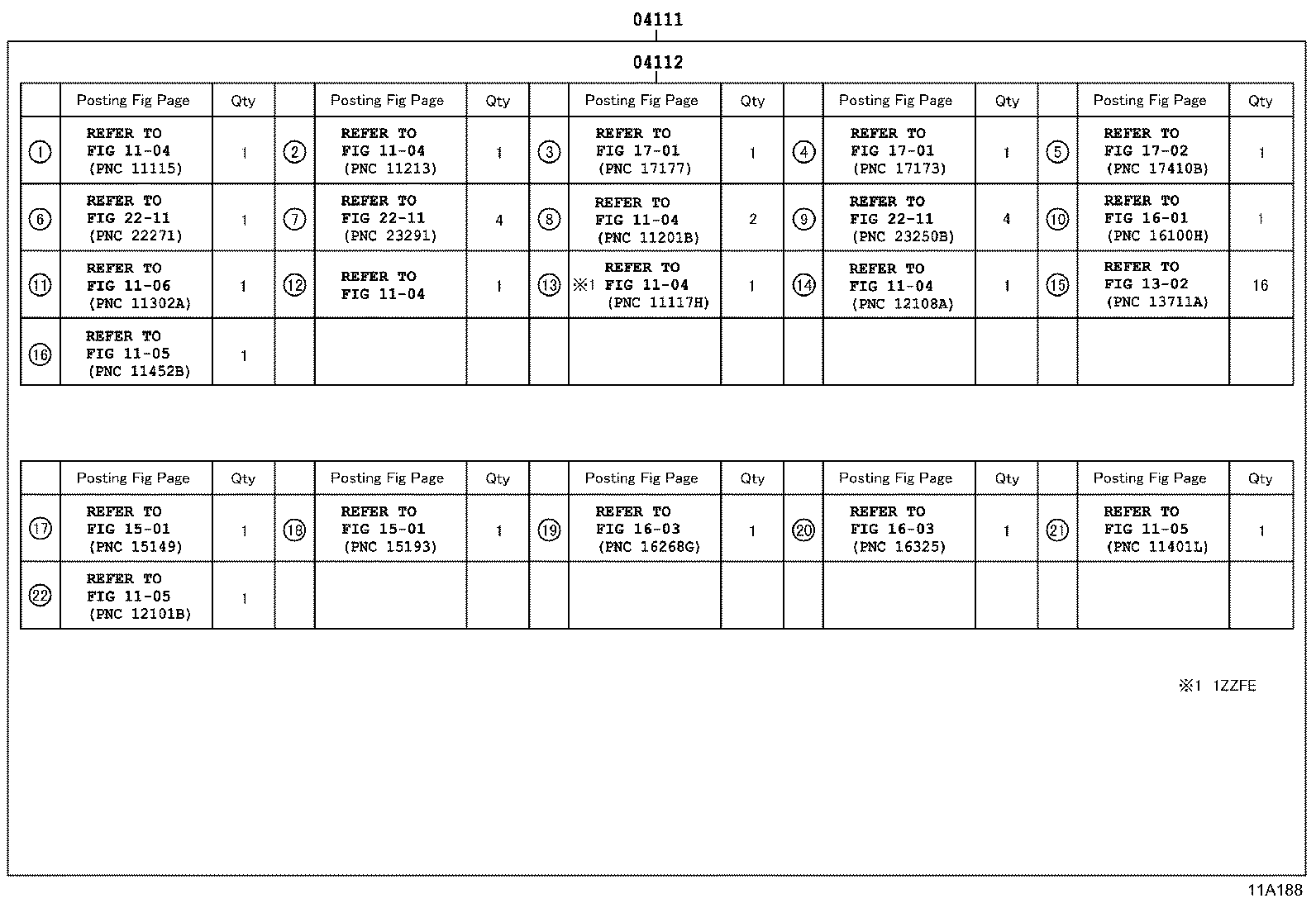

ILLUST NO. 2 OF 2(0109- )1ZZFE,3ZZFE

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-22160	1ZZFE..ZZE122	09/2001 - 05/2002	1
04111-22132	1ZZFE..ZZE122	02/2003 - 01/2004	1
04111-22131	1ZZFE..ZZE122	05/2002 - 02/2003	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-22132	1ZZFE..ZZE122	02/2003 - 01/2004	1
04112-22160	1ZZFE..ZZE122	09/2001 - 05/2002	1
04112-22131	1ZZFE..ZZE122	05/2002 - 02/2003	1
