ZZE122L-FWPDKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

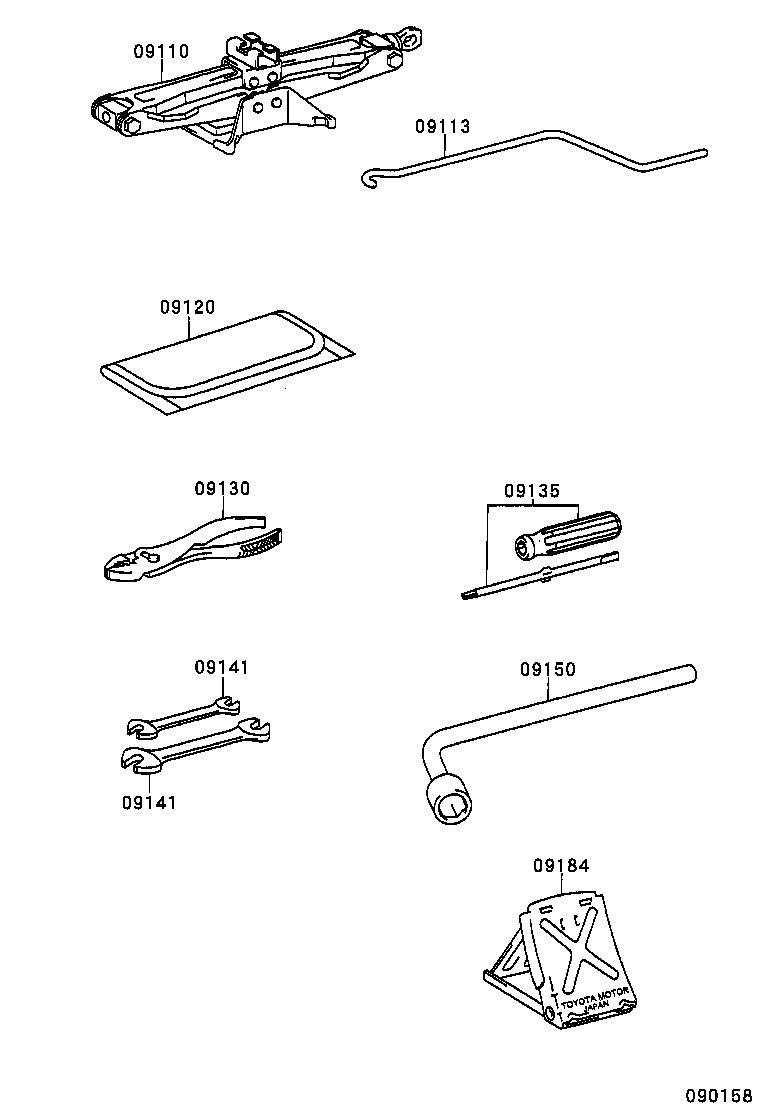

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09150 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-20110

CDE120,ZZE12#

 1
09113 - HANDLE, JACK
09113-12030

CDE120,ZZE12#

 1
09113-52010

CDE120,ZZE12#

 1
09113-20040

CDE120,ZZE12#

 1
09120 - BAG, TOOL
09120-16030

CDE120,ZZE12#

 1
09130 - PLIERS
99913-11500

CDE120,ZZE12#

 1
09135 - DRIVER, SCREW
99915-10700

CDE120,ZZE12#

 1
09141 - SPANNER
99914-11214

CDE120,ZZE12#

12 X 14

 1
99914-10810

CDE120,ZZE12#

8 X 10

 1
09141 - SPANNER
99914-11214

CDE120,ZZE12#

12 X 14

 1
99914-10810

CDE120,ZZE12#

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-35070

CDE120,ZZE12#

 1
09184 - STOPPER, WHEEL
09184-00010

CDE120,ZZE12#

 1
