ZZE121L-FWMNKW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )ZZE121

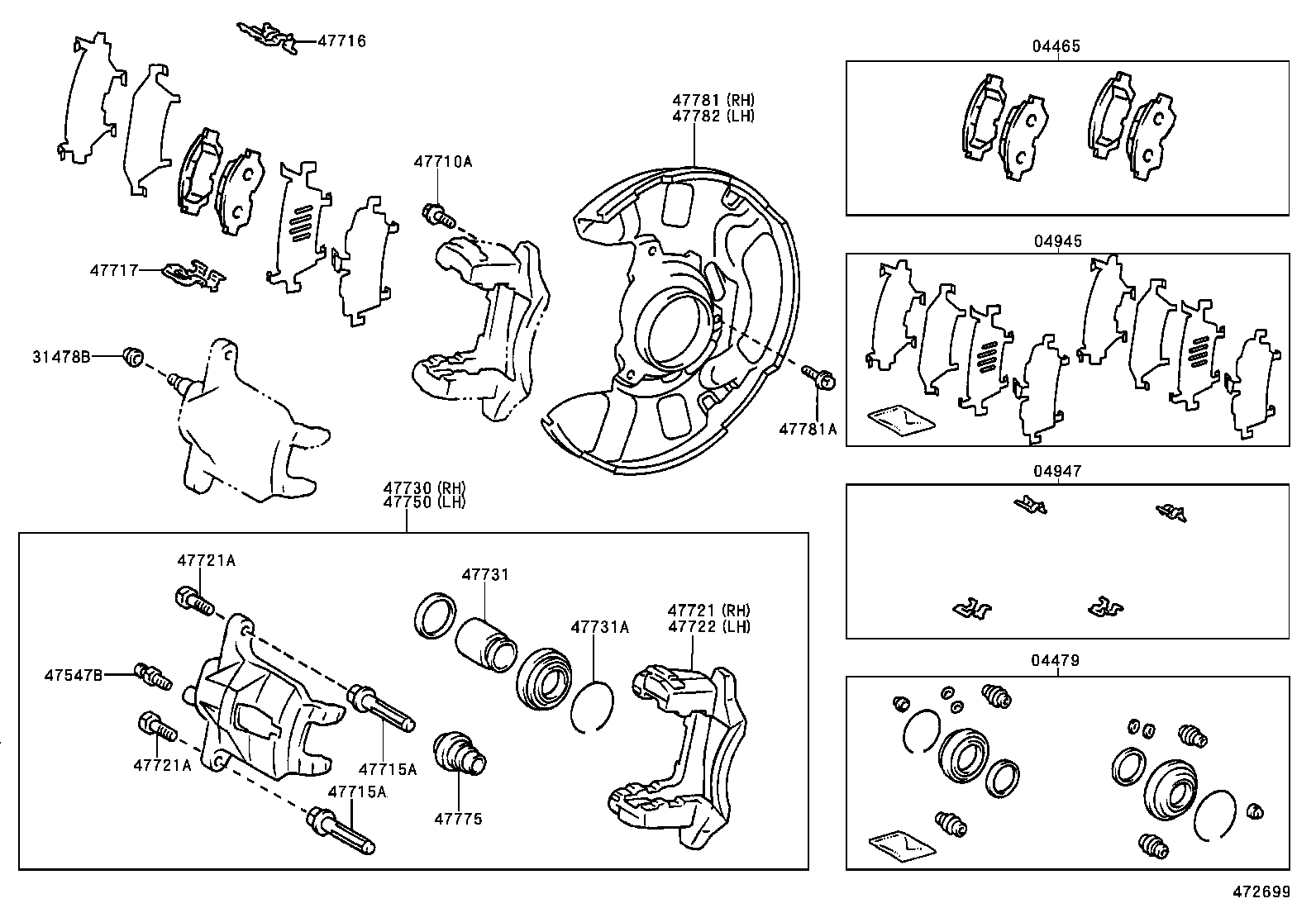

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47716 47717 47721 47721A 47721A 47722 47730 47731 47731A 47750 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-13050

ZZE121

MARK AISIN PC553H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-20320

ZZE121

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-20210

ZZE121

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-20110

ZZE121

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CDE120,ZZE12#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

CDE120,ZZE12#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

CDE120,ZZE12#

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52010

ZZE121

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52010

ZZE121

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-20200

ZZE121

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-20100

ZZE121

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-20440

ZZE121

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

CDE120,ZZE12#

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

CDE120,ZZE12#

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-20130

ZZE121

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-20600

ZZE121

 1
47731 - PISTON, FRONT DISC BRAKE
47731-20260

ZZE121

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-86005

ZZE121

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-20510

ZZE121

 1
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-52010

ZZE121

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-12240

CDE120,ZZE12#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

CDE120,ZZE12#

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-12240

CDE120,ZZE12#

 1
