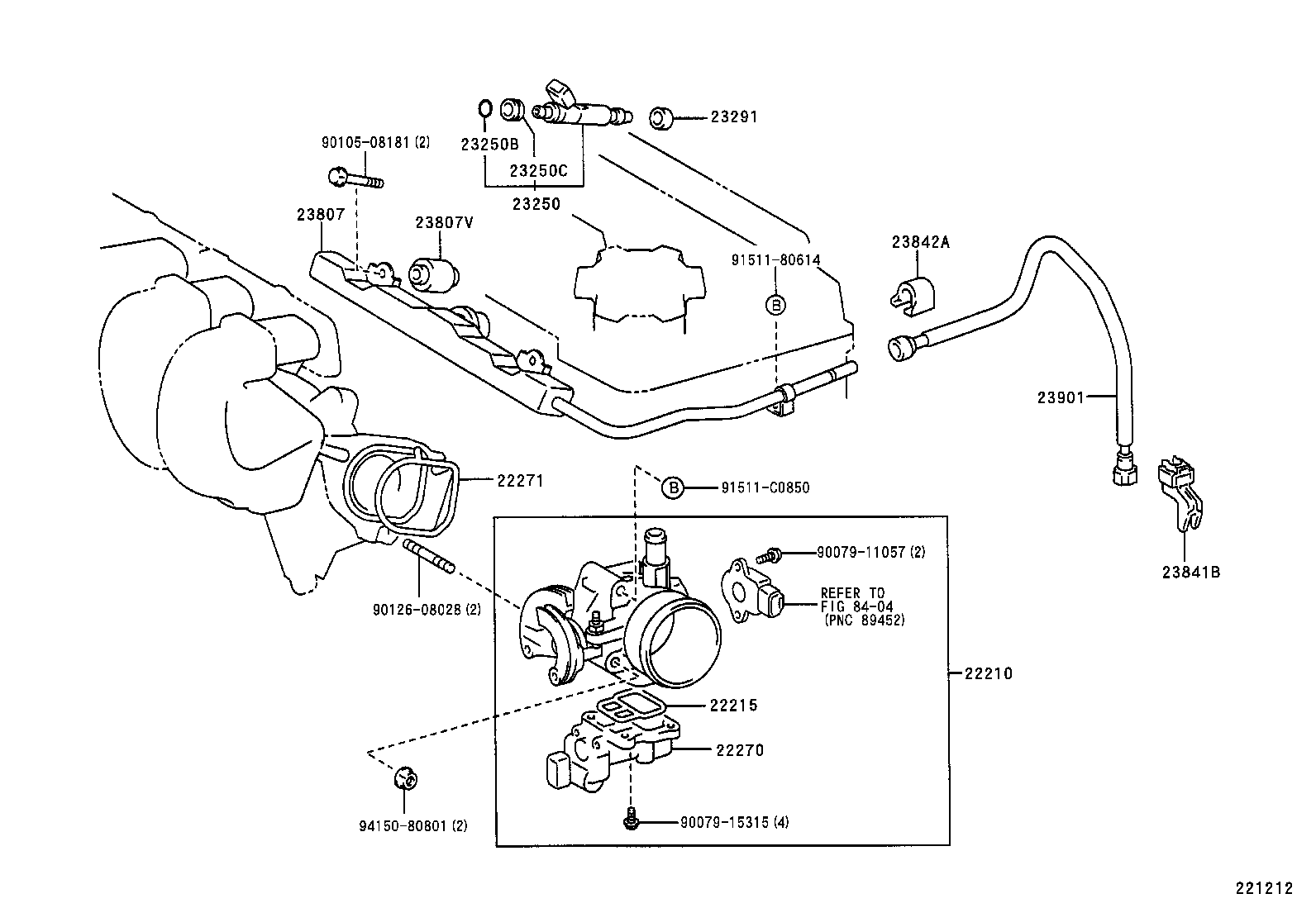

Toyota Corolla verso ZZE121 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-22150	3ZZFE..ZZE121	10/2001 - 01/2004	1
22215 - GASKET, THROTTLE BODY COVER
22215-74400	3ZZFE..ZZE121	10/2001 - 01/2004	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-22050	3ZZFE..ZZE121	10/2001 - 01/2004	1
22271 - GASKET, THROTTLE BODY
22271-22070	3ZZFE..ZZE121	10/2001 - 01/2004	1
23250 - INJECTOR ASSY, FUEL
23209-0D030	3ZZFE..ZZE121 DENSO	10/2001 - 01/2004	4
23209-0D020	3ZZFE..ZZE121 BOSCH	10/2001 - 01/2004	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07030	3ZZFE..ZZE121	10/2001 - 01/2004	4
23250C - GROMMET(FOR FUEL INJECTOR)
90080-48058	3ZZFE..ZZE121	10/2001 - 01/2004	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-22010	3ZZFE..ZZE121	10/2001 - 01/2004	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-22030	1ZZFE,3ZZFE..ZZE12#	09/2001 - 01/2004	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08055	1ZZFE,3ZZFE..ZZE12#	09/2001 - 01/2004	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1ZZFE,3ZZFE..ZZE12#	09/2001 - 01/2004	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020	1ZZFE,3ZZFE..ZZE12#	09/2001 - 01/2004	1
23901 - TUBE SUB-ASSY, FUEL
23901-22140	1ZZFE,3ZZFE..ZZE12#	09/2001 - 01/2004	1
Common parts
90079-11057
90079-15315
90105-08181
90126-08028
91511-80614
91511-C0850
94150-80801
Linked diagrams
8404

ZZE121L-FWMNKW (2001)
