ZNR11R-GRGDKW (2004)
Toyota Corolla Verso
ILLUST NO. 2 OF 2(0402- )TERRA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0F020 |
CUR10,ZNR1# |
1 | ||
| 44050-0F010 |
AUR10,CUR10,ZNR1#..TERRA VSC-W/O |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-05030 |
CUR10,ZNR1# |
1 | ||
| 44590-05020 |
AUR10,CUR10,ZNR1#..TERRA VSC-W/O |
1 | ||
| Common parts | ||||
| 90119-08300 | ||||
| 90179-08189 | ||||

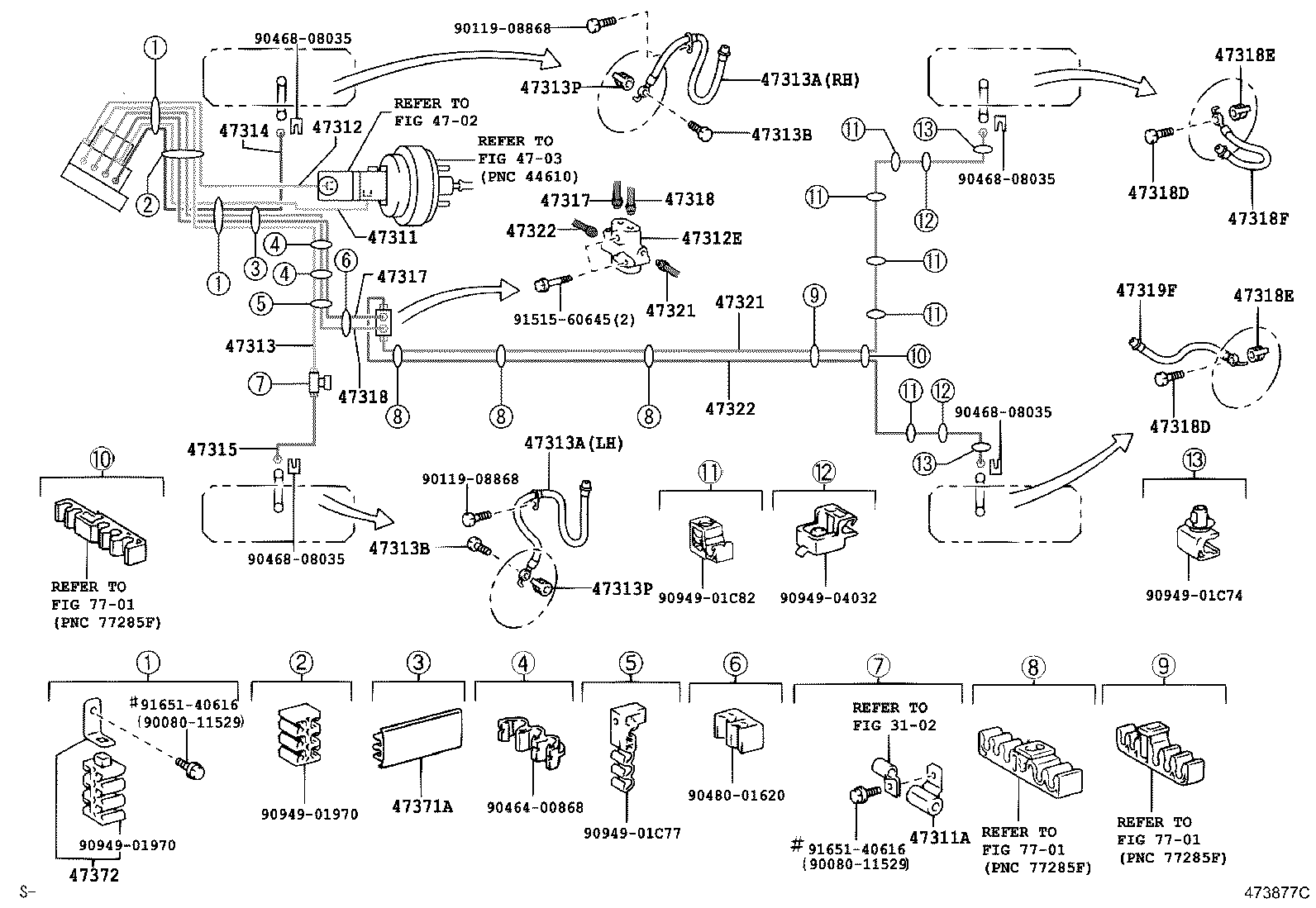

ILLUST NO. 1 OF 2(0402- )RHD..TERRA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47311-0F020 |
ZNR1#..RHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10227 |
AUR10,CUR10,ZNR1#..RHD |
1 | ||
| 90412-10667 |
CUR10,ZNR1#..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0F020 |
ZNR1#..RHD |
1 | ||
| 47312-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
AUR10,ZNR1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0F010 |
AUR10,CUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47313-0F020 |
CUR10,ZNR1#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94199 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC RH |
1 | ||
| 90080-94200 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC LH |
1 | ||
| 90080-94199 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),RH |
1 | ||
| 90947-02D22 |
AUR10,ZNR1# (J),RH |
1 | ||
| 90947-02D23 |
AUR10,ZNR1# (J),LH |
1 | ||
| 90080-94200 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94199 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC RH |
1 | ||
| 90080-94200 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC LH |
1 | ||
| 90080-94199 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),RH |
1 | ||
| 90947-02D22 |
AUR10,ZNR1# (J),RH |
1 | ||
| 90947-02D23 |
AUR10,ZNR1# (J),LH |
1 | ||
| 90080-94200 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47314-0F020 |
ZNR1#..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02160 |
AUR10,CUR10,ZNR1#..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47317-0F020 |
ZNR1#..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47317-0F020 |
ZNR1#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47318-0F020 |
ZNR1#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47318-0F020 |
ZNR1#..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E84 |
AUR10,ZNR1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E84 |
AUR10,ZNR1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12230 |
AUR10,ZNR1# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
2 | ||
| Common parts | ||||
| 90080-11529 | ||||
| 90119-08868 | ||||
| 90464-00868 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90949-01970 | ||||
| 90949-01C74 | ||||
| 90949-01C77 | ||||
| 90949-01C82 | ||||
| 90949-04032 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
| 4703 | ||||
| 7701 | ||||

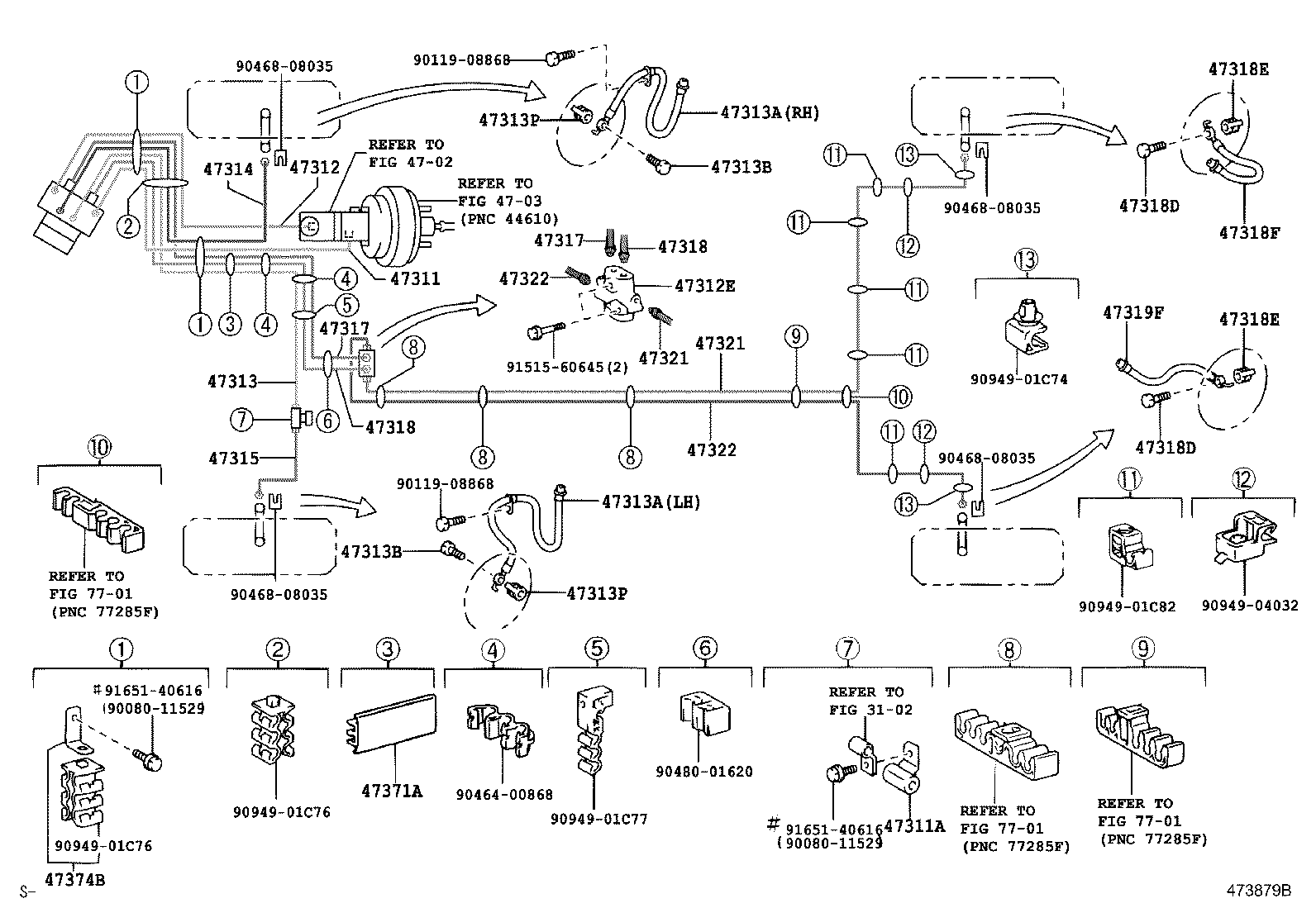

ILLUST NO. 1 OF 2(0402- )CUR10,ZNR1#..RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47311-0F020 |
ZNR1#..RHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10227 |
AUR10,CUR10,ZNR1#..RHD |
1 | ||
| 90412-10667 |
CUR10,ZNR1#..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0F020 |
ZNR1#..RHD |
1 | ||
| 47312-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12082 |
AUR10,ZNR1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0F010 |
AUR10,CUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47313-0F020 |
CUR10,ZNR1#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94199 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC RH |
1 | ||
| 90080-94200 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC LH |
1 | ||
| 90080-94199 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),RH |
1 | ||
| 90947-02D22 |
AUR10,ZNR1# (J),RH |
1 | ||
| 90947-02D23 |
AUR10,ZNR1# (J),LH |
1 | ||
| 90080-94200 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94199 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC RH |
1 | ||
| 90080-94200 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC LH |
1 | ||
| 90080-94199 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),RH |
1 | ||
| 90947-02D22 |
AUR10,ZNR1# (J),RH |
1 | ||
| 90947-02D23 |
AUR10,ZNR1# (J),LH |
1 | ||
| 90080-94200 |
AUR10,ZNR1#..DCR,DCRL,HTWC (L),LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47314-0F020 |
ZNR1#..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02160 |
AUR10,CUR10,ZNR1#..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47317-0F020 |
ZNR1#..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47317-0F020 |
ZNR1#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47318-0F020 |
ZNR1#..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0F010 |
AUR10,ZNR1#..RHD..TERRA VSC-W/O |
1 | ||
| 47318-0F020 |
ZNR1#..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR10,ZNR1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR10,ZNR1# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E84 |
AUR10,ZNR1# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E84 |
AUR10,ZNR1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12230 |
AUR10,ZNR1# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-13020 |
AUR10,ZNR1#..RHD |
2 | ||
| Common parts | ||||
| 90080-11529 | ||||
| 90119-08868 | ||||
| 90464-00868 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90949-01C74 | ||||
| 90949-01C76 | ||||
| 90949-01C77 | ||||
| 90949-01C82 | ||||
| 90949-04032 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
| 4703 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(0402- )CUR10,ZNR1#
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0F020 |
CUR10,ZNR1# |
1 | ||
| 44050-0F010 |
AUR10,CUR10,ZNR1#..TERRA VSC-W/O |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-05030 |
CUR10,ZNR1# |
1 | ||
| 44590-05020 |
AUR10,CUR10,ZNR1#..TERRA VSC-W/O |
1 | ||
| 89637E - SENSOR, OIL PRESSURE | ||||
| 89637-07010 |
CUR10,ZNR1# |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08300 | ||||
| 90179-08189 | ||||
| 90561-06013 | ||||
| Linked diagrams | ||||
| 8414 | ||||
