ZNR11L-GRGEKW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
May 2007
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

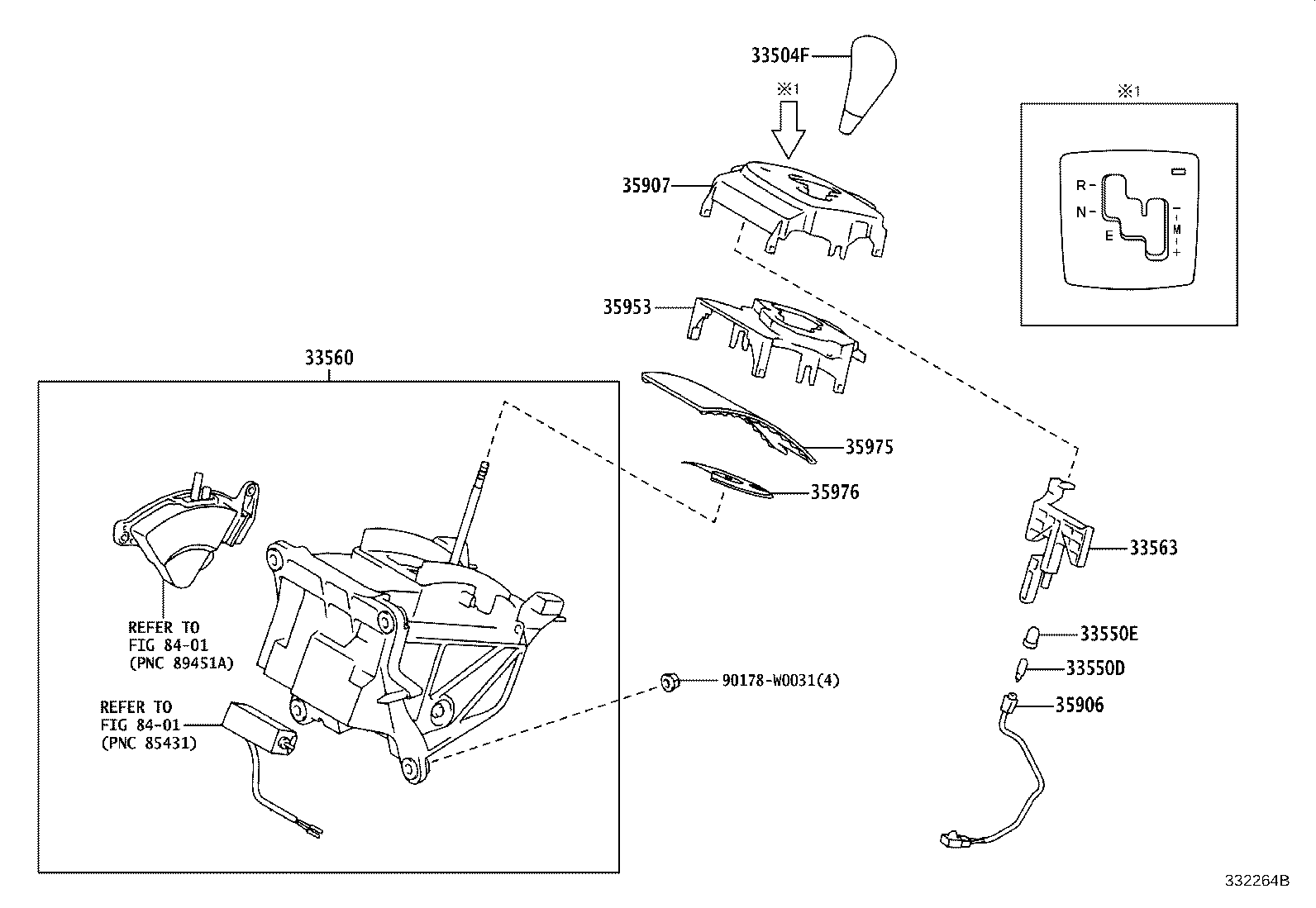

(0402- )5FS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-05030B0 |
ZNR11..5FS..SOL DK.GRAY,TRIM1# |
1 | ||
| 33504-02090B0 |
CUR10,ZNR1#..5F..SOL DK.GRAY,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11040 |
ZNR11..5FS 12V 2W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-64010 |
ZNR11..5FS |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-64010 |
ZNR11..LHD..5FS |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-64010 |
ZNR11..LHD..5FS |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-64010 |
ZNR11..5FS |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-64010 |
ZNR11..LHD..5FS |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-64010 |
ZNR11..LHD..5FS |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-64010 |
ZNR11..LHD..5FS |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35975-64020 |
ZNR11..5FS |
1 | ||
| Common parts | ||||
| 90178-W0031 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0402- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-05030B0 |
ZNR11..5FS..SOL DK.GRAY,TRIM1# |
1 | ||
| 33504-02090B0 |
CUR10,ZNR1#..5F..SOL DK.GRAY,TRIM1# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-20040 |
ZNR1#..5F |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-20040 |
ZNR1#..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
ZNR1#..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0F010 |
AUR10,CUR10,ZNR1#..5F,6F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-20090 |
ZNR1#..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ZNR1#..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ZNR1#..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CUR10,ZNR1#..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
CUR10,ZNR1#..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
CUR10,ZNR1#..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-42010 |
ZNR1#..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0F010 |
ZNR1#..5F |
1 | ||
| 33820-0F011 |
ZNR1#..5F |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-W0035 | ||||
| 90178-W0031 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14029 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91626-40618 | ||||
| 94130-00802 | ||||
| 94130-60800 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 3307 | ||||
