ZNR11L-GRGEKW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
May 2007
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )5FS

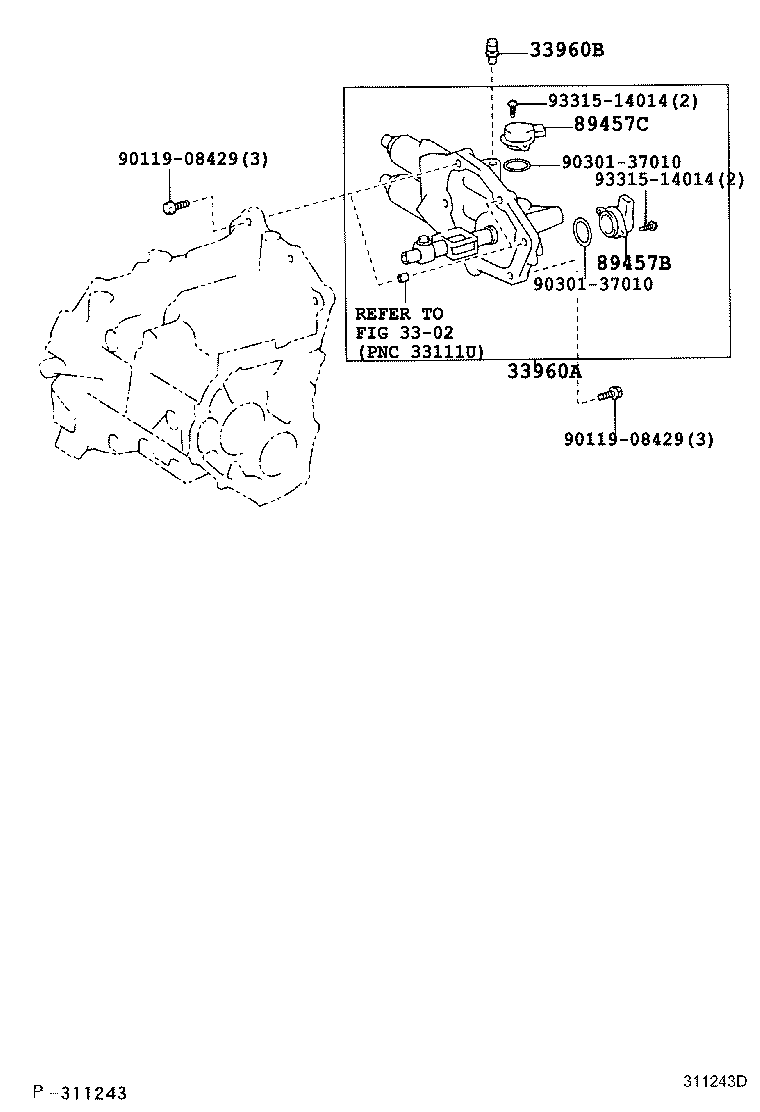

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33960A - ACTUATOR ASSY, SHIFT & SELECT | ||||
| 33960-64011 |
ZNR11..5FS |
1 | ||
| 33960-64012 |
ZNR11..5FS |
1 | ||
| 33960-64010 |
ZNR11..5FS |
1 | ||
| 33960B - BREATHER PLUG, SHIFT & SELECT ACTUATOR | ||||
| 90930-03133 |
ZNR11..5FS |
1 | ||
| 89457B - STROKE SENSOR, SHIFT | ||||
| 89457-52010 |
ZNR11..5FS |
1 | ||
| 89457C - STROKE SENSOR, SELECT | ||||
| 89457-52010 |
ZNR11..5FS |
1 | ||
| Common parts | ||||
| 90119-08429 | ||||
| 90301-37010 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 3302 | ||||
