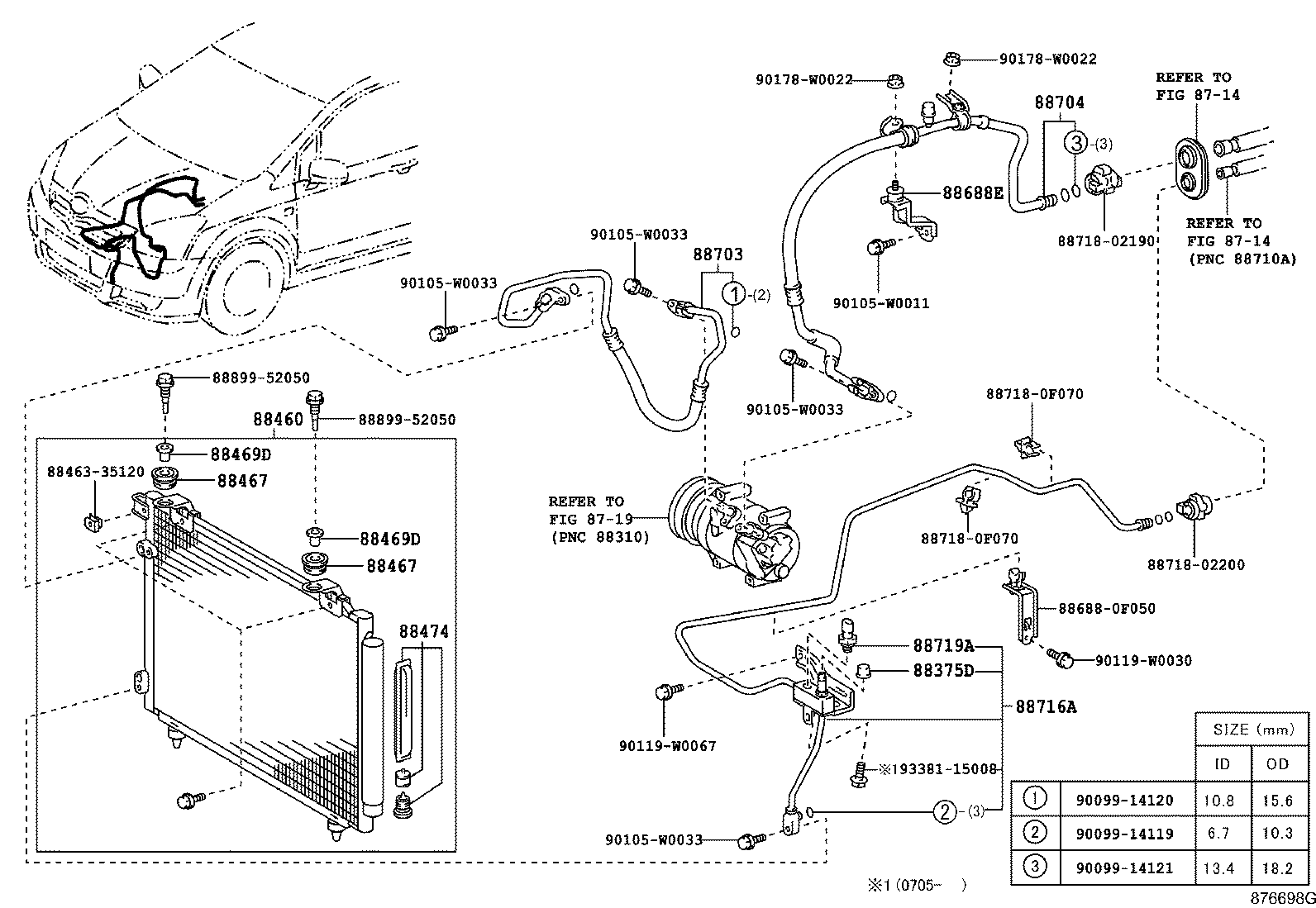

Toyota Corolla verso ZNR10 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	AUR10,CUR10,ZNR1#..SOL	02/2004 - 05/2007	1
88460 - CONDENSER ASSY, COOLER
88450-0F110	ZNR1#..LHD..SOL	02/2004 - 05/2007	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	ZNR1#..SOL	02/2004 - 05/2007	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	ZNR1#..SOL	02/2004 - 05/2007	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	ZNR1#..SOL	02/2004 - 05/2007	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	ZNR1#..SOL	02/2004 - 05/2007	2
88474 - DRYER, COOLER
88474-17010	AUR10,ZNR1#..SOL	02/2004 - 05/2007	1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-0F020	ZNR1#..SOL;AUR10..LHD..SOL	02/2004 - 05/2007	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0F020	ZNR1#..SOL	02/2004 - 01/2007	1
88703-0F021	ZNR1#..SOL	02/2007 - 05/2007	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0F030	ZNR1#..LHD..SOL	02/2004 - 01/2007	1
88704-0F031	ZNR1#..LHD..SOL	02/2007 - 05/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88706-0F151	ZNR1#..LHD..SOL	02/2007 - 05/2007	1
88706-0F150	ZNR1#..LHD..SOL	02/2004 - 01/2007	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	AUR10,CUR10,ZNR1#..SOL	02/2004 - 05/2007	1
Common parts
88463-35120
88688-0F050
88718-02190
88718-02200
88718-0F070
88899-52050
90099-14119
90099-14120
90099-14121
90105-W0011
90105-W0033
90119-W0030
90119-W0067
90178-W0022
93381-15008
Linked diagrams
8714
8719

ZNR10L-GWMEKW (2004)
