ZNR10L-GWMEKW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
May 2007
Engine
3ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )ZNR1#

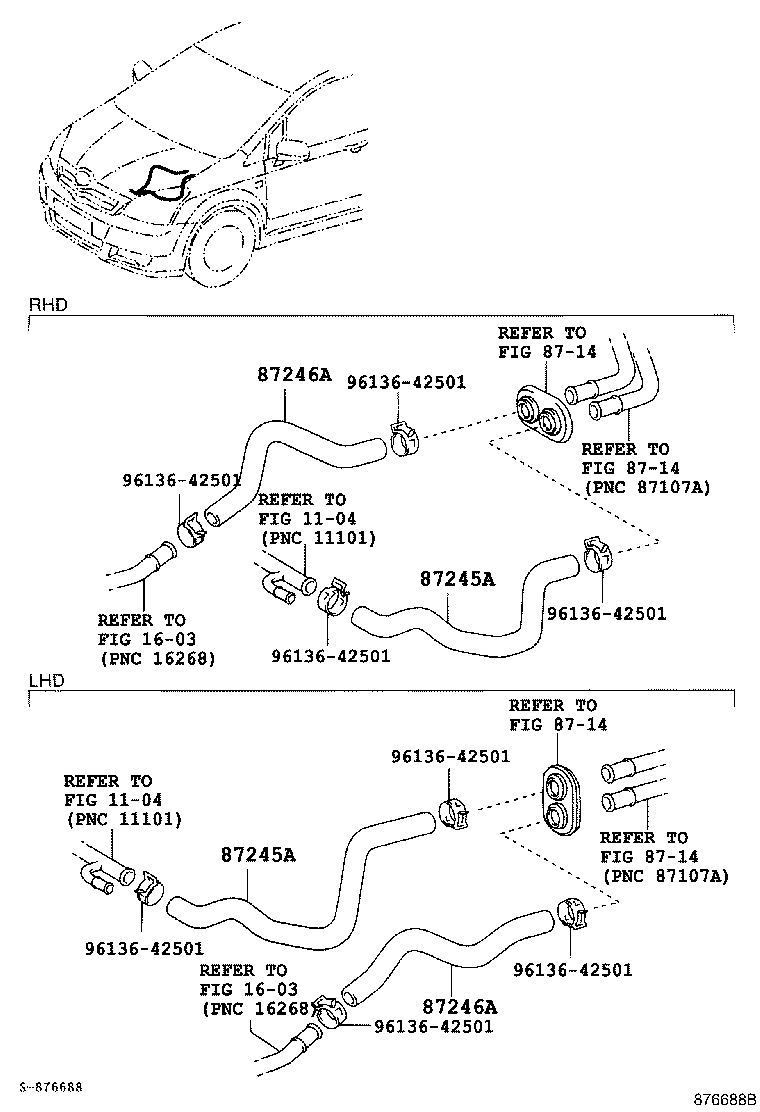

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-0F140 |
ZNR1#..LHD..5F |
1 | ||
| 87245-0F141 |
ZNR1#..LHD..5F |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-0F140 |
ZNR1#..LHD..5F |
1 | ||
| 87245-0F141 |
ZNR1#..LHD..5F |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-0F071 |
ZNR1#..LHD |
1 | ||
| 87245-0F070 |
ZNR1#..LHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-0F071 |
ZNR1#..LHD |
1 | ||
| 87245-0F070 |
ZNR1#..LHD |
1 | ||
| Common parts | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
