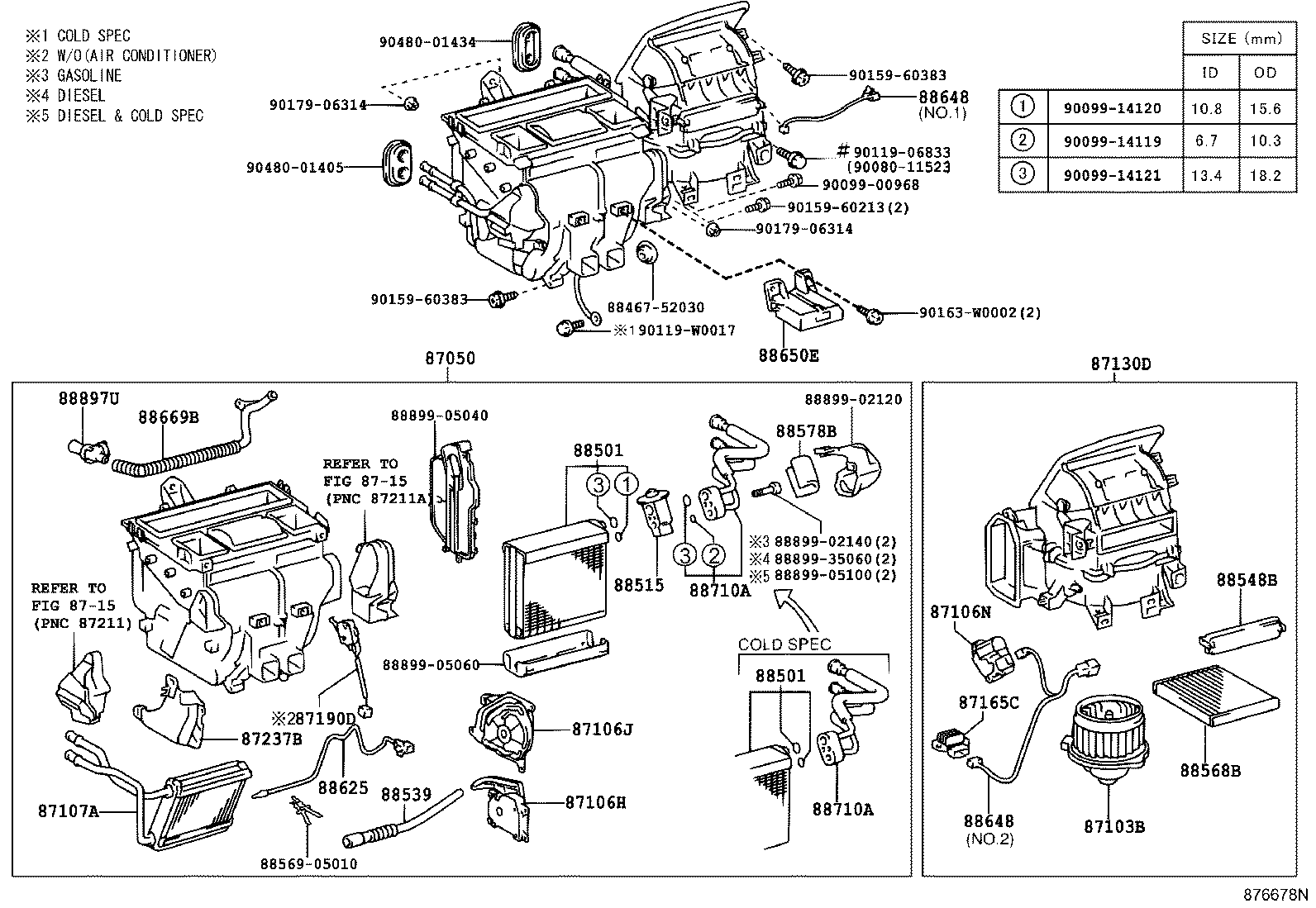

Toyota Corolla verso ZNR10 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0F050	AUR10,CUR10,ZNR1#..LHD..SOL..(DCR,HTWC)	02/2004 - 05/2007	1
87050-0F040	ZNR1#..LHD..SOL LUNA PACKAGE	08/2005 - 05/2007	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02080	AUR10,CUR10,ZNR1#..LHD	02/2004 - 05/2007	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-02030	AUR10,ZNR1#..SOL	02/2004 - 05/2007	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-02040	AUR10,CUR10,ZNR1#..SOL	02/2004 - 05/2007	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-02070	AUR10,CUR10,ZNR1#..LHD	02/2004 - 05/2007	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0F020	AUR10,CUR10,ZNR1#..LHD..(DCR,HTWC)	02/2004 - 05/2007	1
87130D - BLOWER ASSY
87130-0F040	AUR10,CUR10,ZNR1#..LHD..SOL	02/2004 - 10/2005	1
87130-0F030	ZNR1#..LHD..SOL LUNA PACKAGE	08/2005 - 05/2007	1
87130-0F041	AUR10,ZNR1#..LHD..SOL	11/2005 - 05/2007	1
87165C - CONTROL, BLOWER MOTOR
87165-13010	AUR10,CUR10,ZNR1#..SOL	02/2004 - 05/2007	1
87237B - COVER, HEATER PIPING
87237-0F020	AUR10,CUR10,ZNR1#..LHD	02/2004 - 05/2007	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-05080	AUR10,CUR10,ZNR1#..LHD..SOL	02/2004 - 05/2007	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-05080	AUR10,CUR10,ZNR1#..LHD..SOL	02/2004 - 05/2007	1
88515 - VALVE, COOLER EXPANSION
88515-21040	AUR10,ZNR1#..SOL	02/2004 - 05/2007	1
88515-21040	ZNR1#..SOL LUNA PACKAGE	11/2005 - 05/2007	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-02070	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	1
88548B - CASE, AIR FILTER
88548-02040	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	1
88568B - FILTER, AIR
88568-02030	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	AUR10,CUR10,ZNR1#..SOL	02/2004 - 05/2007	1
88625 - THERMISTOR, COOLER, NO.1
88625-52070	AUR10,CUR10,ZNR1#..LHD..SOL..(DCR,HTWC)	02/2004 - 05/2007	1
88625-02060	ZNR1#..LHD..SOL LUNA PACKAGE	08/2005 - 05/2007	1
88648 - WIRING, COOLER, NO.1
88648-0F130	AUR10,CUR10,ZNR1#..LHD..SOL NO.1	02/2004 - 05/2007	2
88648-0F140	AUR10,CUR10,ZNR1#..LHD..SOL NO.2	02/2004 - 05/2007	1
88648-0F160	AUR10,ZNR1#..LHD..SOL..(DCR,HTWC) LUNA PACKAGE	08/2005 - 05/2007	1
88648 - WIRING, COOLER, NO.1
88648-0F130	AUR10,CUR10,ZNR1#..LHD..SOL NO.1	02/2004 - 05/2007	2
88648-0F140	AUR10,CUR10,ZNR1#..LHD..SOL NO.2	02/2004 - 05/2007	1
88648-0F160	AUR10,ZNR1#..LHD..SOL..(DCR,HTWC) LUNA PACKAGE	08/2005 - 05/2007	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-0F030	AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE	08/2005 - 05/2007	1
88669B - HOSE, COOLER AIR
87233-0F030	AUR10,ZNR1#..LHD..SOL..(DCR,HTWC)	02/2004 - 05/2007	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-05380	AUR10,CUR10,ZNR1#..LHD..SOL	02/2004 - 05/2007	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-05380	AUR10,CUR10,ZNR1#..LHD..SOL	02/2004 - 05/2007	1
88897U - PIPE, ASPIRATOR
88897-02180	AUR10,ZNR1#..SOL	02/2004 - 05/2007	1
Common parts
88467-52030
88569-05010
88899-02120
88899-02140
88899-05040
88899-05060
88899-05100
88899-35060
90080-11523
90099-00968
90099-14119
90099-14120
90099-14121
90119-06833
90119-W0017
90159-60213
90159-60383
90163-W0002
90179-06314
90480-01405
90480-01434
Linked diagrams
8715

ZNR10L-GWMEKW (2004)

(0402-0705)LHD..SOL
