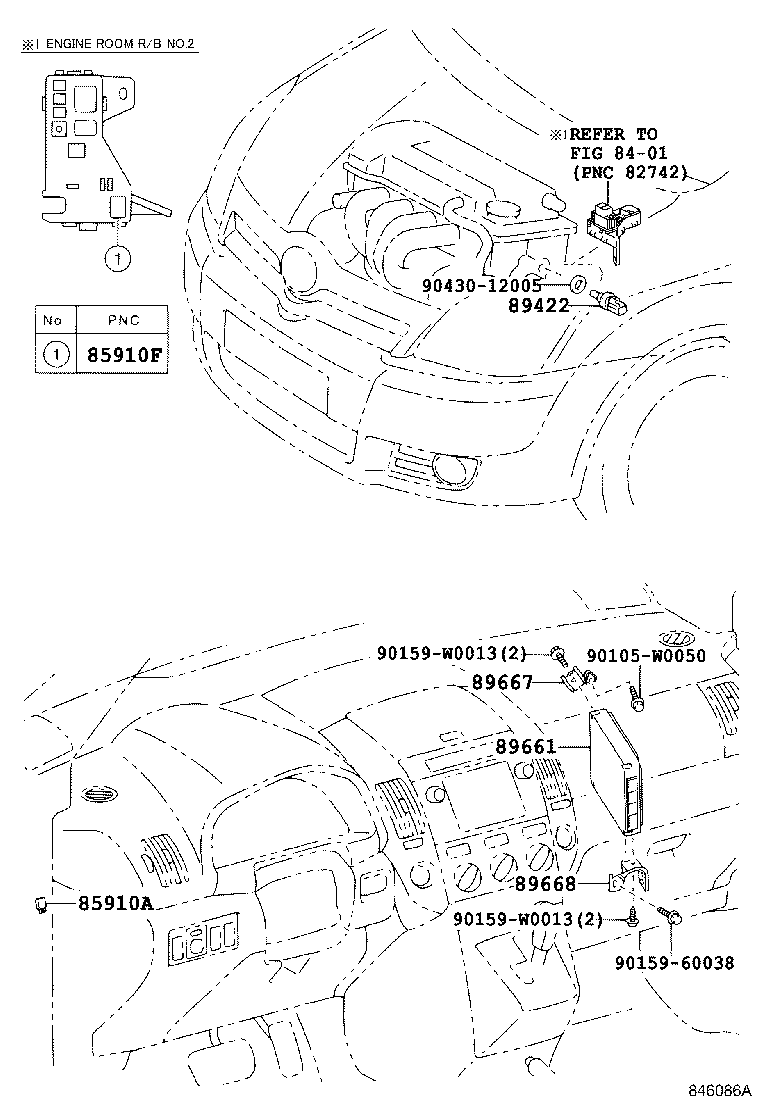

Toyota Corolla verso ZNR10 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87019	ZNR1#	02/2004 - 05/2007	1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87019	ZNR1#	02/2004 - 05/2007	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	ZNR1#	02/2004 - 05/2007	1
89661 - COMPUTER, ENGINE CONTROL
89661-0F080	ZNR10 EXH.EMISSION CONTROL-ECE STEP4	02/2004 - 05/2007	1
89661-0F070	ZNR10	02/2004 - 05/2007	1
89661-0F080	ZNR10 PART NUMBER LABEL=89661-0F080	02/2004 - 05/2007	1
89661-0F070	ZNR10 PART NUMBER LABEL=89661-0F070	02/2004 - 05/2007	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0F010	ZNR1#..LHD	02/2004 - 05/2007	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0F030	ZNR1#..LHD	02/2004 - 05/2007	1
Common parts
90105-W0050
90159-60038
90159-W0013
90430-12005
Linked diagrams
8401

ZNR10L-GWMEKW (2004)
