ZNR10L-GWMEKW (2004)

Toyota Corolla Verso

Production Feb 2004 - May 2007
Engine 3ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )ZNR1#..LHD

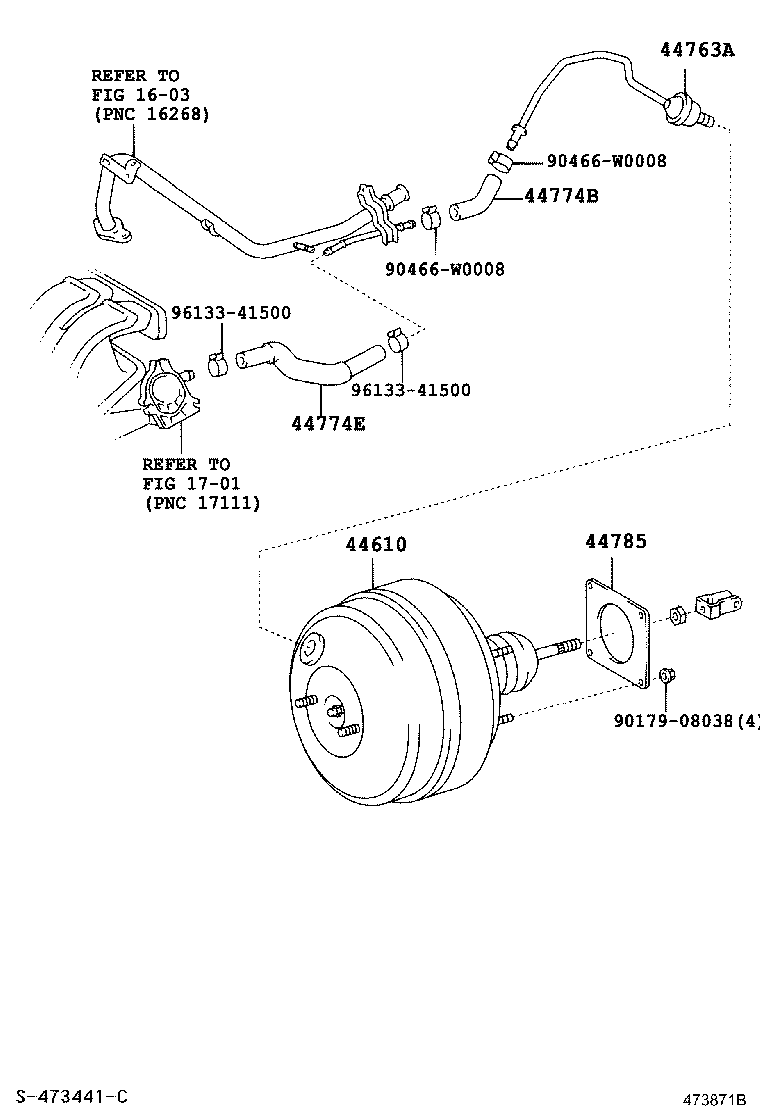

Click highlighted areas on diagram

diagram 1603 1701 44610 44763A 44774B 44774E 44785 9017908038 90466W0008 90466W0008 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-05090

AUR10,CUR10,ZNR1#..LHD

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-05010

ZNR1#..LHD

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-02040

ZNR1#..LHD

 1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-12470

ZNR10

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ZNR1#

 1
44785-20020

CUR10,ZNR1#

 1
Common parts
90179-08038
90466-W0008
96133-41500
Linked diagrams
1603
1701
