Toyota Corolla verso ZNR10 FRONT AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002	ZNR1#	02/2004 - 05/2007	1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016	ZNR1#..5F	02/2004 - 08/2005	1
90311-25028	ZNR1#..5F	02/2007 - 05/2007	1
90311-25028	ZNR1#..5F	01/2006 - 02/2007	1
90311-25028	ZNR1#..5F	08/2005 - 01/2006	1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35057	ZNR1#..5F	01/2006 - 02/2007	1
90311-35057	ZNR1#..5F	08/2005 - 01/2006	1
90311-35051	ZNR1#..5F	02/2004 - 08/2005	1
90311-35057	ZNR1#..5F	02/2007 - 05/2007	1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-05010	ZNR1#..5F	02/2004 - 01/2006	1
31115-02030	ZNR1#..5F	01/2006 - 05/2007	1
33449 - MAGNET, TRANSMISSION
33449-12020	ZNR1#	02/2004 - 05/2007	1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-20160	ZNR1# N=35	02/2004 - 05/2007	1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-0F010	ZNR1#..5F (L)	02/2004 - 05/2007	1
41221-20350	ZNR1# (J)	02/2004 - 05/2007	1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040	ZNR1#	02/2004 - 05/2007	8
41311 - CASE, FRONT DIFFERENTIAL
41301-05020	ZNR1#..5F	02/2004 - 05/2007	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90080-36143	ZNR1#..5F	02/2004 - 05/2007	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90080-36146	ZNR1#..5F	02/2004 - 05/2007	1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003	ZNR1# T=2.1	02/2004 - 05/2007	1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41022	ZNR1# T=2.50,MARK JJ	02/2004 - 05/2007	1
90564-41014	ZNR1# T=2.10,MARK AA	02/2004 - 05/2007	1
90564-41018	ZNR1# T=2.30,MARK EE	02/2004 - 05/2007	1
90564-41021	ZNR1# T=2.45,MARK HH	02/2004 - 05/2007	1
90564-41016	ZNR1# T=2.20,MARK CC	02/2004 - 05/2007	1
90564-41017	ZNR1# T=2.25,MARK DD	02/2004 - 05/2007	1
90564-41020	ZNR1# T=2.40,MARK GG	02/2004 - 05/2007	1
90564-41024	ZNR1# T=2.60,MARK LL	02/2004 - 05/2007	1
90564-41028	ZNR1# T=2.80,MARK QQ	02/2004 - 05/2007	1
90564-41032	ZNR1# T=3.00,MARK UU	02/2004 - 05/2007	1
90564-41029	ZNR1# T=2.85,MARK RR	02/2004 - 05/2007	1
90564-41019	ZNR1# T=2.35,MARK FF	02/2004 - 05/2007	1
90564-41026	ZNR1# T=2.70,MARK NN	02/2004 - 05/2007	1
90564-41030	ZNR1# T=2.90,MARK SS	02/2004 - 05/2007	1
90564-41015	ZNR1# T=2.15,MARK BB	02/2004 - 05/2007	1
90564-41023	ZNR1# T=2.55,MARK KK	02/2004 - 05/2007	1
90564-41027	ZNR1# T=2.75,MARK PP	02/2004 - 05/2007	1
90564-41025	ZNR1# T=2.65,MARK MM	02/2004 - 05/2007	1
90564-41031	ZNR1# T=2.95,MARK TT	02/2004 - 05/2007	1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010	ZNR1#	02/2004 - 05/2007	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010	ZNR1#	02/2004 - 05/2007	2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011	ZNR1#	02/2004 - 05/2007	2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011	ZNR1#	02/2004 - 05/2007	2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020	ZNR1#	02/2004 - 05/2007	1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010	ZNR1#	02/2004 - 05/2007	2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010	ZNR1#	02/2004 - 05/2007	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020	ZNR1# T=1.00,MARK 02	02/2004 - 05/2007	2
41361-22030	ZNR1# T=1.10,MARK 03	02/2004 - 05/2007	2
41361-22140	ZNR1# T=0.95,MARK 14	02/2004 - 05/2007	2
41361-22150	ZNR1# T=1.05,MARK 15	02/2004 - 05/2007	2
41361-22160	ZNR1# T=1.15,MARK 16	02/2004 - 05/2007	2
41361-22040	ZNR1# T=1.20,MARK 04	02/2004 - 05/2007	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020	ZNR1# T=1.00,MARK 02	02/2004 - 05/2007	2
41361-22030	ZNR1# T=1.10,MARK 03	02/2004 - 05/2007	2
41361-22140	ZNR1# T=0.95,MARK 14	02/2004 - 05/2007	2
41361-22150	ZNR1# T=1.05,MARK 15	02/2004 - 05/2007	2
41361-22160	ZNR1# T=1.15,MARK 16	02/2004 - 05/2007	2
41361-22040	ZNR1# T=1.20,MARK 04	02/2004 - 05/2007	2

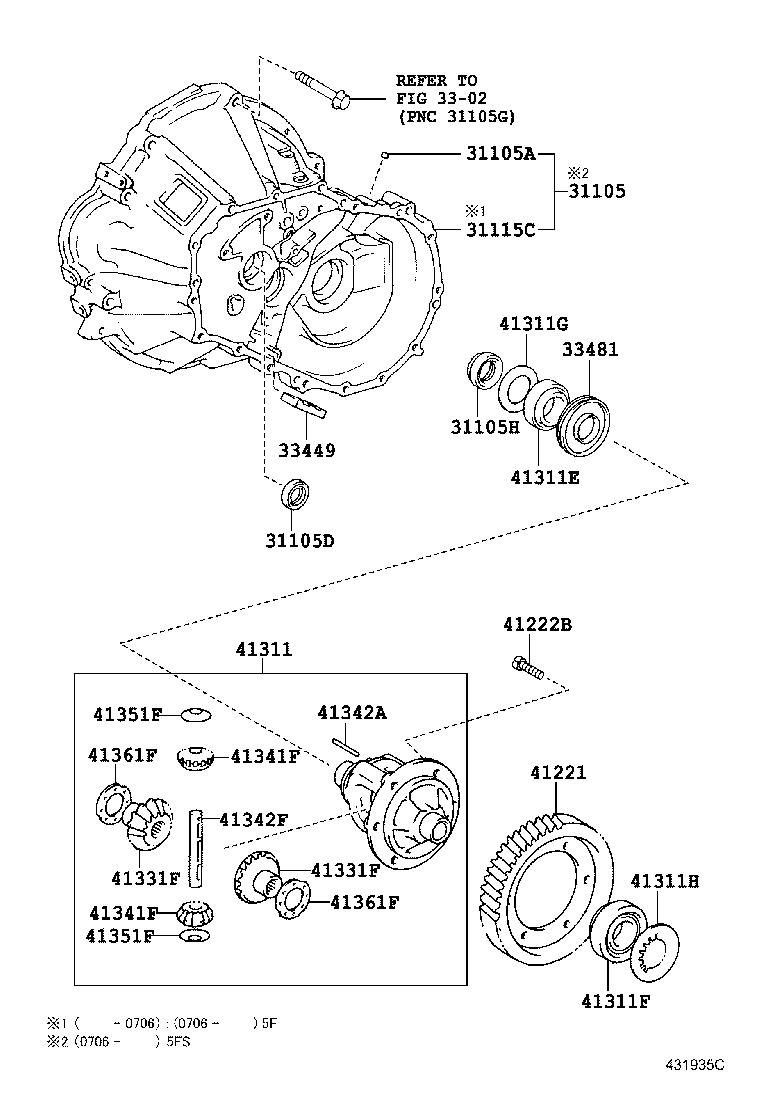

Linked diagrams
3302

ZNR10L-GWMEKW (2004)

(0402- )ZNR1#
