ZNR10L-GWMEKW (2004)

Toyota Corolla Verso

Production Feb 2004 - May 2007
Engine 3ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )ZNR1#..5F

Click highlighted areas on diagram

C251

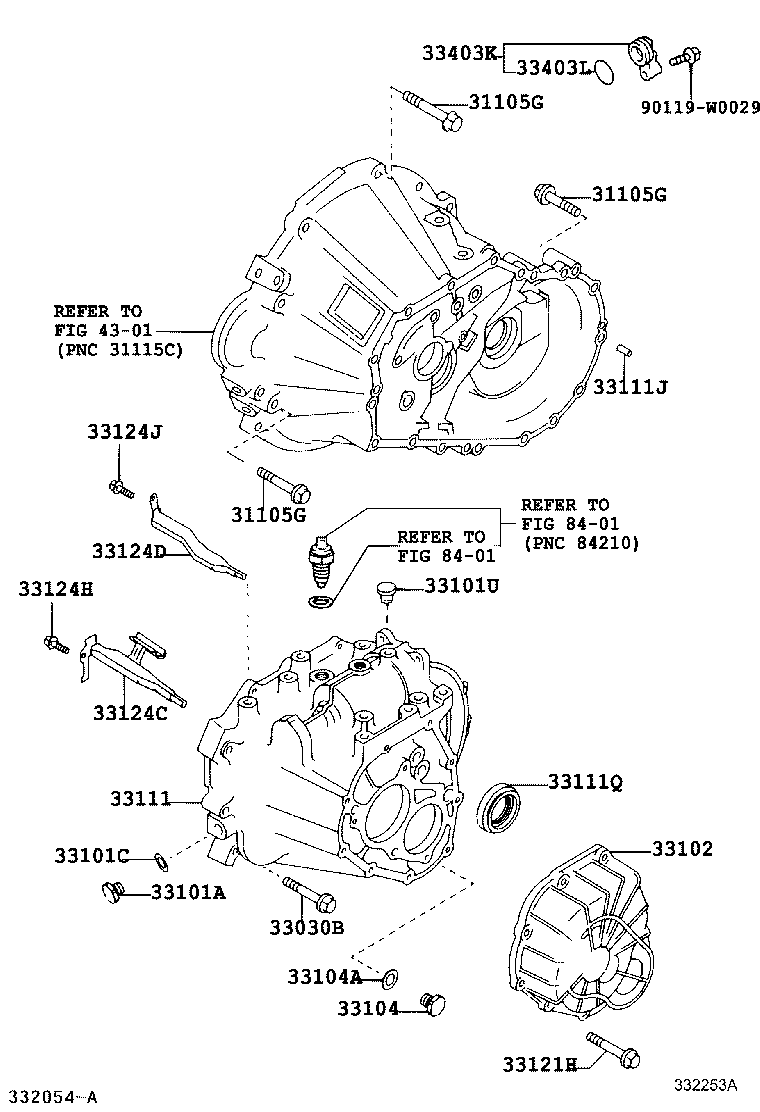

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101U 33102 33104 33104A 33111 33111J 33111Q 33121H 33124C 33124D 33124H 33124J 33403K 33403L 4301 8401 8401 90119W0029
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0080

ZNR1#

*12-1.25PX55-30

 2
90119-W0049

ZNR1#

*10-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0080

ZNR1#

*12-1.25PX55-30

 2
90119-W0049

ZNR1#

*10-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0080

ZNR1#

*12-1.25PX55-30

 2
90119-W0049

ZNR1#

*10-1.25PX55-30

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

ZNR1#..5F

*8-1.25PX45-27.5

 3
90105-08353

ZNR1#

*8-1.25PX50-30

 13
90105-08430

ZNR1#..5F

*8-1.25PX45-27.5

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

ZNR1#..5F

 1
90341-18033

ZNR1#..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ZNR1#..5F

 1
90430-W0001

ZNR1#..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03133

ZNR1#..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-0D010

ZNR1#..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

ZNR1#..5F

 1
90341-18033

ZNR1#..5F

 1
90341-18006

ZNR1#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

ZNR1#..5F

 1
90430-W0001

ZNR1#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-05020

ZNR1#..5F

 1
33111-05010

ZNR1#..5F

 1
33111-05020

ZNR1#..5F

 1
33111-05021

ZNR1#..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AUR10,CUR10,ZNR1#

L=23,OD=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-35044

ZNR1#

 1
90311-35058

ZNR1#

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08782

ZNR1#..5F

 9
91611-60835

ZNR1#..5F

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

ZNR1#

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

ZNR1#

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820

ZNR1#

 1
33124J - BOLT, W/WASHER
91611-G0820

ZNR1#

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

ZNR1#

 1
33403L - RING, O
96711-24030

ZNR1#

 1
Common parts
90119-W0029
Linked diagrams
4301
8401
