ZNR10L-GWMEKW (2004)

Toyota Corolla Verso

Production Feb 2004 - May 2007
Engine 3ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

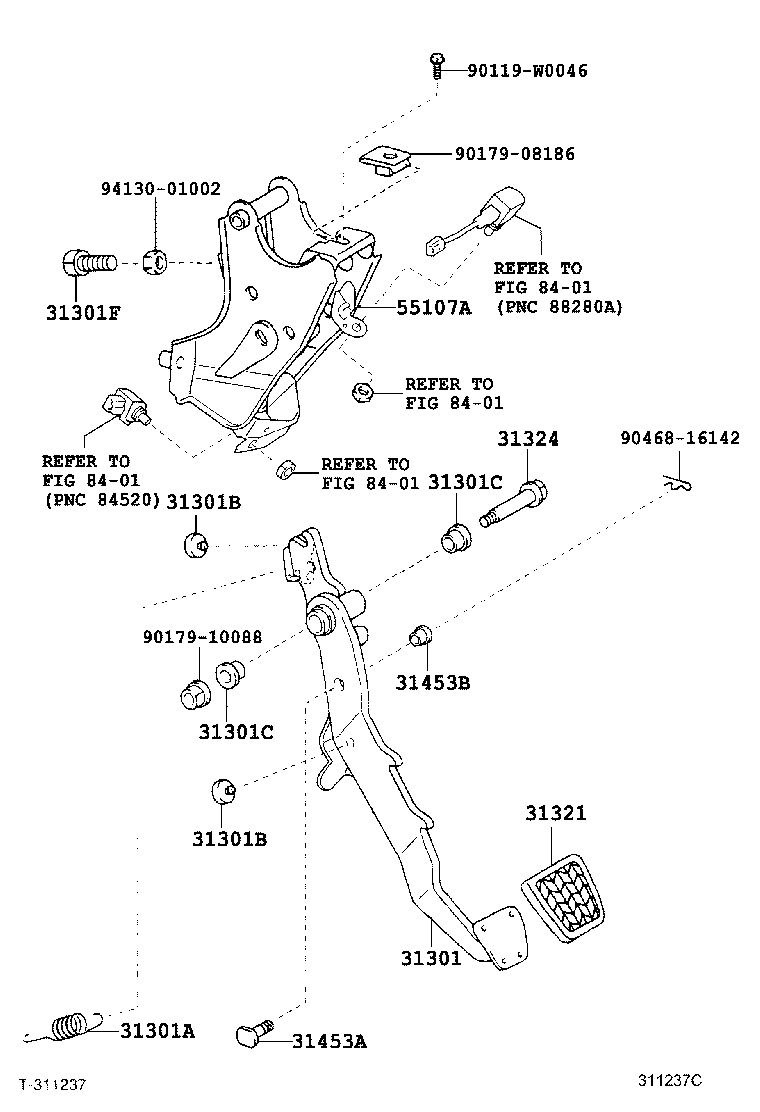

ILLUST NO. 1 OF 2(0402- )ZNR1#..LHD..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31321 31324 31453A 31453B 55107A 8401 8401 8401 8401 90119W0046 9017908186 9017910088 9046816142 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0F010

ZNR1#..LHD..5F..SOL

LUNA PACKAGE

 1
31301-0F050

ZNR1#..LHD..5F..SOL

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

ZNR1#..LHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AUR10,ZNR1#..5F,6F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AUR10,ZNR1#..5F,6F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AUR10,ZNR1#..5F,6F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AUR10,ZNR1#..5F,6F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AUR10,ZNR1#..5F,6F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

AUR10,ZNR1#..5F,6F

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

AUR10,ZNR1#..5F,6F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

AUR10,ZNR1#..5F,6F

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AUR10,ZNR1#..5F,6F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0F020

ZNR1#..LHD..5F..SOL

 1
55107-0F010

ZNR1#..LHD..5F..SOL

LUNA PACKAGE

 1
Common parts
90119-W0046
90179-08186
90179-10088
90468-16142
94130-01002
Linked diagrams
8401

ILLUST NO. 2 OF 2(0402- )ZNR1#..5F

Click highlighted areas on diagram

diagram 3103 3103 3105 3105 31481 31481 31481A 31482 31484 31484A 31484C 4708 4708 7701 7701 9008011524 9008011529 9011910669 9046108652 9046108652 9046109005 9046110781 9046808035 9046808040 9165140616 9165141016 9165160614
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05120

ZNR1#..LHD..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05120

ZNR1#..LHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02D20

ZNR1#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02160

ZNR1#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12430

ZNR1#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-05010

ZNR1#..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460

AUR10,ZNR1#..5F,6F

 1
Common parts
90080-11524
90080-11529
90119-10669
90461-08652
90461-09005
90461-10781
90468-08035
90468-08040
91651-40616
91651-41016
91651-60614
Linked diagrams
3103
3105
4708
7701
