ZNR10L-GWMEKW (2004)

Toyota Corolla Verso

Production Feb 2004 - May 2007
Engine 3ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402-0701)1ZZFE,3ZZFE

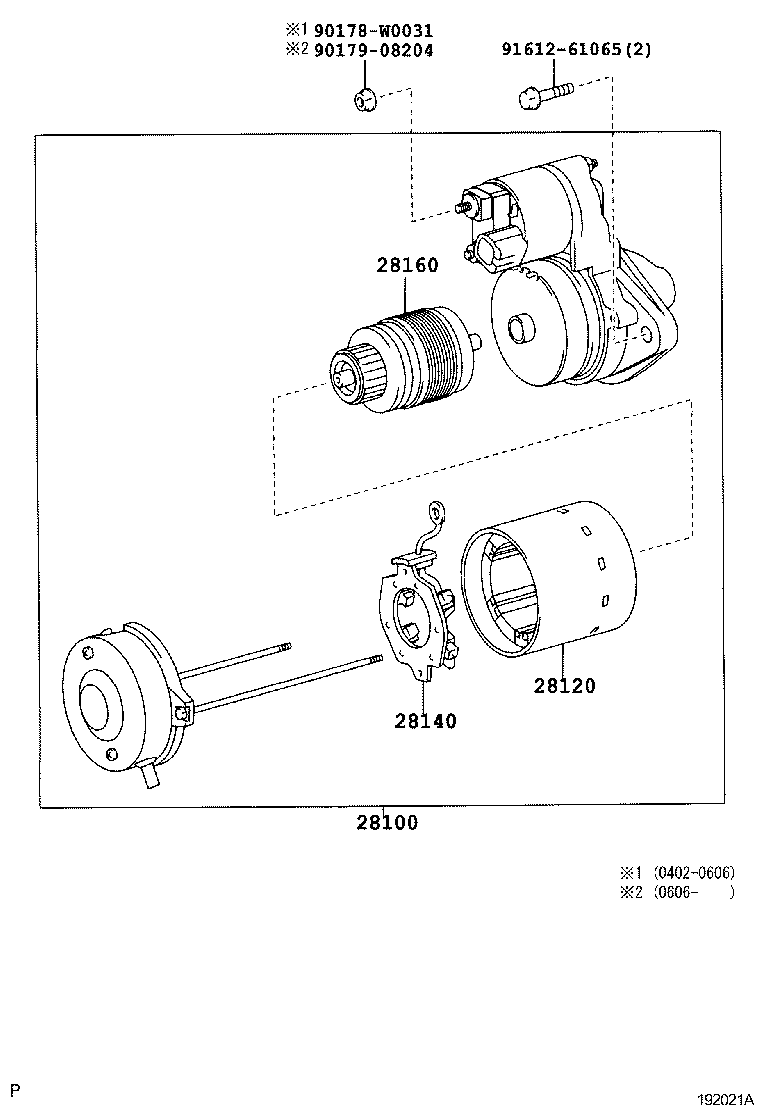

Click highlighted areas on diagram

12V 1.3KW

diagram 28100 28120 28140 28160 90178W0031 9017908204 9161261065
Part # Description Qty Price
28100 - STARTER ASSY
28100-0D090

1ZZFE,3ZZFE..ZNR1#

12V 1.3KW

 1
28100-0D180

1ZZFE,3ZZFE..ZNR1#

12V 1.3KW

 1
28120 - YOKE ASSY, STARTER
28120-0D090

1ZZFE,3ZZFE..ZNR1#

 1
28120-0D180

1ZZFE,3ZZFE..ZNR1#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050

1ZZFE,3ZZFE..ZNR1#

 1
28140-0D090

1ZZFE,3ZZFE..ZNR1#

 1
28160 - ARMATURE ASSY, STARTER
28160-0D090

1ZZFE,3ZZFE..ZNR1#

 1
28160-0D180

1ZZFE,3ZZFE..ZNR1#

 1
Common parts
90178-W0031
90179-08204
91612-61065

(0701- )1ZZFE,3ZZFE

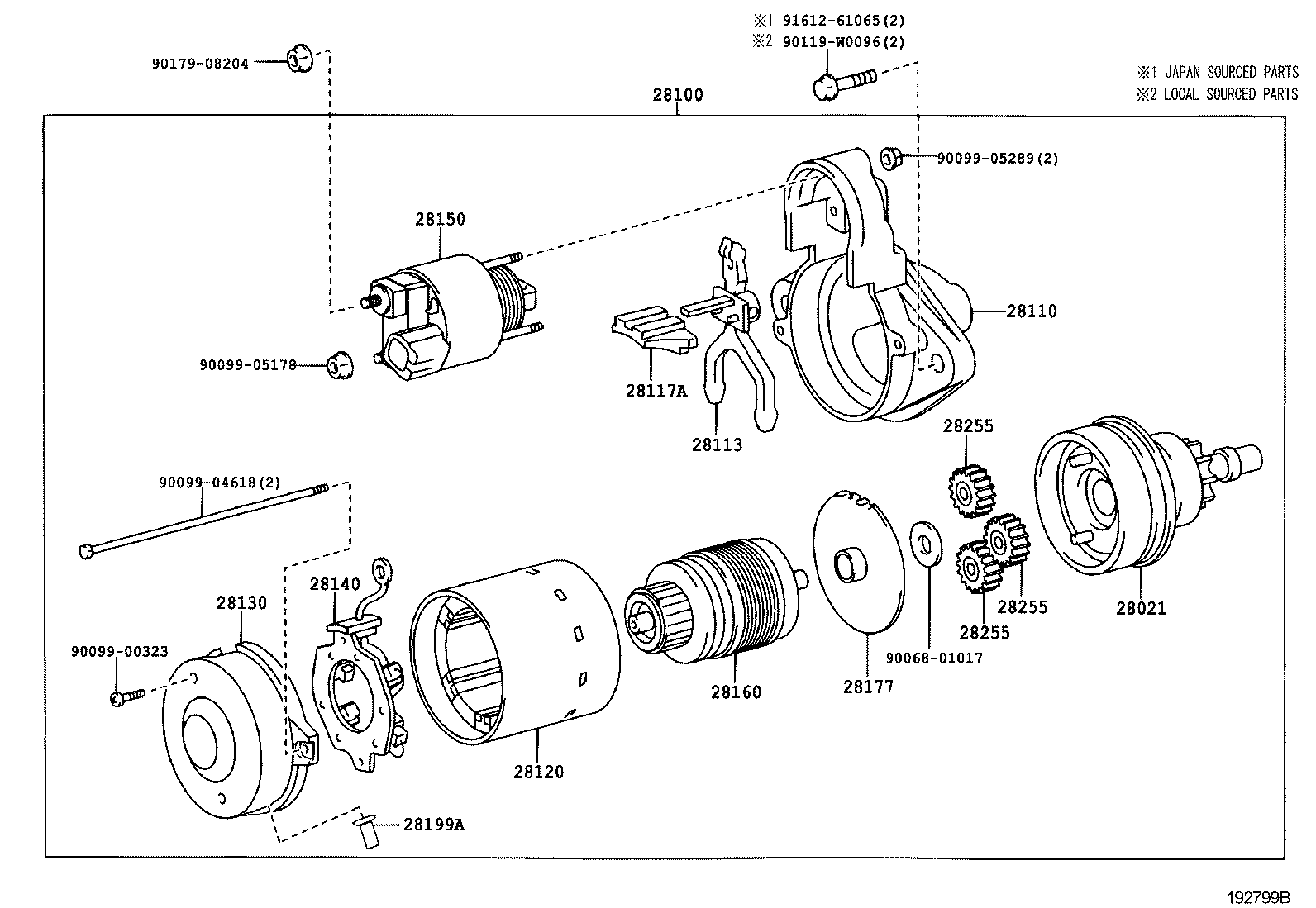

Click highlighted areas on diagram

12V 1.3KW

diagram 28021 28100 28110 28113 28117A 28120 28130 28140 28150 28160 28177 28199A 28255 28255 28255 9006801017 9009900323 9009904618 9009905178 9009905289 90119W0096 9017908204 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-37050

1ZZFE,3ZZFE..ZNR1#

 1
28100 - STARTER ASSY
28100-0D090

1ZZFE,3ZZFE..ZNR1#

12V 1.3KW

 1
28100-0D180

1ZZFE,3ZZFE..ZNR1#

12V 1.3KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0D180

1ZZFE,3ZZFE..ZNR1#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-37050

1ZZFE,3ZZFE..ZNR1#

 1
28117A - SEAL, RUBBER
28117-37050

1ZZFE,3ZZFE..ZNR1#

 1
28120 - YOKE ASSY, STARTER
28120-0D090

1ZZFE,3ZZFE..ZNR1#

 1
28120-0D180

1ZZFE,3ZZFE..ZNR1#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37050

1ZZFE,3ZZFE..ZNR1#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050

1ZZFE,3ZZFE..ZNR1#

 1
28140-0D090

1ZZFE,3ZZFE..ZNR1#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-37050

1ZZFE,3ZZFE..ZNR1#

 1
28160 - ARMATURE ASSY, STARTER
28160-0D090

1ZZFE,3ZZFE..ZNR1#

 1
28160-0D180

1ZZFE,3ZZFE..ZNR1#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-37050

1ZZFE,3ZZFE..ZNR1#

 1
28199A - PROTECTOR, DUST STARTER
28199-0D180

1ZZFE,3ZZFE..ZNR1#

 1
28255 - GEAR, PLANET
28255-37050

1ZZFE,3ZZFE..ZNR1#

 3
28255 - GEAR, PLANET
28255-37050

1ZZFE,3ZZFE..ZNR1#

 3
28255 - GEAR, PLANET
28255-37050

1ZZFE,3ZZFE..ZNR1#

 3
Common parts
90068-01017
90099-00323
90099-04618
90099-05178
90099-05289
90119-W0096
90179-08204
91612-61065
