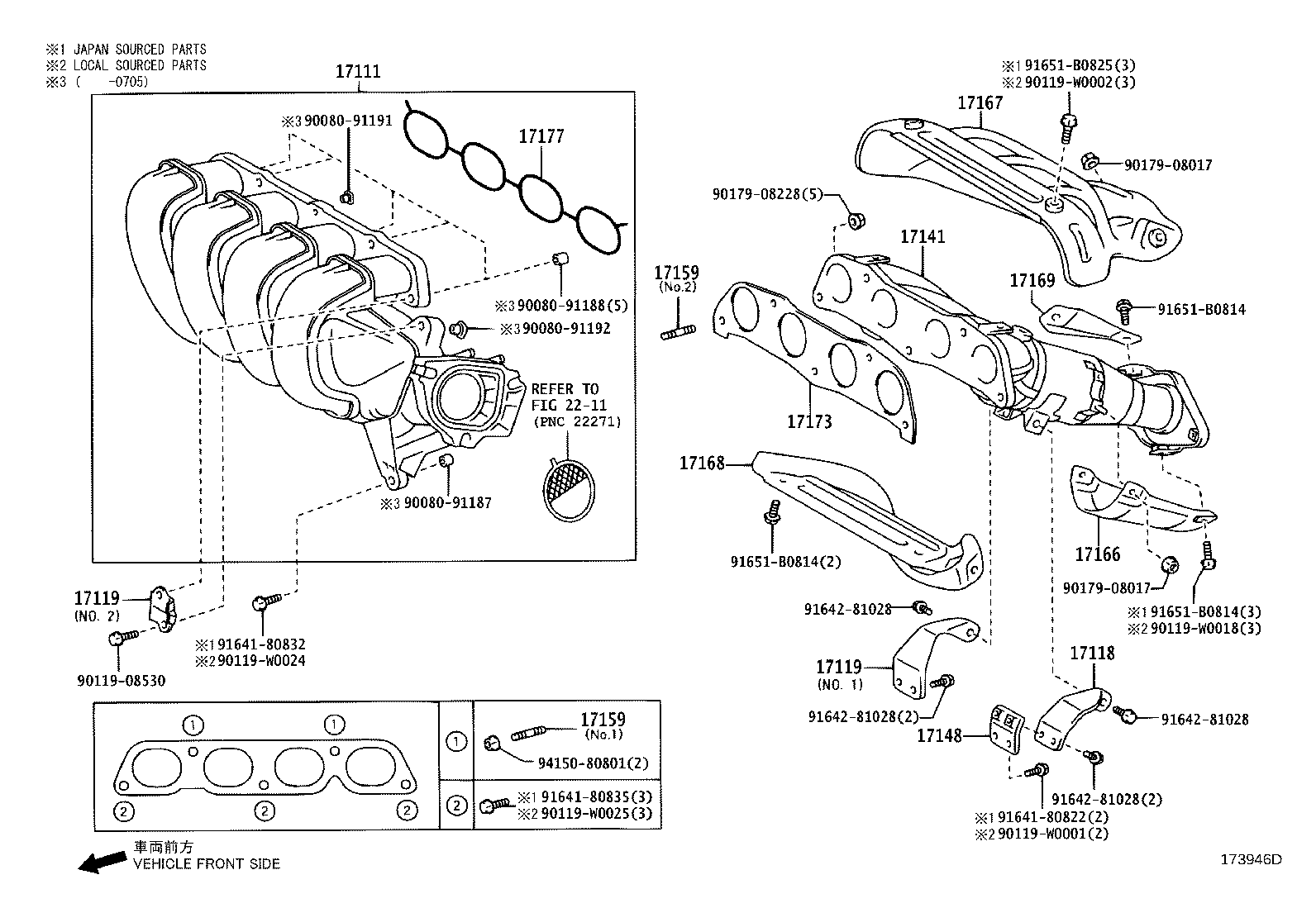

Toyota Corolla verso ZNR10 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-0D070	3ZZFE..ZNR10	02/2004 - 05/2007	1
17118 - STAY, MANIFOLD
17118-22090	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2007	1
17119 - STAY, MANIFOLD, NO.2
17119-22070	1ZZFE,3ZZFE..ZNR1# NO.1	02/2004 - 05/2007	1
17139-22050	3ZZFE..ZNR10 NO.2	02/2004 - 05/2007	1
17119 - STAY, MANIFOLD, NO.2
17119-22070	1ZZFE,3ZZFE..ZNR1# NO.1	02/2004 - 05/2007	1
17139-22050	3ZZFE..ZNR10 NO.2	02/2004 - 05/2007	1
17141 - MANIFOLD, EXHAUST
17104-0D121	1ZZFE,3ZZFE..ZNR1# *114=TOYOTA/ZZ005/Y	02/2004 - 05/2007	1
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148-22030	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2007	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1ZZFE,3ZZFE..ZNR1# NO.2	02/2004 - 05/2007	2
90126-08043	1ZZFE,3ZZFE..ZNR1# NO.1	02/2004 - 05/2007	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1ZZFE,3ZZFE..ZNR1# NO.2	02/2004 - 05/2007	2
90126-08043	1ZZFE,3ZZFE..ZNR1# NO.1	02/2004 - 05/2007	5
17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4
17166-22010	1ZZFE,3ZZFE..ZNR1#	02/2004 - 07/2005	1
17166-22011	1ZZFE,3ZZFE..ZNR1#	07/2005 - 05/2007	1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0D052	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2007	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22110	1ZZFE,3ZZFE..ZNR1# (J)	02/2004 - 05/2007	1
17168-0D041	1ZZFE,3ZZFE..ZNR1# (L)	02/2004 - 05/2007	1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-0D010	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2007	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-22010	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2007	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-0D030	3ZZFE..ZNR10 (L)	02/2004 - 05/2007	1
17171-22030	3ZZFE..ZNR10 (J)	02/2004 - 05/2007	1
Common parts
90080-91187
90080-91188
90080-91191
90080-91192
90119-08530
90119-W0001
90119-W0002
90119-W0018
90119-W0024
90119-W0025
90179-08017
90179-08228
91641-80822
91641-80832
91641-80835
91642-81028
91651-B0814
91651-B0825
94150-80801
Linked diagrams
2211

ZNR10L-GWMEKW (2004)

(0402- )3ZZFE
